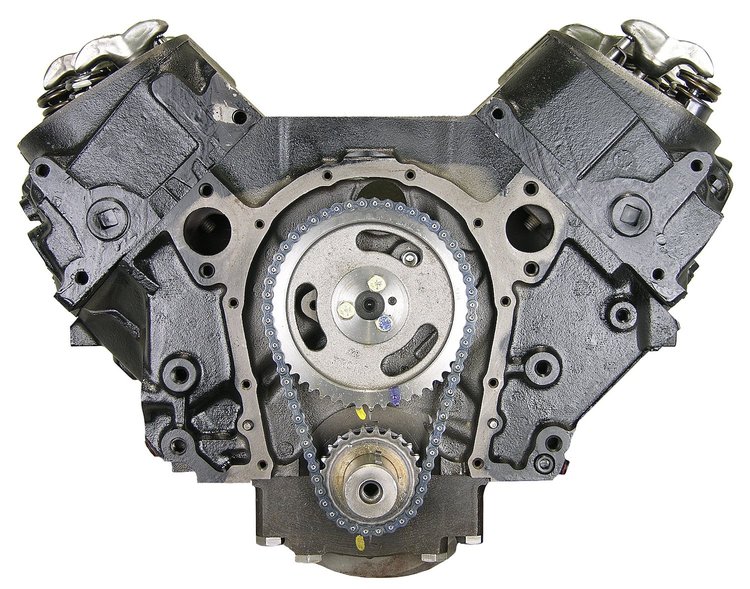

Remanufactured Crate Engine for Marine Applications with 1973-1990 Big Block Chevy 454ci/7.4L
Product Discontinued
ATK ENGINESPART NUMBER: 059-DM25

Remanufactured Crate Engine for Marine Applications with 1973-1990 Big Block Chevy 454ci/7.4L

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevrolet
    Remanufactured Marine Crate Engine
  • 1973-1990 V8 454ci/7.4L
  • Mark IV Big Block Chevy
  • Standard Rotation
  • 330hp Rating

    ATK Core Return Process
    JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

    Please CLICK HERE for ATK Core Return Process

    Notes:

    • Block Cast #: 959, 445, 286, 775, 289
    • Standard rotation
    • 2 bolt main
    • 10 bolt timing cover
    • Round intake port
    • 2 piece rear main seal

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first 600 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. Check the engine oil and coolant levels daily.

    At 600 Miles change the engine oil and filter using conventional (non-synthetic) oil. Check fuel and ignition settings; adjust valves (where applicable).

    After the first 5,000 of service synthetic engine oil may be used. Follow your vehicle owner’s manual for service intervals.

    Please CLICK HERE for ATK Warranty

Part TypeEngine
BrandATK ENGINES
Package Height35.75
Package Width38.0
Package Length43.0
Weight735.0 PG
Part CategoryPerformance Parts
QuantitySold individually
Vendor Part NumberDM25
Package Qty1
Package TypeEA
