![Remanufactured 6.0L LQ4 V8 High Performance Long Block Engine 505 HP [Hypereutectic 10:1]](https://www.jegs.com/images/mini_750/0/059/059-hp109.jpg)
Vehicle Info NeededATK ENGINESPART NUMBER: 059-HP109

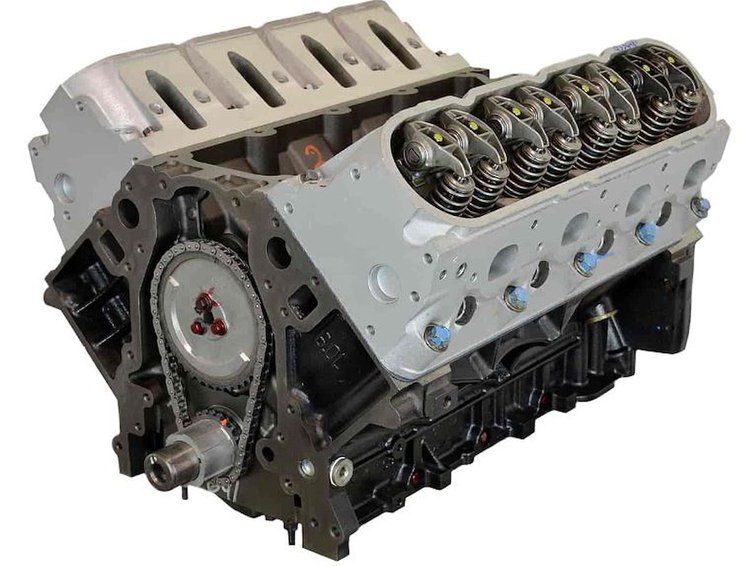

Remanufactured 6.0L LQ4 V8 High Performance Long Block Engine 505 HP [Hypereutectic 10:1]
$4,99900
Core Charge: $56000Truck Freight
Ships Today
Lowest Price GuaranteeHigh Performance LS Long Block EngineFits GM LQ4 6.0L Iron Block Applications 371 cid V8, 4.040 in. Bore x 3.622 in. Stroke 505 HP and 480 ft.-lbs. 10:1 Compression, Hypereutectic Pistons Aluminum Cathedral Port Heads Sold Individually
A high performance LS long block built on the iron LQ4 block for builders who want real power without giving up bottom-end durability. It pairs a custom hydraulic roller grind with OE cathedral port aluminum heads and 10:1 hypereutectic pistons, and it is intended for a tuned application, not a stock calibration.
ATK Engines HP109 High Performance Long Block Engine Features:
- Rated 505 HP and 480 ft.-lbs. of torque.
- OE LQ4 6.0L iron block, bored up to 4.040 in. with a 3.622 in. stroke.
- Hypereutectic pistons at 10:1 compression with moly rings.
- OE cathedral port aluminum heads, 71cc chamber and 210cc intake runner.
- Custom performance hydraulic roller camshaft with 1.7 ratio rocker arms.
- ECM tuning is required. 91 octane or higher and a 1800+ stall converter are recommended.
Part TypeEngine
BrandATK ENGINES
Package Height25.0
Package Width31.0
Package Length32.0
Weight430.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Engine Block MaterialCast Iron
QuantitySold Individually
Engine Assembly StyleLong Block
Bore Diameter4.040 in
Engine Manufacturer CodeLQ4
Compression Ratio10:1
Fuel TypeGas
Combustion Chamber Volume71 cc
Cylinder Quantity8
Maximum Torque (Ft-Lb)480
Horsepower505
Intake Runner Volume210 cc
Piston MaterialHypereutectic
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Engine Displacement371 cid
Engine Stroke3.622 in
Camshaft TypeOHV
Vendor Part NumberHP109
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
