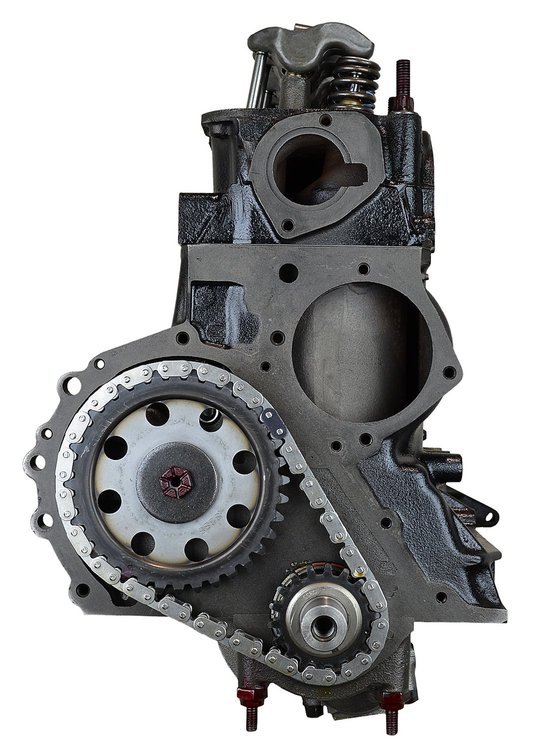

HP24 High Performance Crate Engine Jeep L6 4.7L / 205HP / 280TQ
InfoVehicle Info Needed
ATK ENGINESPART NUMBER: 059-HP24

HP24 High Performance Crate Engine Jeep L6 4.7L / 205HP / 280TQ

$3,87900
Core Charge: $31000
Truck Freight
ShippingShips on 01/28/2027
Lowest PriceLowest Price Guarantee

Items You Need

Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90
HP-2004 Performance Gold Oil Filter

K&N

HP-2004 Performance Gold Oil Filter

Part Number : 599-HP-2004
$1799
Platinum Spark Plug

AUTOLITE

Platinum Spark Plug

Part Number : 417-AP985
$417$4.99
You Save$0.82

1991-1998 Jeeps
High Performance Crate Engine
  • Jeep L6 4.7L / 205HP / 280TQ
  • 1991-1997 All Jeep Models Vin "S"
  • 1998 Cherokee
  • 1998 Wrangler
  • Not for 1998 Grand Cherokee vin "S"
  • 4.0L Stroker
  • Base Engine

    ATK Core Return Process
    JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

    Please CLICK HERE for ATK Core Return Process

    NOTE:

    • Core return can be any Jeep 242ci/4.0L engine

    Engine Info

      • Exhaust: Headers/Performance exhaust
      • Firing Order: 153624
      • Octane: 91+
      • Oil: 10W30 (Conventional / Non Synthetic) with zinc additive for first 3000 miles
      • Oil Filter: Wix or K&N
      • Spark Plug Gap: .035"
      • Stall Converter: Stock
      • Timing: Factory settings

    Recommended Components

      • Balancer: OE
      • Intake Manifold: OE
      • Flexplate/Flywheel: OE
      • Fuel Pump: OE
      • Spark Plugs: Autolite #417-AP985
      • Spark Plug Wires: OE
      • Water Pump: OE Per application

    Notes: This engine will work with all stock components, ATK recommends a cold air intake, headers, exhaust, and a chip for maximum power potential.

    Disclaimer: Power figures can vary based on parts used by the end user. Some modifications to the vehicle may be required using these and or other aftermarket parts.

    Engine Break-In Procedure

    Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation.  Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.

    Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat process 2-3 more times. Do not idle the engine for any extended period at this time, this is critical to break in the camshaft.

    At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable).  Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.

    Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Use of oil with zinc or a zinc additive for the life of your engine is recommended.



    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Please CLICK HERE for ATK Warranty

  • In 2007, ATK launched a High Performance Division with one of the finest engine shops in the country. By reverse engineering all of their engines, they are able to eliminate any OEM deficiencies. This makes an ATK built crate engine have a superior design over the original engine by incorporating better components when needed. These quality built engines are offered in three different stages for ease of finishing an engine swap. ATK HP engines feature a 24 month/unlimited mile warranty.

    Show More

    Engine Specifications

    This engine will reuse stock parts from your tired old 4.0L while providing more power and reliabilty.

    • Horsepower: 205 hp
    • Torque: 280 lb/ft

    Block Information:

    • OE 4.0L block
      • #535 or 665 for 1987-1990
      • #569,341, or 449 for 1991-1998
      • #327AB or 328AB for 1999-2006
      • #449A for 2000-2001 Jeep Cherokee
    • Bore/Stroke: 3.915 or 3.935" x 3.895"
    • Displacement: 4.6L / 4.7L

    Rotating Assembly:

    • Crankshaft: Scat nodular iron with .850" pilot hole
    • Rods: OE
    • Compression Ratio: 9.3:1
    • Pistons: Hypereutectic
    • Rings: Moly

    Camshaft Specs:

    • Camshaft: Hydraulic flat tappet
    • Cam Duration @ .050": Intake 206 / Exhaust 212
    • Cam Lift: Intake .462" / Exhaust .478"
    • Lobe Separation Angle: 113lsa
    • Timing Chain: Single roller

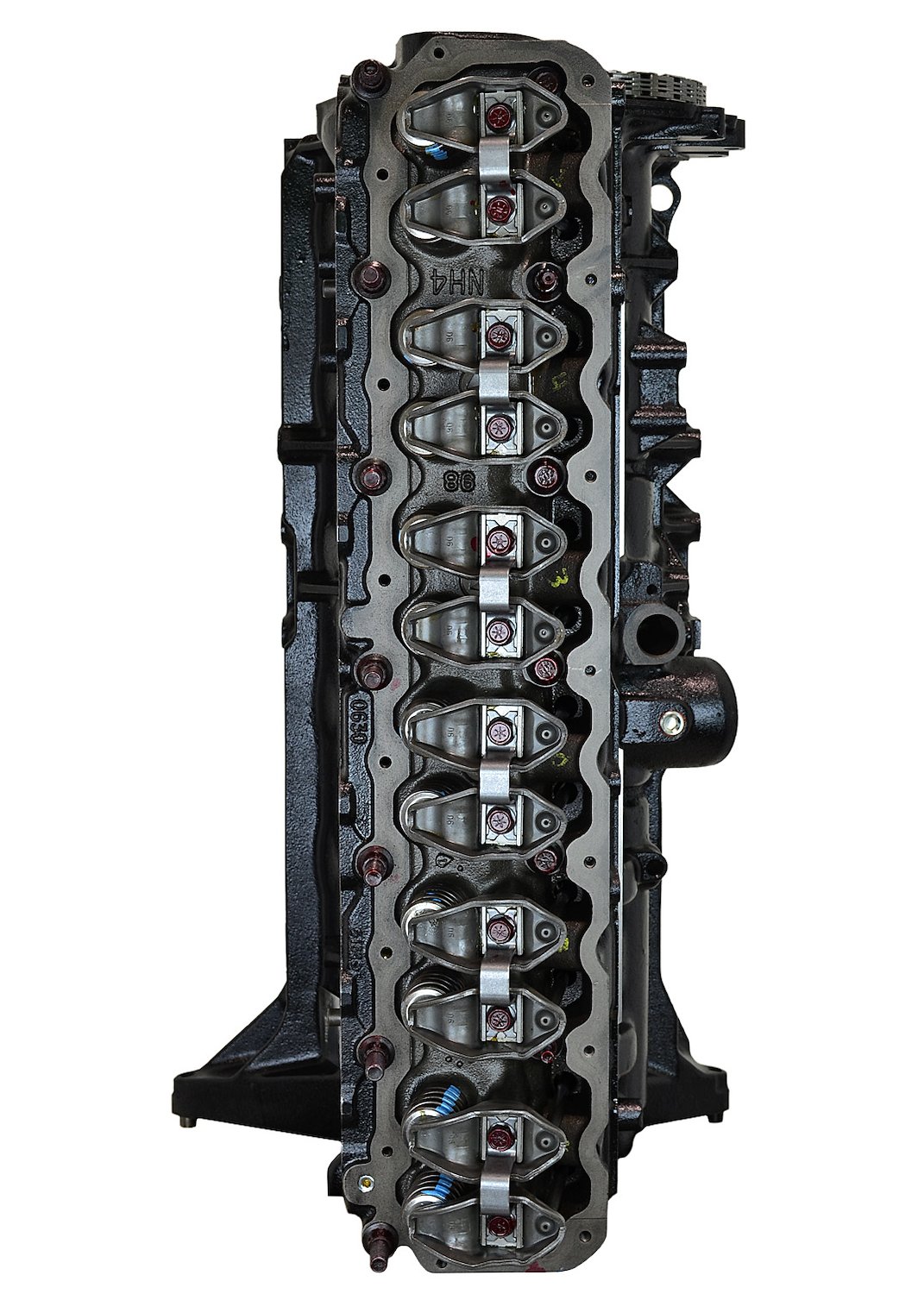

    Cylinder Head Information:

    • Cylinder Heads: OE cast iron
      • #686 for 1987-1990
      • #630 for 1991-1998
      • #0331 for 1999-2006, 2000-2001 Jeep Cherokee
    • Rocker Arms: OE stamped steel

    Oil Pump Information:

    • Oil Pump: Melling standard volume

     Base Engine Includes:

    • Short Block
    • Camshaft
    • Timing Set
    • Cylinder Head
    • Oil Pump



    Part TypeCrate Engine
    Product LineATK HP Crate Engines Jeep L6 4.7L Stroker / 205HP / 280TQ
    BrandATK ENGINES
    Package Height21.5
    Package Width31.2
    Package Length37.0
    Weight367.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Cylinder Head MaterialCast iron
    Engine Block MaterialCast iron
    QuantitySold individually
    Part FitmentSemi Universal
    Engine Displacement4.0L
    Engine Make/SizeJeep I6
    Vendor Part NumberHP24
    Package Qty1
    Package TypeEA
