ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

Please CLICK HERE for ATK Core Return Process

NOTE:

• Core return can be any Small Block Ford 302ci engine

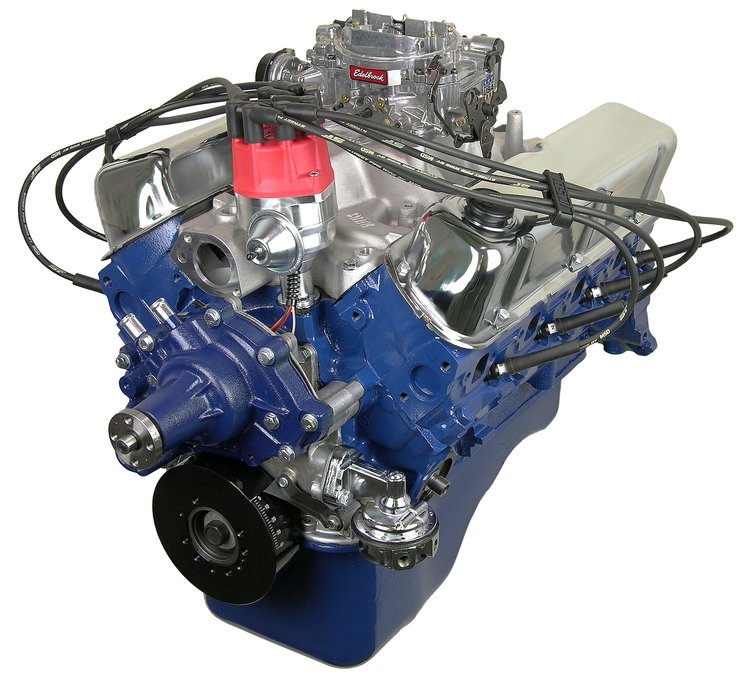

Engine Specifications

This 302 engine is designed to have great street manners, and work with most stock components.

• Horsepower: 300 hp
• Torque: 336 lb/ft

Block Information:

• Seasoned OE roller block
• Bore/Stroke: 4.040" x 3.000"
• Displacement: 302ci

Rotating Assembly:

• Crankshaft: OE cast 1 piece seal
• Balance: 50oz external balance
• Rods: OE steel rod 5.090" stock bolts
• Compression Ratio: 9.1:1
• Pistons: Hypereutectic
• Rings: Moly

Camshaft Specs:

• Camshaft: Hydraulic roller
• Cam Duration @ .050": Intake 219 / Exhaust 219
• Cam Lift: Intake .498" / Exhaust .498"
• Lobe Separation Angle: 112lsa
• Timing Chain: Double roller

Cylinder Head Information:

• Cylinder Heads: OE E5TE/E7TE cast iron
• Combustion Chamber: 62cc
• Valve Size: 1.77" Intake / 1.46" Exhaust
• Rocker Arms: Stamped steel 1.6 ratio pedestal mount

Engine Break-In Procedure

Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation.  Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.

Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat process 2-3 more times. Do not idle the engine for any extended period at this time, this is critical to break in the camshaft.

At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable).  Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.

Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Use of oil with zinc or a zinc additive for the life of your engine is recommended.

FAQ

How much horsepower does a 302 crate engine have?

• A typical 302 crate engine like the ATK HP79c may deliver around 300-350 horsepower.
• Performance can vary based on modifications and build specifics.

What is Ford's highest HP crate engine?

• Ford's highest horsepower crate engine might vary, but the 302 Windsor is renowned for its balanced performance.
• Specific models or special editions may offer higher horsepower.

How much does a 302 Boss engine cost?

• Pricing for a 302 Boss engine can fluctuate based on availability and market factors.
• Exact costs vary widely, considering factors like new or used and specific configurations.

How much is the Hellephant crate engine?

• The Hellephant crate engine is a high-performance, specialized engine known for its power, but its cost can be substantial.
• Exact pricing varies widely and may depend on market conditions and availability.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Please CLICK HERE for ATK Warranty
