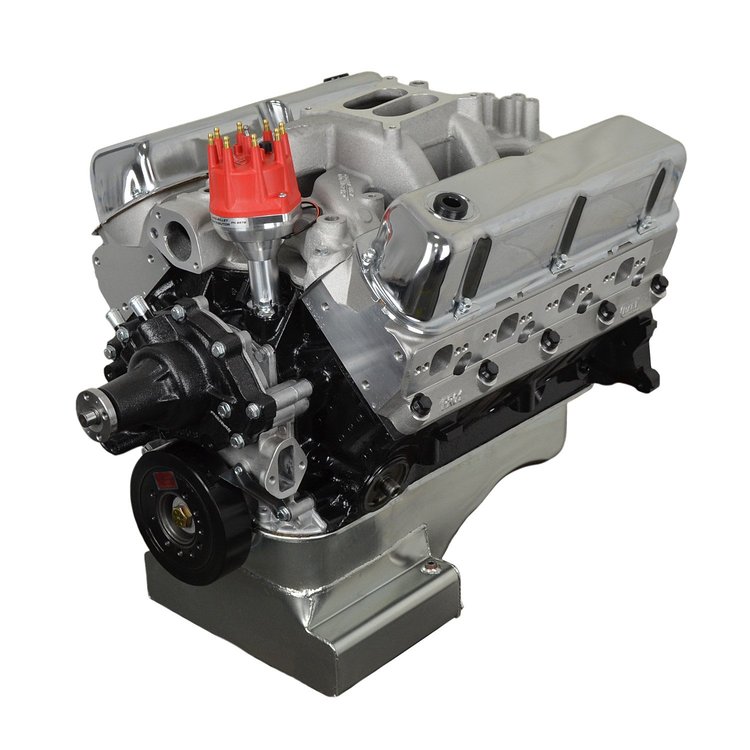

High Performance Crate Engine Small Block Ford 408ci / 480HP / 500TQ

Name: High Performance Crate Engine Small Block Ford 408ci / 480HP / 500TQ
Brand: ATK ENGINES
SKU: 059-HP81M
Price: 9369.00 USD
Availability: InStock

^$9,369⁰⁰

Core Charge: ^$550⁰⁰

Truck Freight

Ships on 11/06/2026

Lowest Price Guarantee

Mid Dress Engine

High Performance Crate Engine

Small Block Ford 408ci

480HP / 500TQ

Front Sump Oil Pan

Mid Dress Engine Includes:

Base Engine Build
Intake Manifold
Distributor
Water Pump
Harmonic Balancer
Flex Plate

ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.
Please CLICK HERE for ATK Core Return Process
NOTE:
- Core return can be any Small Block Ford 351W engine
Engine Specifications
This is a street/strip engine, so expect great power, lopey idle, and power accessories may not work.
- Horsepower: 480 hp
- Torque: 500 lb/ft
Block Information:
- Seasoned OE roller block 1993-1997 351W
- Bore/Stroke: 4.040" x 4.000"
- Displacement: 408ci
Rotating Assembly:
- Crankshaft: Scat 4340 forged
- Balance: Internal balance
- Rods: Scat 4340 forged H beam with ARP 8740 bolts
- Compression Ratio: 10:1
- Pistons: Forged
- Rings: Moly
Camshaft Specs:
- Camshaft: Hydraulic roller
- Cam Duration @ .050": Intake 235 / Exhaust 238
- Cam Lift: Intake .573" / Exhaust .582"
- Lobe Separation Angle: 112lsa
- Timing Chain: Double roller
Cylinder Head Information:
- Cylinder Heads: Dart Pro 1 aluminum
- Combustion Chamber: 58cc
- Intake Runner: 195cc
- Valve Size: 2.02" Intake / 1.60" Exhaust
- Rocker Arms: Aluminum 1.6 roller
Oil Pan Information:
Recommended Components
Disclaimer: The parts listed are ATK's recommendations of parts to be used to obtain the power figures listed. Power figures can vary based on parts used by the end-user. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat process 2-3 more times. Do not idle the engine for any extended period at this time, this is critical to break in the camshaft.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable). Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.
Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Use of oil with zinc or a zinc additive for the life of your engine is recommended.

Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Please CLICK HERE for ATK Warranty

In 2007, ATK launched a High Performance Division with one of the finest engine shops in the country. By reverse engineering all of their engines, they are able to eliminate any OEM deficiencies. This makes an ATK built crate engine have a superior design over the original engine by incorporating better components when needed. These quality built engines are offered in three different stages for ease of finishing an engine swap. ATK HP engines feature a 24 month/unlimited mile warranty.

Unleash serious street and strip power with the ATK HP Crate Engines Small Block Ford 408ci / 480HP / 500TQ—a powerhouse built for performance enthusiasts who crave torque-rich acceleration and proven reliability. This engine is the perfect upgrade for those looking to replace or step up from a stock 351W with modern muscle and old-school character.

This 408 Ford crate engine is precision-built using a seasoned 351W block, stroked and outfitted with high-quality internals including forged pistons, a performance camshaft, and aluminum cylinder heads. The result is a stout 480 horsepower and a tire-twisting 500 lb-ft of torque—ideal for muscle cars, street rods, and weekend racers.

As a complete Ford 408 stroker package, this engine is dyno-tested to ensure peak performance and reliability before it ships, saving you time and providing confidence for your build. It's ready to drop in and deliver serious performance right out of the box.

Whether you're tackling a Pro Touring project or restoring a street machine, the Ford 408 stroker crate engine offers a no-compromise blend of brute force and daily drivability. It's designed for enthusiasts who want bold power without the complexity of a custom build.

Backed by ATK's reputation for quality and supported by a solid warranty, this crate engine delivers American V8 muscle the way it was meant to be—loud, reliable, and ready to dominate. Drop it in, fire it up, and feel the difference a true stroker makes.

Part TypeEngine

Product LineATK HP Crate Engines Small Block Ford 408ci / 480HP / 500TQ

BrandATK ENGINES

Package Height27.0

Package Width37.0

Package Length40.0

Weight450.0 PG

Part CategoryPerformance Parts

Engine TypeCrate Engine

Cylinder Head MaterialAluminum

Engine Block MaterialCast iron

QuantitySold individually
