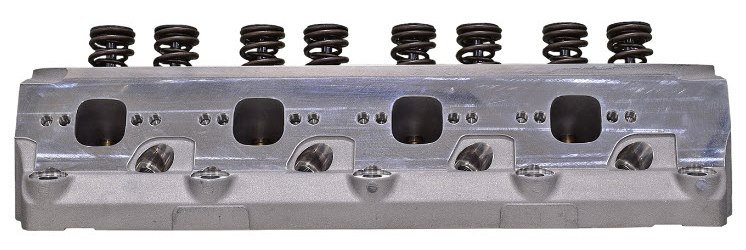

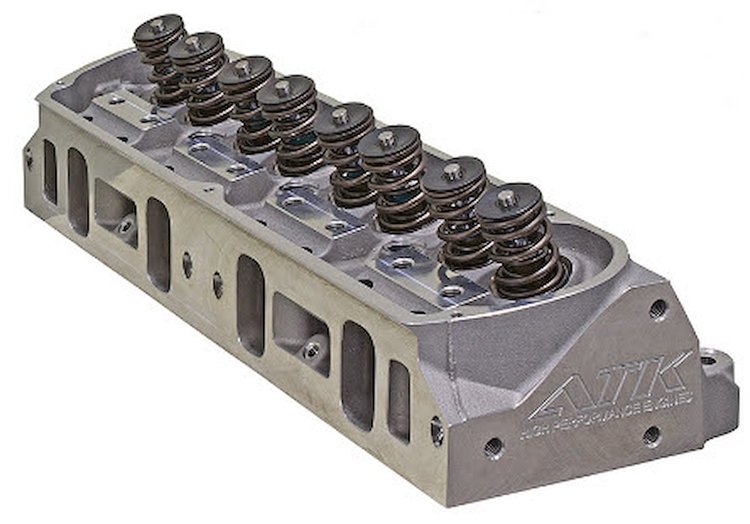

HPSBF185 Aluminum Cylinder Head for Small Block Ford w/185 cc Intake Ports
Product Discontinued
ATK ENGINESPART NUMBER: 059-HPSBF185

HPSBF185 Aluminum Cylinder Head for Small Block Ford w/185 cc Intake Ports

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Small Block
Aluminum Cylinder Head
  • Small Block Ford
  • A356.2 Aluminum
  • Intake Port Volume: 185 cc
  • Combustion Chamber: 58 cc
  • Intake Valve: 2.08 in.
  • Exhaust Valve: 1.60 in.
  • Intake Port: Stock
  • Exhaust Port: Raised .125 in.
  • Sold Individually

    ATK HPSBF185 Aluminum Cylinder Head:

    • Material: A356.2 Aluminum
    • Intake Port Volume: 185 cc
    • Intake Valve Size: 2.08 in.
    • Exhaust Valve Size: 1.60 in.
    • Intake Port Location: Stock
    • Exhaust Port Volume: 70 cc
    • Exhaust Port Dimension: 1.400 in. H x 1.400 in. W
    • Exhaust Port Location: Raised .125 in.
    • Combustion Chamber Size: 58 cc
    • Valve Cover Bolt Pattern: Perimeter Bolt
    • Valve Angle: 20°
    • Valve Spring Pocket Diameter: 1.580 in. O.D
    • Max Valve Spring Pocket Machining: 1.625 in. O.D
    • Deck Thickness: .750 in.
    • Minimum Bore Diameter: 4.000 in.
    • Spark Plug Dimensions: 14 mm x .750 in. w/Gasket Seat
    • Head Bolt Diameter: 1/2 in.
    • Sold Individually

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Please CLICK HERE for ATK Warranty

      • Upgrade Your Cylinder Heads

      ATK High-Performance Cylinder Heads save time and trouble sourcing cores and or waiting for machine shops. ATK has multiple head combinations. The valve springs provided are an upgrade to OEM and allow for the use of a Hydraulic Roller or Hydraulic Flat Tappet camshaft.

    Part TypeCylinder Head
    Product LineATK High-Performance Cylinder Heads
    BrandATK ENGINES
    Package Height8.9
    Package Width12.1
    Package Length24.2
    Weight66.25 PG
    Part CategoryPerformance Parts
    Valve Springs IncludedYes
    Cylinder Head MaterialAluminum
    Rocker Arms IncludedNo
    Intake Port Volume (Cc)185
    Combustion Chamber Volume (Cc)58 cc
    QuantitySold individually
    Intake Valve Diameter2.08 in.
    Part FitmentSemi Universal
    Engine Make/SizeFord Small Block
    Exhaust Valve Diameter1.60 in.
    Vendor Part NumberHPSBF185
    Package Qty1
    Package TypeEA
