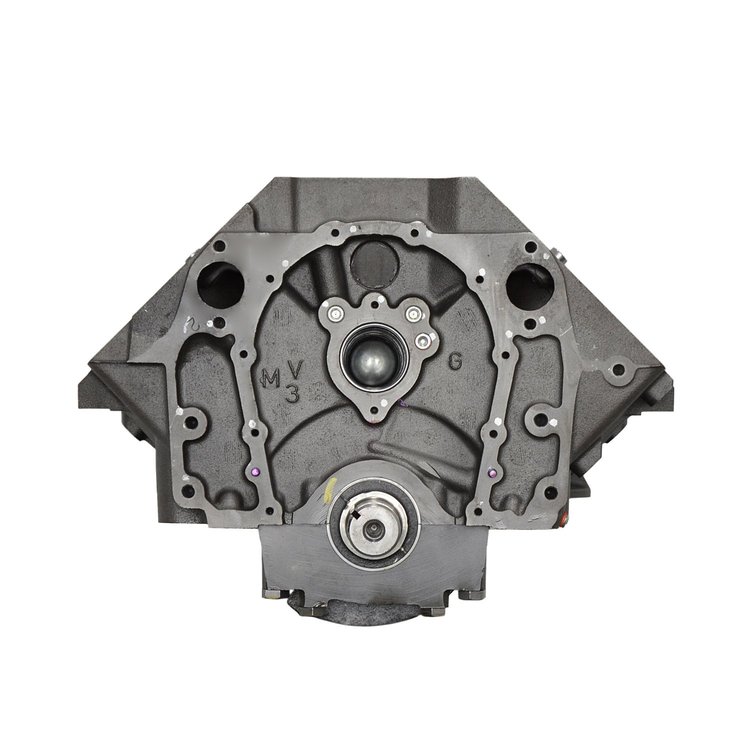

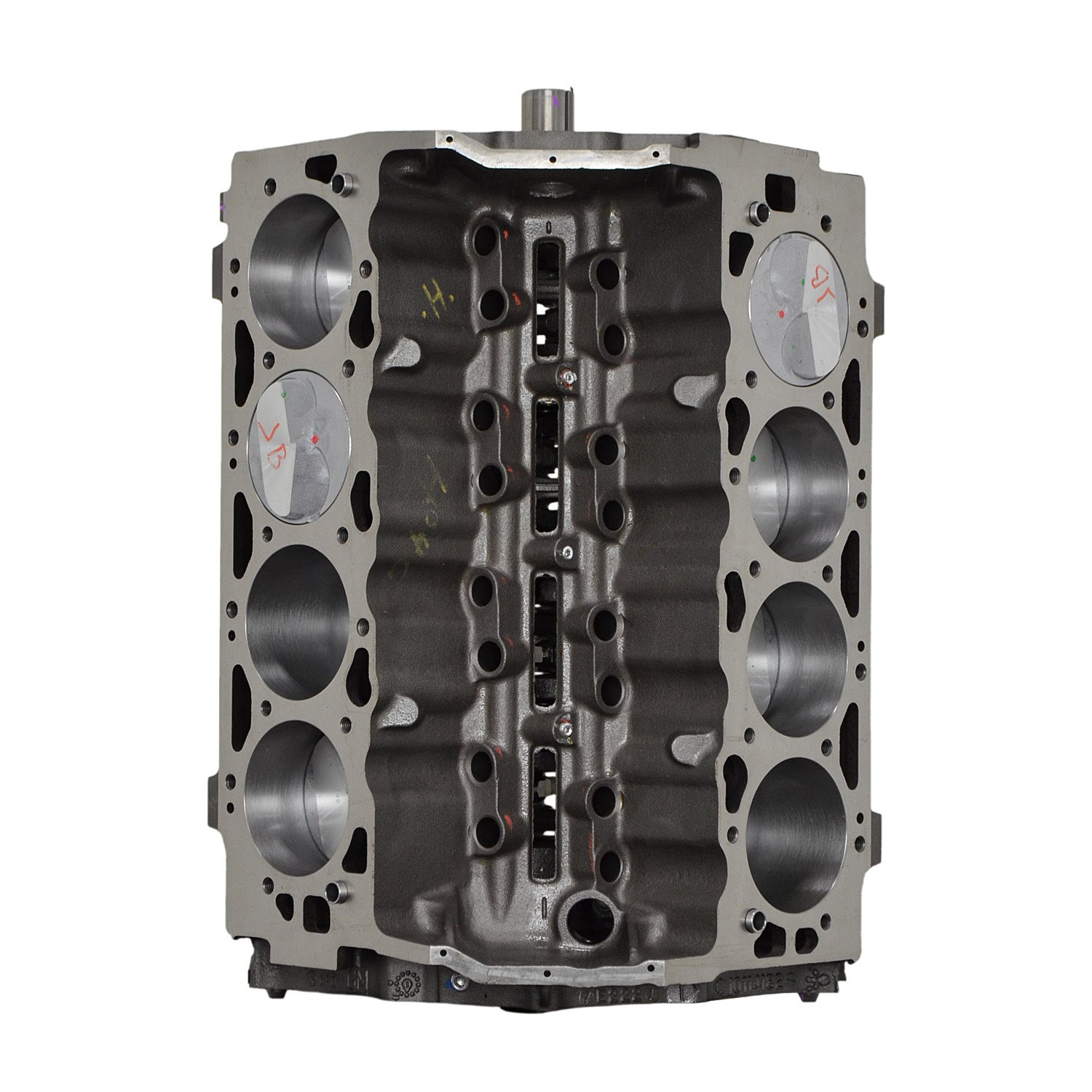

High Performance Short Block Big Block Chevy 454ci

Name: High Performance Short Block Big Block Chevy 454ci
Brand: ATK ENGINES
SKU: 059-SP06-HP
Price: 2100.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Big Block Chevy

High Performance Short Block

Big Block Chevy 454ci

4 Bolt Mains, 1-Piece Rear Main Seal

Cast Crankshaft

Powder Metal Rods 6.135" Length

Hypereutectic Flat Top Pistons

This engine makes a great foundation for a mild performance build or a good upgrade for a worn out short block.

Block Information:

Seasoned OE 4 bolt main 1pc seal 1991-1995 Gen V
Bore/Stroke: 4.310" x 4.000"
Displacement: 454ci
Camshaft Bearings: Dura-Bond, installed and clocked to OEM position
Freeze Plugs: Brass, installed and sealed
Oil Galley Plugs: Installed and sealed

Rotating Assembly:

Crankshaft: OE cast crank reground .010"/.010"
Balance: External rear (flexplate/flywheel), internal front (haromonic balancer)
Rods: OE reman powder metal 6.135"
Compression Ratio: 109cc= 8.9:1 / 116cc= 8.5:1 / 119cc=8.3:1
Pistons: Hypereutectic flat top with 2 valve reliefs
Rings: Plasmamoly

Recommended Components:

Balancer: External balance
Flexplate/Flywheel: External balance
Head Gasket: .038" thickness or per application
Oil: 10W30 Non synthetic for first 3000 miles
Oil Filter: Wix or K&N per application

Notes:

No mechanical fuel pump provision

Please CLICK HERE for ATK Warranty

Short Blocks for Street or Strip

ATK Engines High-Performance Short Blocks provide the foundation for your next engine build for Gen I Small Block Chevys, Big Block Chevys, and Gen III/IV LS. These short blocks support mild to extreme horsepower in naturally aspirated or boosted applications.

Part TypeEngine Short Block

Product LineATK Engines Small, Big Block Chevy & LS Short Blocks

BrandATK ENGINES

Package Height26.0

Package Width26.0

Package Length29.0

Weight361.0 PG

Part CategoryPerformance Parts

QuantitySold individually

Vendor Part NumberSP06-HP

Package Qty1

Package TypeEA
