ATK ENGINESPART NUMBER: 059-SP52NB

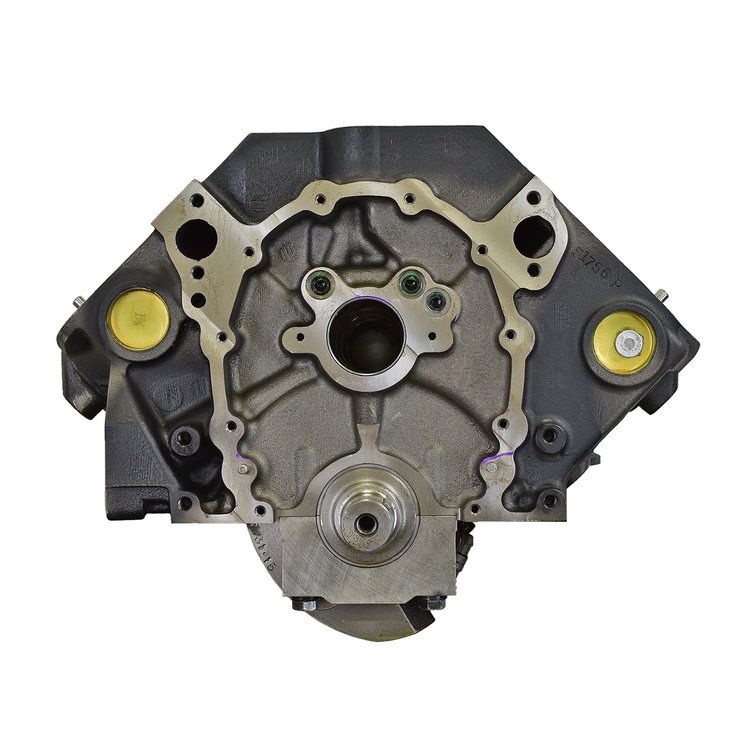

377 Stroker Short Block for Small Block Chevy 4 in. Bore x 3.750 in. Stroke [Forged Flat Top Pistons]
$3,58334
Truck Freight
377 Stroker Short BlockFits Small Block Chevy 1-Piece Rear Main Seal Blocks 4 in. Bore x 3.750 in. Stroke Nodular Iron Crankshaft, 4340 Forged I-Beam Rods Forged Flat Top Pistons, -3.7cc Sold Individually
The high compression version of the 377 Small Block Chevy short block. Flat top forged pistons push static compression well past the dished build, which suits a small chamber aluminum head and an aggressive camshaft on race gas or a well controlled pump gas tune. Supplied on a new one-piece rear main seal block.
ATK Engines SP52NB 377 Stroker Short Block Features:
- New cast iron block with a one-piece rear main seal.
- 4 in. bore and 3.750 in. stroke for 377 cubic inches.
- Scat nodular iron crankshaft with Scat 4340 forged I-beam rods and ARP 8740 bolts.
- Forged flat top pistons at -3.7cc with plasma moly rings.
- Compression works out to 12.1:1 with 58cc chambers, 11.2:1 with 64cc and 10.5:1 with 70cc.
- Dura-Bond cam bearings installed and clocked, brass freeze plugs and oil galley plugs installed and sealed.
Part TypeEngine Short Block
BrandATK ENGINES
Package Height36.0
Package Width36.0
Package Length36.0
Weight445.0 PG
Part CategoryPerformance Parts
Crankshaft MaterialNodular Iron
Engine Block MaterialCast Iron
Connecting Rod MaterialForged Steel
QuantitySold Individually
Connecting Rod Beam StyleI-Beam
Engine Assembly StyleShort Block
Bore Diameter4 in
Piston StyleFlat Top
Fuel TypeGas
Balance TypeExternal
Cylinder Quantity8
Rear Main Seal TypeOne-Piece
Piston MaterialForged
Cam Bearings IncludedYes
Part FitmentSemi Universal
Engine Displacement377 cid
Engine Stroke3.750 in
Vendor Part NumberSP52NB
Package Qty1
Package TypeEA
