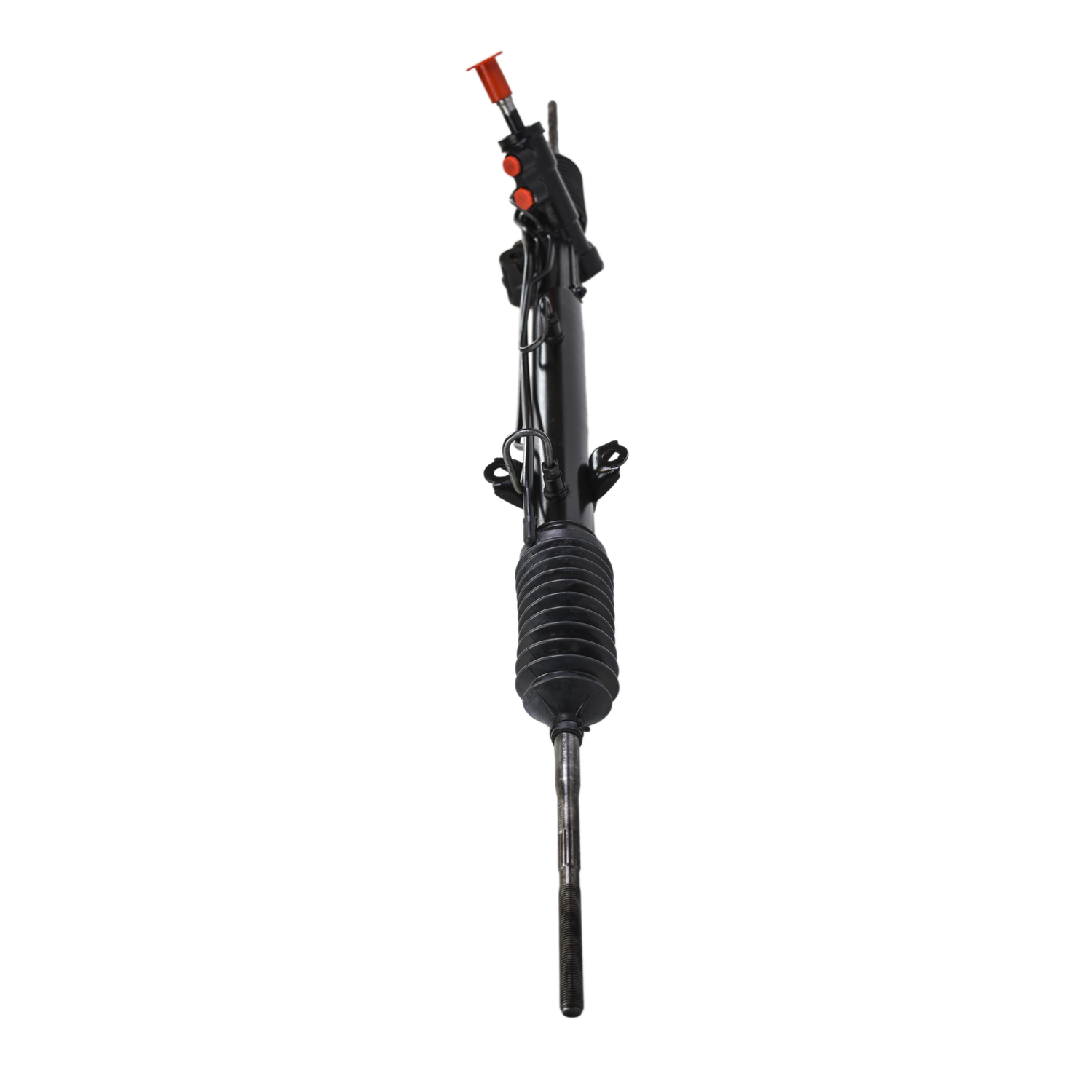

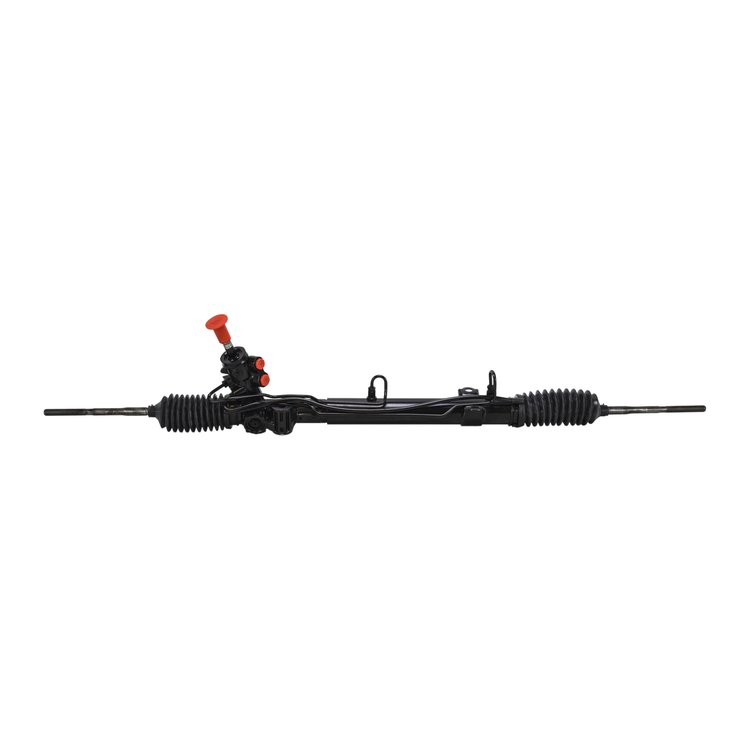

ATK SR02134 Features:

Our Remanufactured Rack & Pinions are re-engineered, built and tested to meet or exceed O.E. fit and performance. 100% new, O.E.-style o-rings and seals are installed to ensure leak-free, long-lasting performance. A final protective coating is applied

• OEM Make: Chrysler
• Input Shaft Diameter (in): 0.66
• Input Shaft Length (in): 2.88
• Lock to Lock Turns: 3.13
• Mounting Holes Distance (in): 14.19
• or Remanufactured: Remanufactured
• Pressure Port Thread Size: M18 x 1.5
• Rack Length (mm): 1282.70
• Thread Length (in): 3.18
• Tie Rod Ends Included: Inner
• Hose Port Type: O-Ring
• Input Shaft Diameter (mm): 16.76
• Input Shaft Length (mm): 73.03
• Material: Steel/Aluminum
• Mounting Holes Distance (mm): 360.38
• Number of Mounting Holes: 3
• Rack Length (in): 50.50
• Return Port Thread Size: M16 x 1.5
• Thread Length (mm): 80.87
