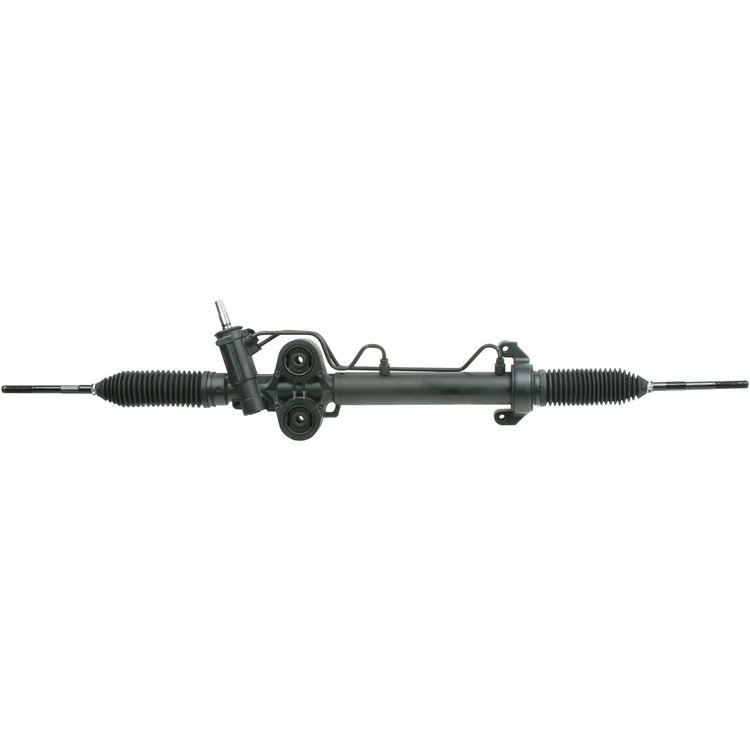

ATK SR260 Features:

Our Reman Rack & Pinions are re-engineered, built & tested to meet or exceed O.E. fit & performance, 100% new, O.E.-style o-rings & seals are installed to ensure leak-free, long-lasting performance. A final protective coating is applied.

• Input Shaft Length (mm): 53.98
• or Remanufactured: Remanufactured
• Input Shaft Length (in): 2.13
• OEM Make: GM
• Distance Between Mounting Holes (mm): 111.13
• Input Shaft Diameter (in): 0.79
• 1) Note: Contents: Rack and Pinion, Installation Kit, Instruction Sheet
• Pressure Port ID Size: 0.472
• Number of Mounting Holes: 4
• Rack Length (in): 54.75
• Rack Length (mm): 1390.65
• Thread Length (in): 2.40
• Tie Rod Ends Included: Inner
• Return Port ID Size: 0.472
• Thread Length (mm): 60.96
• Total Turns Lock to Lock: 3
• Hose Port Type: O-Ring
• Input Shaft Diameter (mm): 19.94
• Material: Steel/Aluminum
• Distance Between Mounting Holes (in): 4.38
