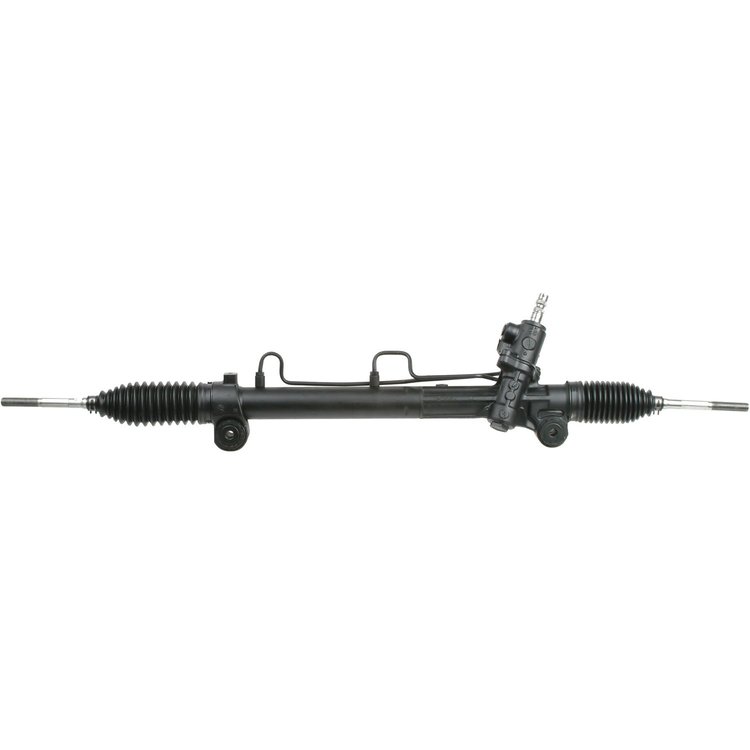

ATK SR50189 Features:

Our Remanufactured Rack & Pinions are re-engineered, built and tested to meet or exceed O.E. fit and performance. 100% new, O.E.-style o-rings and seals are installed to ensure leak-free, long-lasting performance. A final protective coating is applied

• OEM Make: Toyota
• Mounting Holes Distance (mm): 485.78
• Pressure Port Thread Size: M16 x 1.5
• Thread Length (mm): 59.69
• Lock to Lock Turns: 3.19
• Input Shaft Length (mm): 49.20
• Number of Mounting Holes: 2
• Input Shaft Length (in): 1.94
• Input Shaft Diameter (mm): 19.00
• Rack Length (mm): 1136.65
• Tie Rod Ends Included: Inner
• Thread Length (in): 2.35
• Hose Port Type: O-Ring
• Rack Length (in): 44.75
• Gasket or Seal Included: Yes
• or Remanufactured: Remanufactured
• Return Port Thread Size: M17 x 1.5
• Material: Steel/Aluminum
• Input Shaft Diameter (in): 0.75
• Mounting Holes Distance (in): 19.13
• 1) Note: Contents: Rack and Pinion, Installation Kit, Instruction Sheet
