Vehicle Info NeededATK ENGINESPART NUMBER: 059-TCS456M1

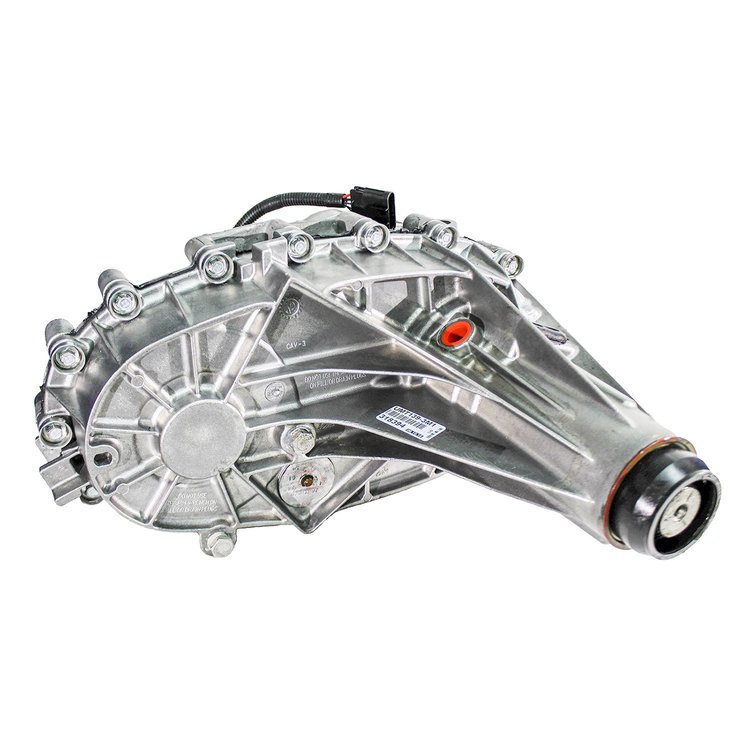

TCS456M1 Remanufactured Transfer Case, New Venture 263 XHD, w/ Motor, 4WD
$2,48840
Core Charge: $62000Truck Freight
Ships on 09/11/2026
Lowest Price GuaranteeNew Venture
Remanufactured Transfer CaseNew Venture 263 XHD, w/ Motor, 4WD
If returning a transfer case core, please see the link below for ATK’s core return procedure.
CLICK HERE: ATK Core Return Process
ATK TCS456M1 Features:
Each transfer case is tested on a simulator that recreates actual driving conditions & analyzes performance, to ensure seamless engagement & leak free performance before it leave the assembly line.
- Note: w/ Motor
- Drive Type: 4WD
- Factory Code(s): NV263 XHD
- Front Input Type: 29 Spline Input
- Mounting Bracket Included: No
- OEM Make: New Venture
- Rear Output Type: SYE (Slip Yoke Eliminator) Rear Output
- Shift Operation Type: Electric
- Shift Type: Electric
- Transfer Case Fluid Capacity: 4.0
- Transfer Case Fluid Type: Dexron IV
- Transfer Case Manufacturer Code: NV263 XHD
- Transfer Case Motor Included: Yes
Part TypeTransfer Case
BrandATK ENGINES
Package Height24.0
Package Width36.0
Package Length36.0
Weight125.0 PG
Part CategoryReplacement Parts
Shift Operation TypeElectric
Mounting Bracket IncludedNo
Input Type29-Spline Input
Transfer Case Fluid Capacity4.0
Transfer Case Fluid TypeDexron IV
Shift TypeElectric
Oem ReplacementNew Venture
Drive Type4WD
Transfer Case Manufacturer CodeNV263 XHD
Part FitmentDirect Fit
Transfer Case Motor IncludedYes
Vendor Part NumberTCS456M1
Package Qty1
Package TypeEA
