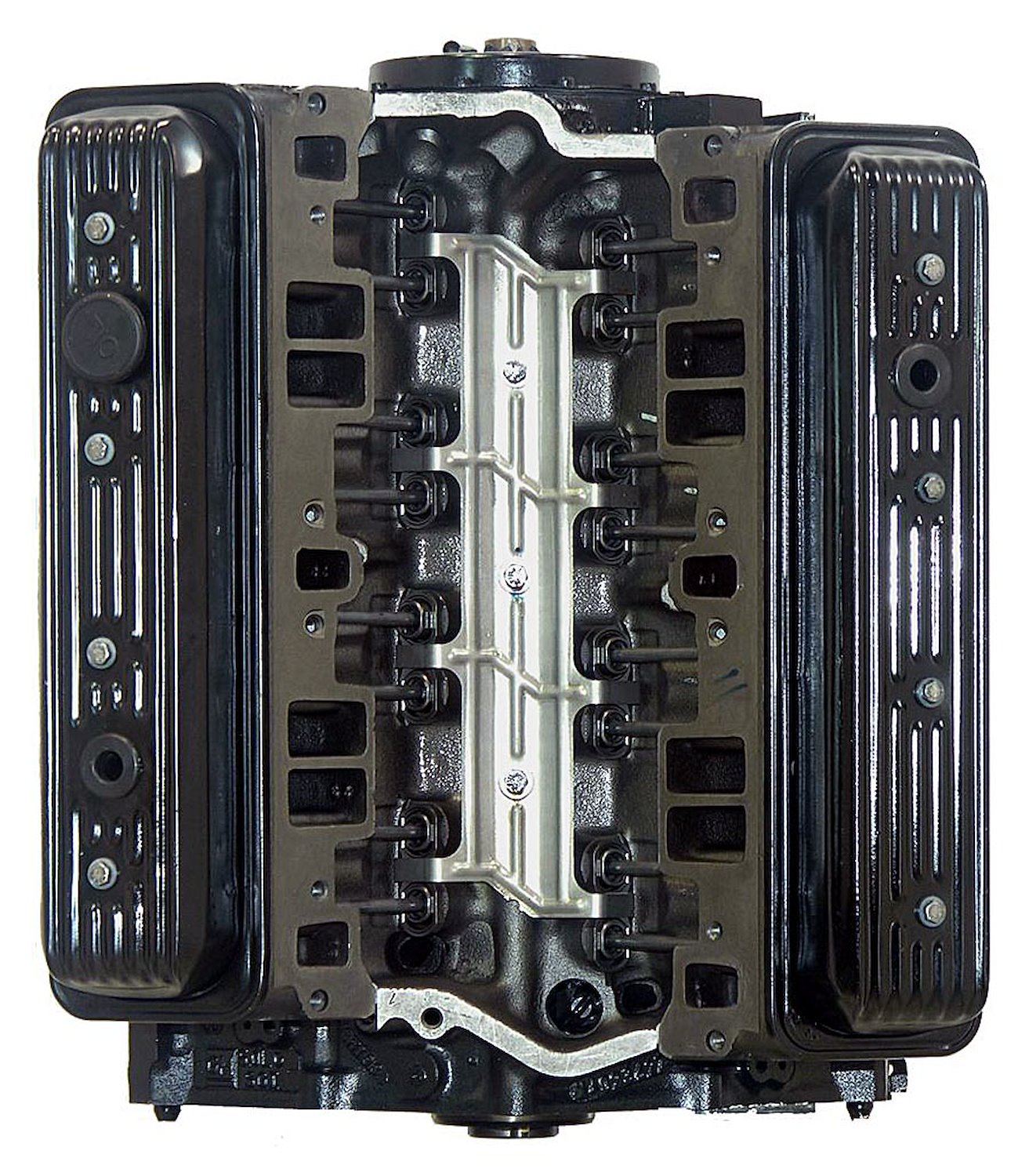

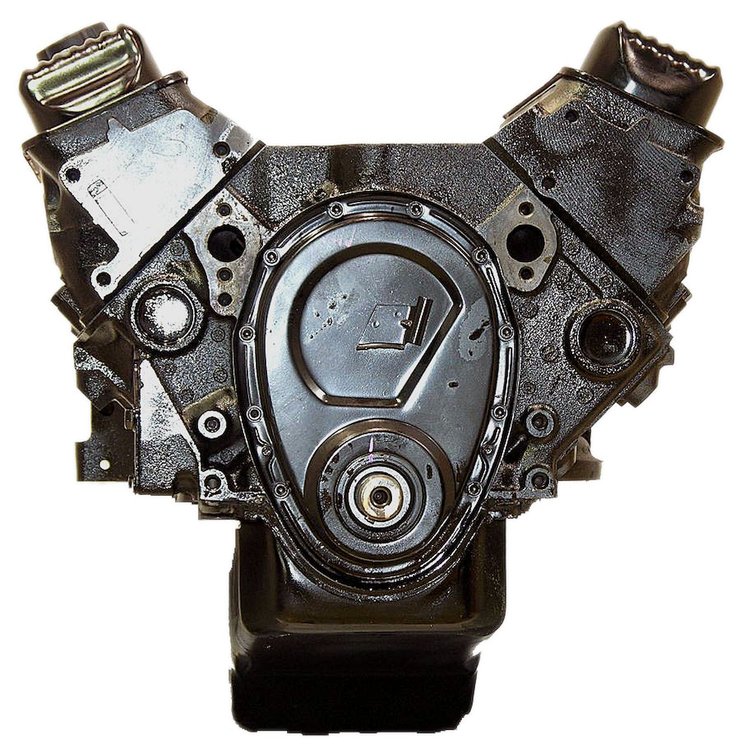

Remanufactured Crate Engine for 1987-1993 Chevy/GM Cars with 305ci/5.0L V8
InfoVehicle Info Needed
ATK ENGINESPART NUMBER: 059-VC36

Remanufactured Crate Engine for 1987-1993 Chevy/GM Cars with 305ci/5.0L V8

$2,03999
Core Charge: $47000
Truck Freight
ShippingShips Today
Lowest PriceLowest Price Guarantee

Gasoline V8
Remanufactured Crate Engine
  • 1987-1993 Chevy Full-Size Blazer, Camaro, & Caprice
  • 1991 Buick Roadmaster/Cadillac Brougham
  • 1987 GMC Full-Size Jimmy
  • 1987-1992 Pontiac Firebird
  • Small Block Chevy V8 305ci/5.0L
  • With Tinware

    ATK Core Return Process
    JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.

    Please CLICK HERE for ATK Core Return Process

    Notes:

    • Tinware includes valve covers, oil pan, timing cover
    • VIN E
    • Head Cast #: 2187
    • Block Cast #: 627, 058
    • 1 piece rear main seal
    • Roller cam
    • Center-bolt valve covers

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first 600 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. Check the engine oil and coolant levels daily.

    At 600 Miles change the engine oil and filter using conventional (non-synthetic) oil. Check fuel and ignition settings; adjust valves (where applicable).

    After the first 5,000 of service synthetic engine oil may be used. Follow your vehicle owner’s manual for service intervals.

    Please CLICK HERE for ATK Warranty

  • Part TypeEngine
    BrandATK ENGINES
    Package Height28.0
    Package Width32.0
    Package Length37.0
    Weight428.0 PG
    Part CategoryReplacement Parts
    Engine TypeReplacement Engine
    Cylinder Head MaterialCast iron
    Engine Block MaterialCast iron
    QuantitySold individually
    Part FitmentDirect Fit
    Engine Displacement5.0L/305
    Engine Make/SizeChevy Small Block
    Vendor Part NumberVC36
    Package Qty1
    Package TypeEA
