Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM 8.2''

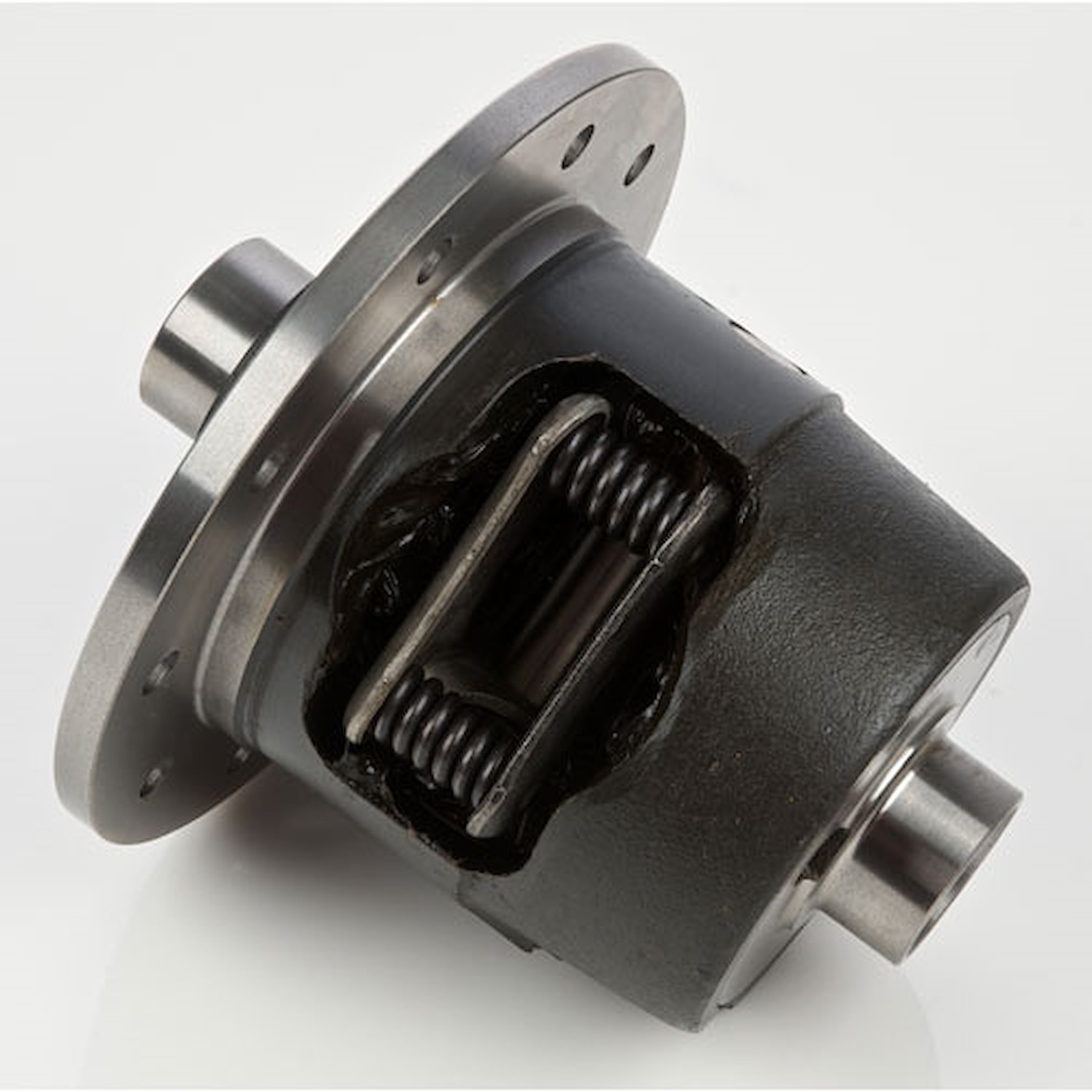

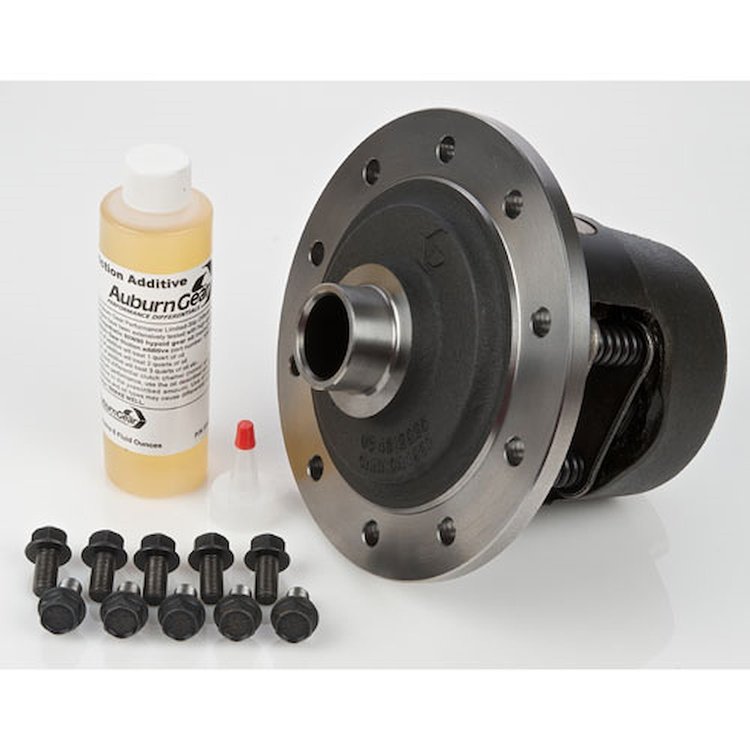

- Pro Series Differential
- GM 8.2'' (Buick / Olds / Pontiac)
- 10-Bolt
- 28-Spline Axle
- Fits 3.36-Up Gear Ratios
Applications: Buick, Olds, Pontiac with 8.2' ring gear. Non 'C' lock axle-27 tooth pinion spline. Will not fit 'O' axle with 12-bolt cover and 10-bolt ring gear.Techical Notes: Stock bearings are usually LM603049/LM603012 for the ring gear side and LM501349/LM501314 for the opposite side. Some use LM501349/LM501314 for both sides. The Auburn limited-slip differential will fit in either application. They supply 2 sets of LM102949/LM102911. Axles that have the LM603049/LM603012 bearing will still use that bearing, but the opposite side will require the LM102949/LM102911 that is included with the differential.
Part TypeDifferential Carrier
BrandAUBURN GEAR
Package Height8.3
Package Width8.4
Package Length9.1
Weight21.64 PG
Part CategoryPerformance Parts
Aftermarket Carrier StyleLimited slip
PositionN/A
QuantitySold individually
Cover Bolts10
Carrier MaterialDuctile iron
Part FitmentSemi Universal
Axle Shaft Spline Quantity28
Vendor Part Number542060
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
![Limited Slip Additive [4oz Bottle]](https://www.jegs.com/images/mini_200/500/555/555-60120.jpg)
Some parts are not legal for use in California or other states with similar laws / regulations
