Control the Power Transfer

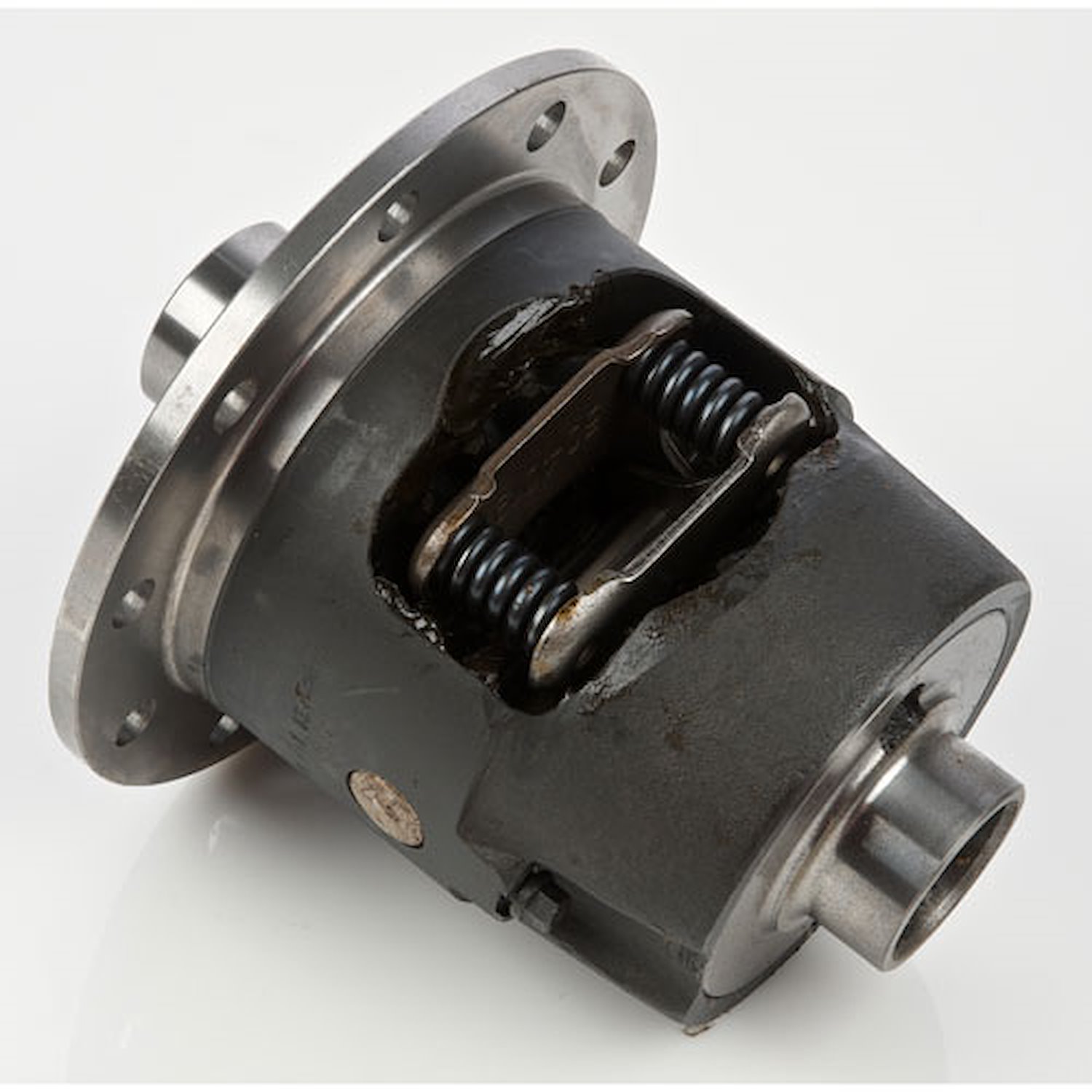

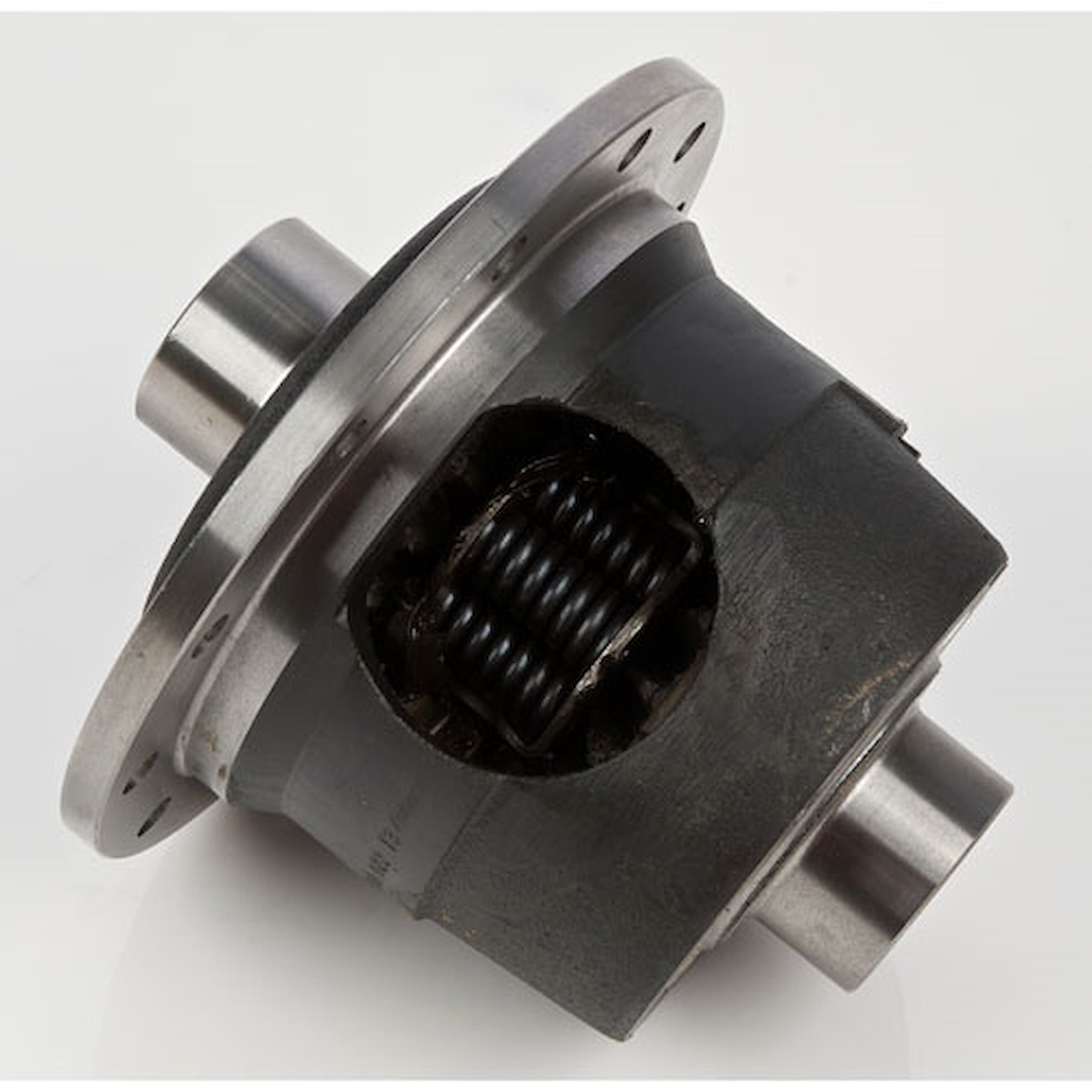

The Auburn Gear high-bias torque Pro Series limited-slip differential outperforms virtually every standard OEM differential. Pro Series differentials deliver usable traction and faster engagement for controlled power transfer and lightning-fast reaction. A unique cone-clutch design transfers more power to the high-traction wheel for quick acceleration and tight cornering. The Auburn Gear limited-slip differential employs an integral cone clutch side gear unit that creates friction with the carrier to drive both tires. The highly efficient torque transfer capability of the Auburn Gear limited-slip differential is achieved through the use of cone clutches coupled to beveled side gears. As torque is transmitted through the differential side gears to the axle shafts, the side gear separating forces and spring pre-load firmly seat the cones into the differential case. The cone design, along with the applied force, determines the torque transfer capability of the differential. When torque levels decrease, as in a cornering maneuver, the gear separating forces also decrease, allowing the axle shafts to rotate independently. This unequally divides the torque between the two wheels, delivering more torque (bias torque) to the wheel with the most traction.
