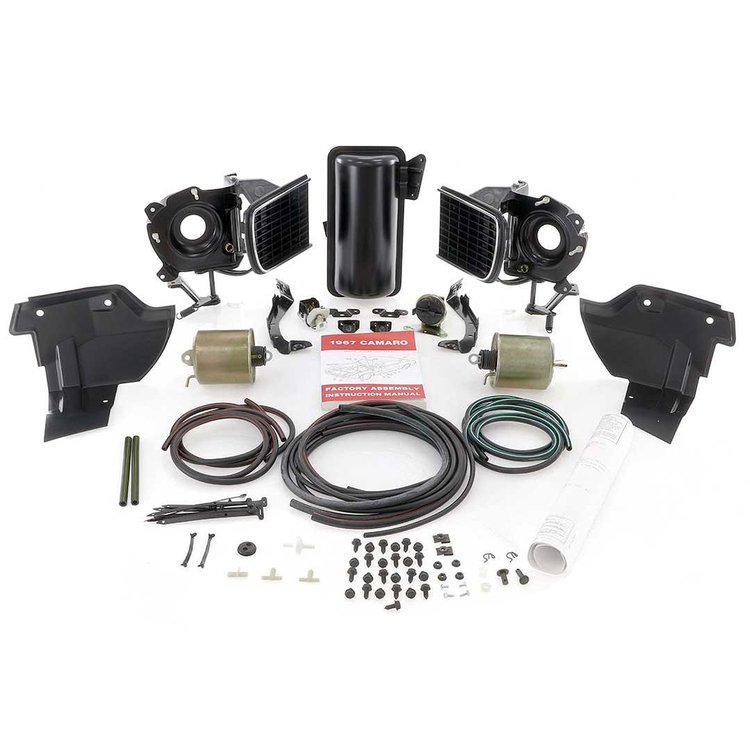

68 RS System Kit w/o Chrome

AUTO METAL DIRECT W-907 Features:

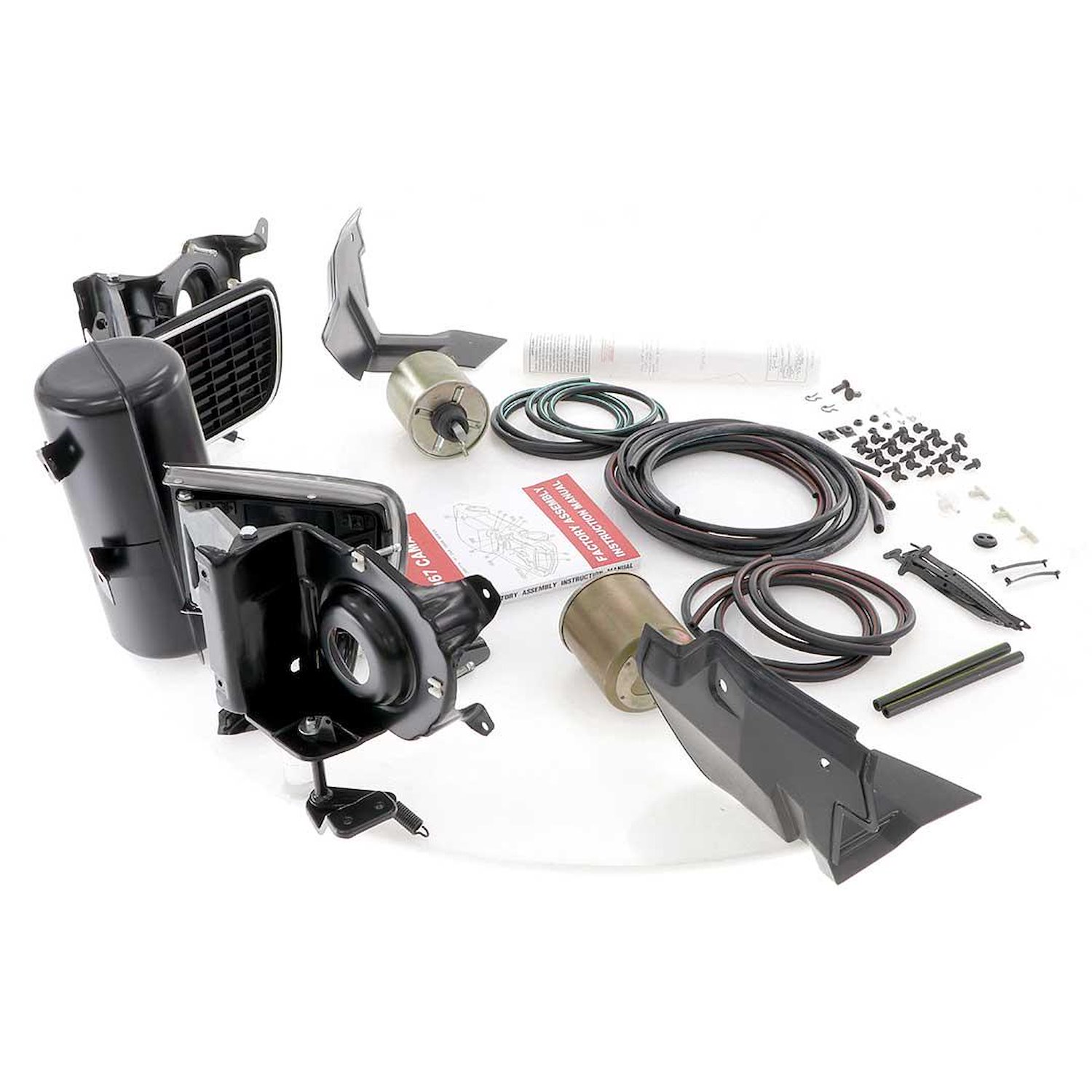

Packaged in a single double wall heavy duty logo box. Complete and technically correct. Contains all mechanical and needed electrical and vacuum component parts of the Hideaway Headlamp option, including hardware. USA assembled RH and LH headlamp assemblies, include: Headlamp housing, hinge plate, door backing plate, outer black headlamp door cover with molding (attached with correct rivets) and door stop cushion, bellcrank, lower bellcrank support bracket with blind nuts, over center mechanism, spring, beam adjusting screws, all bushings and hardware. Includes a 1968 450 page Assembly Manual with an illustrated 17 page section on installation. Includes Fenderwell Templates to accurately modify existing standard front fenderwells. Includes headlamp switch, vacuum relay assembly, core support door stop brackets pair, two vacuum actuators, vacuum tank, actuator shields-pair, color coded system hose kit, two actuator clevis pin sets, actuator rear support brackets-pair, with two clamp brackets and a complete hardware installation pack. Note:?RS Fender Adapter Brackets, part# W-918, must be purchased separate.
