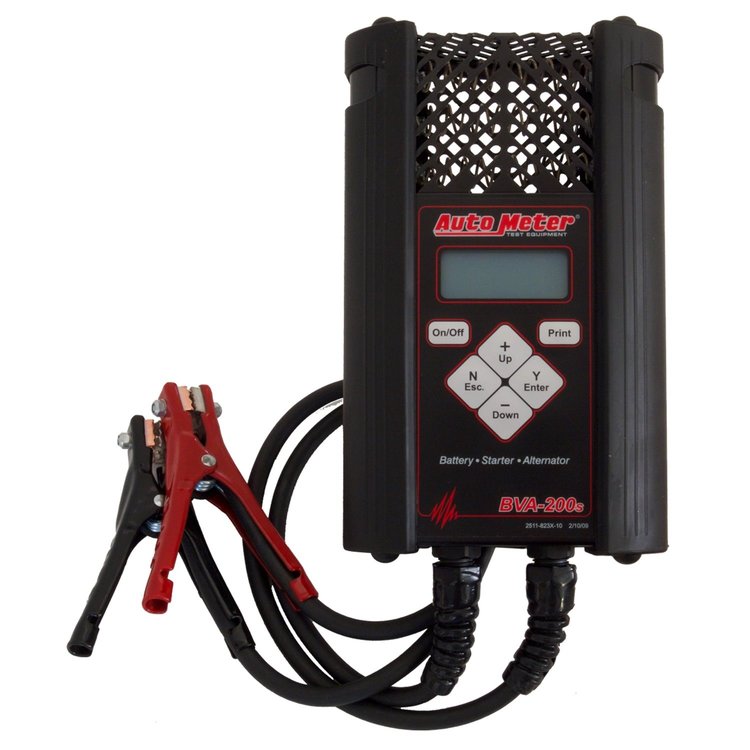

BVA-200S Battery Tester/Charging System Analyzer 200-1600 CCA
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-BVA-200S

BVA-200S Battery Tester/Charging System Analyzer 200-1600 CCA

$96199
6 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Battery Testers
    BVA-200S Battery Tester/Charging System Analyzer
  • 200-1600 CCA
  • 6 & 12 Volts
  • 120 Amp Load Rating


    These four handheld testers for automotive and specialty applications incorporate a state-of-the art micro-processor and Auto Meters patented Advanced Digital Pulse Load Technology for True-Load results.

    Features
  • Communication with optional PR-15 infrared printer or AC-12 PC cable
  • Easy to read 64 character 4 line LCD screed
  • Tests discharged batteries
  • Internal Battery (Included) - 9 Volt Alkaline
  • Reverse polarity protection
  • Cooling - Vented
  • Humidity - 0to 85% non condensing
  • Operational Temperature 0°-120°
  • Detects bad cells


    Application: 6V & 12V Automotive, Marine & Commercial Batteries. 12V & 24V Starting and Charging Systems.
    Battery Sizes: 6V & 12V, 200-1600 CCA, 250-2000 CA, 250-2000 MCA, 175-1500 EN, 125-1050 IEC, 100-900 DIN.
    Starter Draw: 0-999 Amps (+/-10%).
    Alternator Diagnostics: Regulation (Low, Good or High), Diodes (Good or Bad), Output (Low, 20-50 Amps, Over 50 Amps).
    Load: Automated 120 Amp Resistive Load.
    Display: 4x16 Character Wide Temperature LCD.
    Housing: Acid Resistant ABS Plastic w/Protective Boot.
    Memory: Last 200 Tests.
    Load Clamps: 2-1/2 feet 16 AWG Cables w/Insulated Volt and Amp Conductors and 4-Wire Kelvin Jaws for Accurate Measurements.
    Voltage Range: 0 to 32 Volts, 0.01V Resolution, +/-0.05V, Test Batteries Down to 0.50 Volts.
    Power Requirements: 9V Alkaline Battery.
    Operating Temperature: 0° to 120°F.
    Interface Options: IR Printer, PC via RS-232.
    Size: 5.9' x 9.6' x 2.1'.
    Weight: 4 lbs.
  • Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
  • Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
  • Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use and more accurate.
  • English and Spanish language menus and test results.
  • Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
  • Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery's ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
  • True-Load ' This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle's battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter's Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
  • 16 Gauge, 20" leads with professional grade clamps that are easily field serviceable
  • Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.

    • The BVA-200s is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds!

    Auto Meter Battery Tester & Charging Systems Analyzers are invaluable tools that will help diagnose some of those pesky vehicle problems that pop up along the way.

Part TypeBattery Tester
Product LineAuto Meter Battery Tester & Charging Systems Analyzers
BrandAUTO METER
Package Height8.1
Package Width11.8
Package Length18.5
Weight7.5 PG
Part CategoryAccessories
Ampere Range0-120 amps
QuantitySold individually
Lcd ReadoutYes
Part FitmentUniversal
Voltage Range0-30 V
Vendor Part NumberBVA-200S
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
