Vehicle Info NeededAUTO METERPART NUMBER: 105-BVA-300

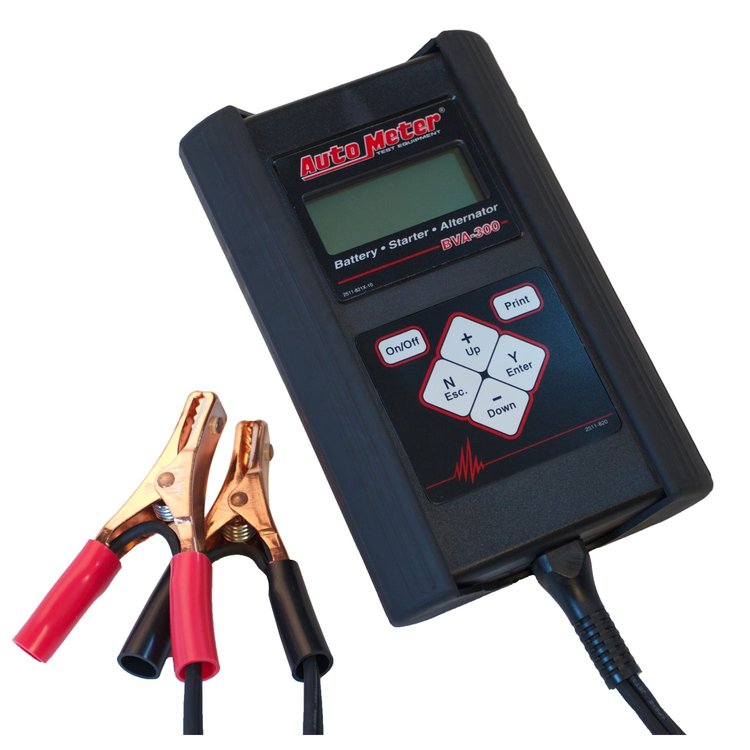

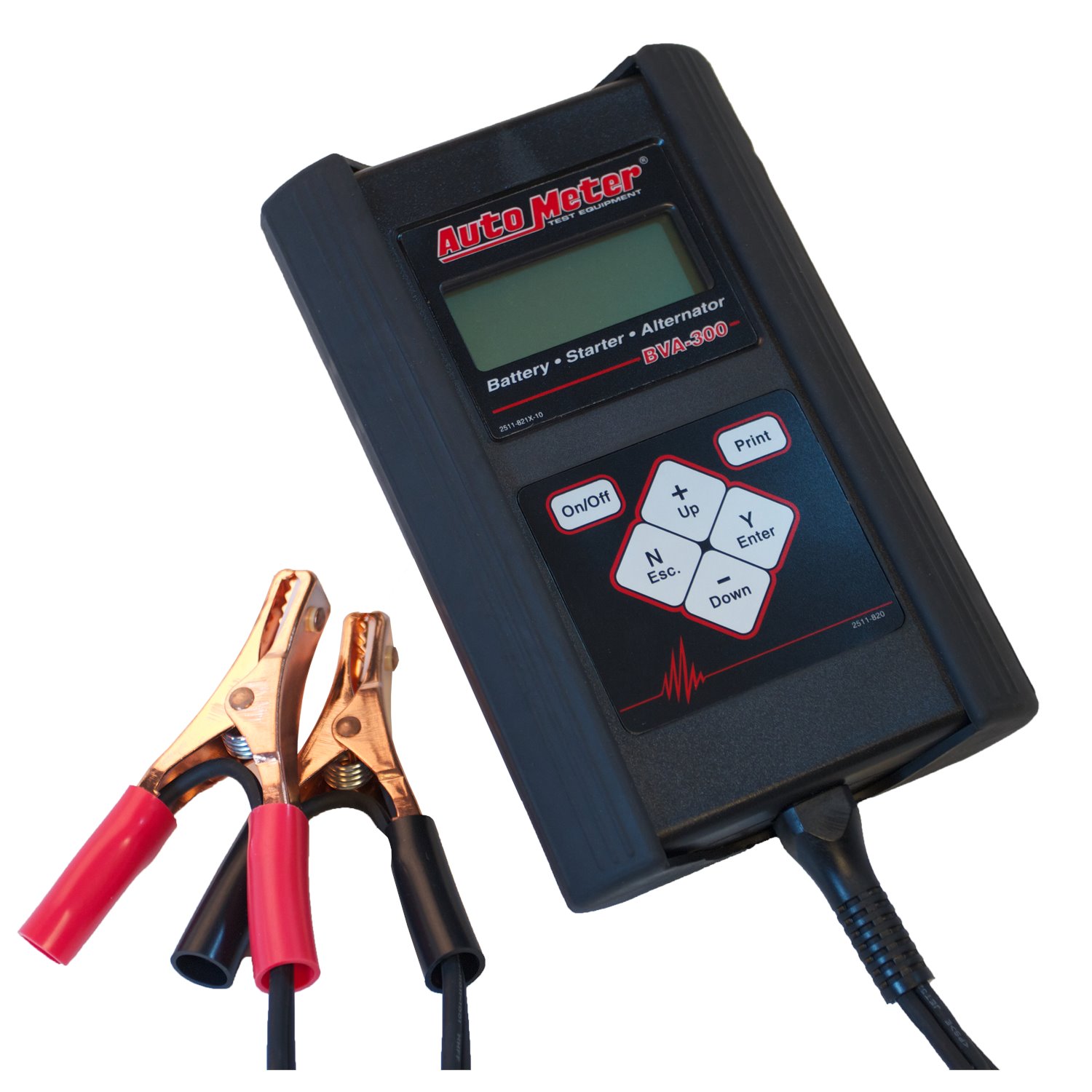

BVA-300 Battery Tester/Charging System Analyzer Automated 40 Amp Resistive Load
$50499
Ships on 09/09/2026
Lowest Price Guarantee![Digital Battery Analyzer [12V DC]](https://www.jegs.com/images/mini_200/500/555/555-w2998.jpg)
Battery Testers
- BVA-300 Battery Tester/Charging System Analyzer
- Automated 40 Amp Resistive Load
These four handheld testers for automotive and specialty applications incorporate a state-of-the art micro-processor and Auto Meters patented Advanced Digital Pulse Load Technology for True-Load results.Features - Communication with optional PR-15 infrared printer or AC-12 PC cable
- Easy to read 64 character 4 line LCD screed
- Tests discharged batteries
- Internal Battery (Included) - 9 Volt Alkaline
- Reverse polarity protection
- Cooling - Vented
- Humidity - 0to 85% non condensing
- Operational Temperature 0°-120°
- Detects bad cells
Application: 6V & 12V Automotive, Marine & Commercial Batteries. 12V & 24V Starting and Charging Systems. Battery Sizes: 6V & 12V, 200-1600 CCA, 250-2000 CA, 250-2000 MCA, 175-1500 EN, 125-1050 IEC, 100-900 DIN. Starter Draw: 0-999 Amps (+/-10%). Alternator Diagnostics: Regulation (Low, Good or High), Diodes (Good or Bad), Output (Low, 20-50 Amps, Over 50 Amps). Load: Automated 40 Amp Resistive Load. Display: 4x16 Character Wide Temperature LCD. Housing: Acid Resistant ABS Plastic w/Protective Boot. Memory: Last 50 Tests. Load Clamps: 2-1/2 feet 16 AWG Cables w/Insulated Volt and Amp Conductors and 4-Wire Kelvin Jaws for Accurate Measurements. Voltage Range: 0 to 32 Volts, 0.01V Resolution, +/-0.05V, Test Batteries Down to 0.50 Volts. Power Requirements: 9V Alkaline Battery. Operating Temperature: 0° to 120°F. Interface Options: IR Printer, PC via RS-232. Size: 4-1/2' x 7-1/8' x 1-3/8'. Weight: 1-1/2 lbs. - Tests flooded, deep cycle, and AGM batteries with CCA range of 100-1600 - also detects discharged batteries, bad cells, and has built in reverse polarity protection.
- Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 40 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use and more accurate.
- Automatically stores the last 100 tests in memory.
- 30" - 16 gauge leads with professional grade clamps that are easily field serviceable.
- Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
- English and Spanish language menus and test results.
- Perfect tool box tester! Rugged engineered composite housing with protective rubber boot for years of service.
- Intuitive menu driven operation, transmitted via back lit LCD screen for ease of use.
- Utilizes advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery's ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests
- Battery test results include: Measured true CCA, voltage and percent of charge, and the battery's state of health (good, near end of life, or bad).
AutoMeter's BVA-300 is a handheld battery and electrical system tester that is a great addition to any technician's toolbox. This tester will help you rapidly and accurately diagnose battery, starter, and charging system issues with unmatched speed and accuracy with our easy to use testing protocol. Featuring AutoMeter's patented and award winning Digital Pulse Load (DPL) technology', this tester delivers a true on-board 40 amp load for unmatched accuracy. Capable of performing a full electrical system test (battery, starting, and charging system) in less than 82 seconds, the BVA-300 represents the ultimate in value, convenience, and ease of use.
Part TypeBattery Tester
BrandAUTO METER
Package Height2.3
Package Width5.3
Package Length11.4
Weight2.53 PG
Part CategoryAccessories
Ampere Range0-40 amps
QuantitySold individually
Lcd ReadoutYes
Part FitmentUniversal
Voltage Range0-30 V
Vendor Part NumberBVA-300
Package Qty1
Package TypeEA
