Vehicle Info NeededAUTO METERPART NUMBER: 105-DM-40

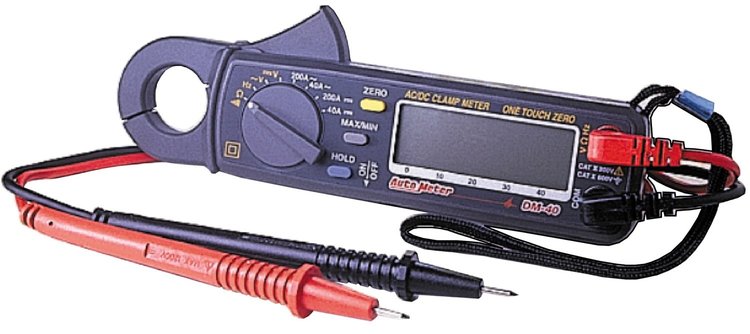

DM-40 Digital Volt/Ohm/Ammeter
$36199
Ships on 09/08/2026
Lowest Price GuaranteeCircuit Testers
- DM-40 Digital Volt/Ohm/Ammeter
- Digital Circuit Tester w/ 23mm inductive pick-up clamp which is designed to easily enclose small wires while being large enough to measure most large wires.
- Fast one-touch freeze button for capturing vital information
- Features a "Hold" button that freezes the current test parameter, and is sophisticated enough to perform a complete charging system analysis.
- Works on AC and DC circuits
- Low resolution DC amp range for easy detection of parasitic drain
- Small convenient size that includes protective carrying case
The DM-40 is designed with the professional technician in mind. This compact 23mm (15/16") inductive clamp multimeters are designed to easily enclose small wires and yet are large enough to measure most large wires. You can easily measure computer memory draw, leakage currents and more with their large LCD readout. Also features a "Hold" button that freezes the current test parameter, and is sophisticated enough to perform a complete charging system analysis.
Digital Display: 3.75" LCD with 40 seg. bar graph
Weight: .58 lbs.
AC/DC Current 40A with 10ma Resolution, 0-150A with 100mA Resolution, 150-200A with 100mA Resolution
AC/DC Current Overload Protection: 400A
AC/DC Voltmeter Range: 0-400 with .01V Resolution, Overload Protection 800V AC or 1000V DC
Battery: 1.5V with low battery indication
Continuity: 40-400 Ohms with .1 Ohm Resolution, Beeping <40.0 Ohms (approx.)
Continuity Overload Protection: AC 600V
Frequency: 100-1000K Auto Ranging, with a 0.01-100 Resolution, 2V Sensitivity
Frequency Overload Protection: AC 600V
Resistance: 40-400 Ohms with .1 Ohm Resolution
Resistance Overload Protection: AC 600V
This compact 23mm (15/16") inductive clamp multimeters are designed to easily enclose small wires and yet are large enough to measure most large wires. You can easily measure computer memory draw, leakage currents and more with their large LCD readout.
Part TypeMultimeter
BrandAUTO METER
Package Height2.5
Package Width4.5
Package Length9.0
Weight2.0 PG
Part CategoryAccessories
Case IncludedNo
User Manual IncludedNo
BacklitNo
QuantitySold individually
Lcd ReadoutYes
Power Supply1.5 V battery
Vendor Part NumberDM-40
Package Qty1
Package TypeEA
