Vehicle Info NeededAUTO METERPART NUMBER: 105-RC-300

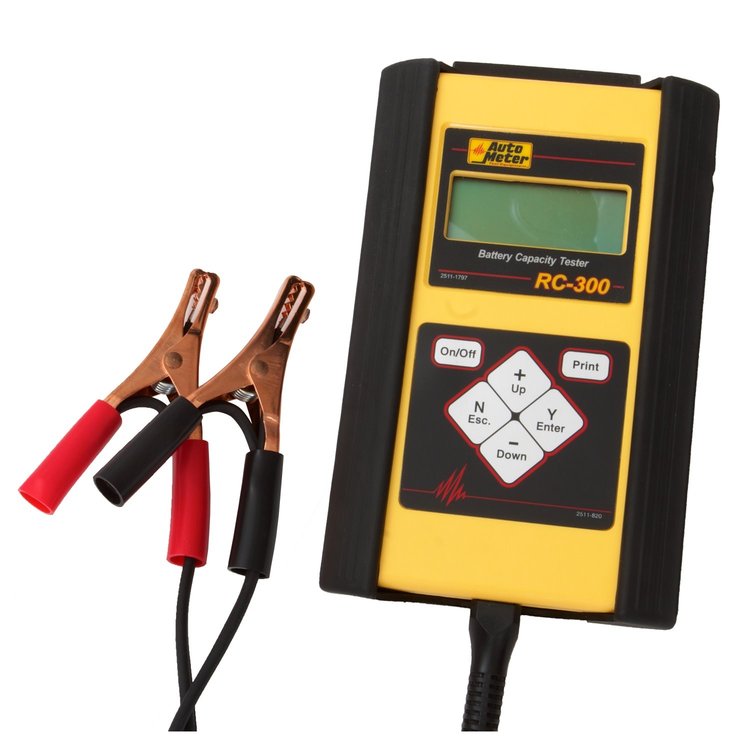

RC-300 Battery Tester SLA & Power Sport Battery Tester
$50999
1 left in stock
Ships Today
Lowest Price GuaranteeBattery Testers
- RC-300 Battery Tester
- SLA & Power Sport Battery Tester
- On-Board 40 AMP Load Test
These four handheld testers for automotive and specialty applications incorporate a state-of-the art micro-processor and Auto Meters patented Advanced Digital Pulse Load Technology for True-Load results.Features - Communication with optional PR-15 infrared printer or AC-12 PC cable
- Easy to read 64 character 4 line LCD screed
- Tests discharged batteries
- Internal Battery (Included) - 9 Volt Alkaline
- Reverse polarity protection
- Cooling - Vented
- Humidity - 0to 85% non condensing
- Operational Temperature 0°-120°
- Detects bad cells
Application: 6V & 12V Automotive, Marine & Commercial Batteries. 12V & 24V Starting and Charging Systems. Battery Sizes: 6V & 12V, 4AH - 50AH. Starter Draw: 0-999 Amps (+/-10%). Alternator Diagnostics: Regulation (Low, Good or High), Diodes (Good or Bad), Output (Low, 20-50 Amps, Over 50 Amps). Load: Automated 40 Amp Resistive Load. Display: 4x16 Character Wide Temperature LCD. Housing: Acid Resistant ABS Plastic w/Protective Boot. Memory: Last 50 Tests. Load Clamps: 2-1/2 feet 16 AWG Cables w/Insulated Volt and Amp Conductors and 4-Wire Kelvin Jaws for Accurate Measurements. Voltage Range: 0 to 32 Volts, 0.01V Resolution, +/-0.05V, Test Batteries Down to 0.50 Volts. Power Requirements: 9V Alkaline Battery. Operating Temperature: 0° to 120°F. Interface Options: IR Printer, PC via RS-232. Size: 4-1/2' x 7-1/8' x 1-3/8'. Weight: 1-1/2 lbs. - Tests SLA , Flooded, Gel Cell, or AGM batteries. Also tests discharged batteries and detects bad cells.
- Applies a true 40 amp load during testing to simulate real world operating conditions and provide more accurate test results.
- Tests 6V and 12V batteries rated between 4AH - 50AH.
- Stores the last 50 tests in memory
- The RC-300 enables the user to "blue print" known good batteries of different types/sizes to drive improved testing accuracy. The unit will store up to 40 different "blue printed" battery types. The user can also set customized pass/fail settings based on their preferred profile.
- Test results include: battery's measured amp hour (AH) capacity, battery voltage and percent of charge, and what the battery's state of health is (good, near end of life, or bad).
- 30" - 16 gauge leads
- Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
- Tough impact resistant plastic housing with easy grip rubber booth that prevents damage to the unit.

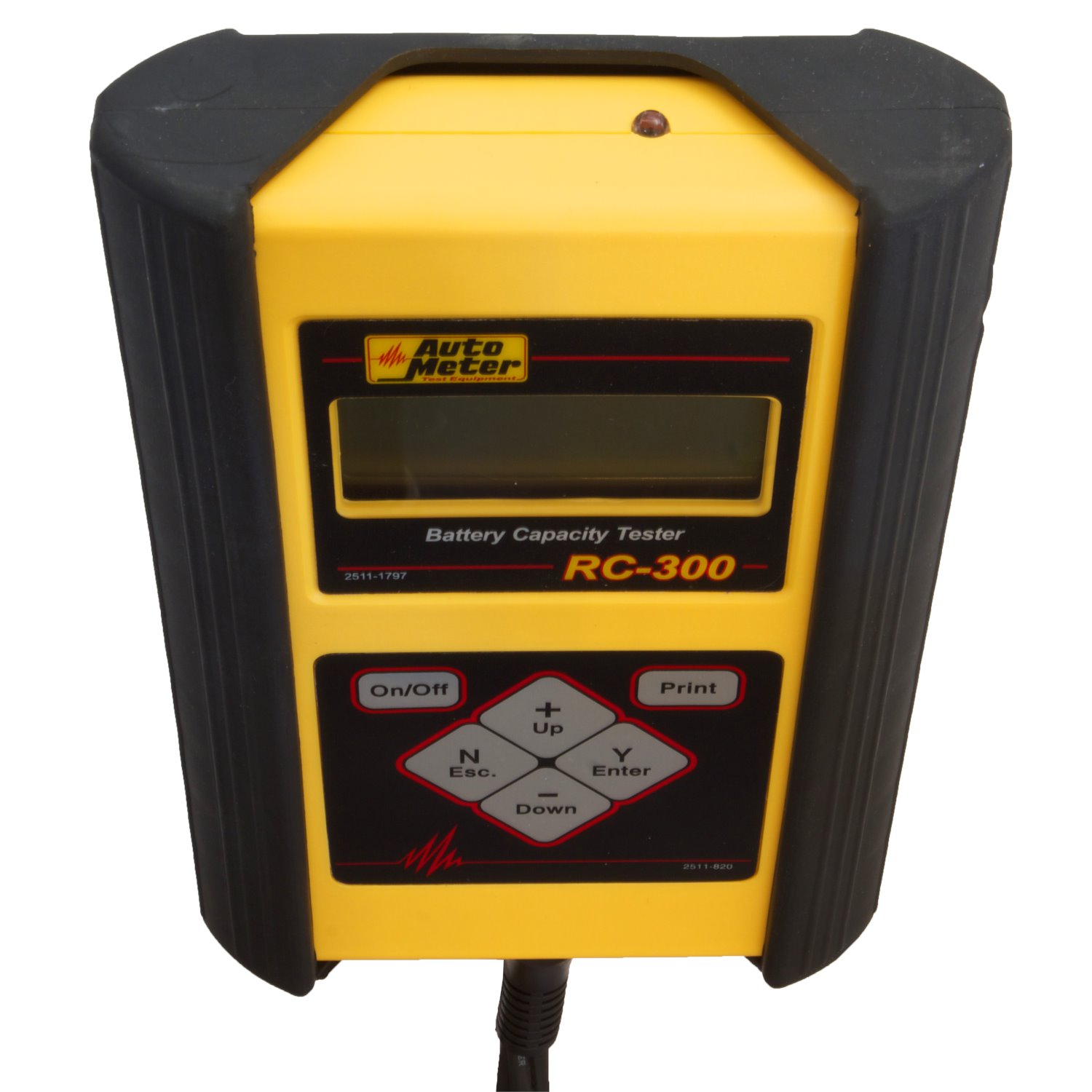

The RC-300 is a portable, fully featured tester that provides quick and accurate results utilizing AutoMeter's Award Winning "Digital Pulse Load" technology. The RC-300 is uer friendly, instructing the user exactly what to do while testing an SLA battery. Professionally accurate test results are shown on a LCD display after each test. The RC-300 has a built in memory so you can easily review and/or print test results.
Auto Meter Battery Tester & Charging Systems Analyzers are invaluable tools that will help diagnose some of those pesky vehicle problems that pop up along the way.
Part TypeBattery Tester
Product LineAuto Meter Battery Tester & Charging Systems Analyzers
BrandAUTO METER
Package Height2.0
Package Width5.0
Package Length11.0
Weight1.8 PG
Part CategoryAccessories
Vendor Part NumberRC-300
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
