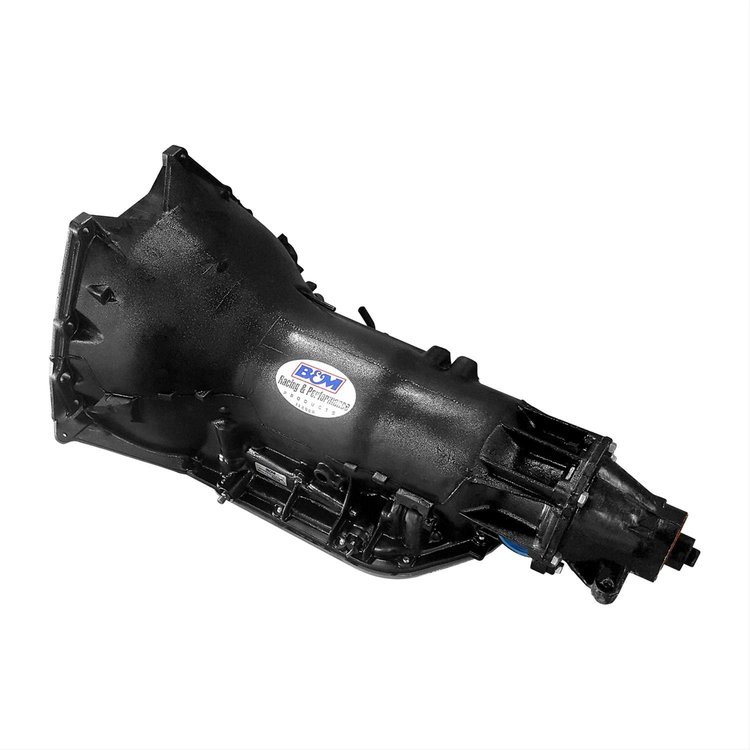

Street & Strip Automatic Transmission GM TH400 w/B.O.P. Transmission to Chevy Engine Adapter

Name: Street & Strip Automatic Transmission GM TH400 w/B.O.P. Transmission to Chevy Engine Adapter
Brand: B&M
SKU: 130-112003
Price: 1679.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Street/Strip Automatic Transmission

GM TH400 (2WD)

600 Max Horsepower/550 lb. ft. Torque

Includes B.O.P. Transmission to Chevy Engine Adapter

(Buick, Oldsmobile and Ponitac) with large diameter bushing for use with large diameter yoke (1-7/8"; spicer yoke #2-3-10431X)

Includes a B&M Racing B.O.P./Chevy adapter plate so you can also use this transmission on 1962 and later Small Block and Big Block Chevy engines
4" Tailshaft
7" Separation On Top Bellhousing Bolts
2.48:1 first gear ratio
1.48:1 second gear ratio
Rebuilt front pump utilizes B&M pressure regulator spring and shims
All new B&M high performance friction plates
New intermediate roller clutch
New kickdown band with welded anchors
Machined center support with new case saver ring
All new thrust bearings and races
New adjustable modulator and silencer ring
New external electric connector and kickdown solenoid
Recalibrated valve body
Standard Forward Shift Pattern

B&M Street/Strip Automatic Transmission - Buick, Oldsmobile, Pontiac TH400.

Includes B&M B.O.P. Transmission to Chevy Engine Adapter

High Performance Street/Strip Applications

Fits Buick, Oldsmobile and Pontiac Engines

Recalibrated Valve Body and Chrome Pan

Over 65 Years of Proven B&M Quality

High Performance Friction Materials

Part TypeAutomatic Transmission

BrandB&M

Package Height21.2

Package Width24.1

Package Length34.25
