Vehicle Info NeededB&MPART NUMBER: 130-117101

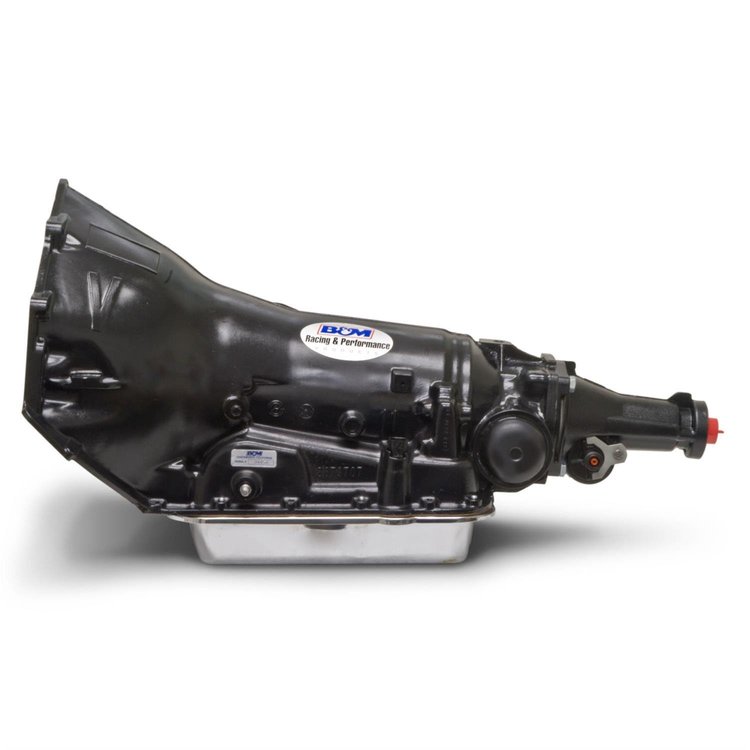

Street/Strip Automatic Transmission 1984-Up GM TH700R4/4L60 (2WD) With 30-Tooth Spline Converter
$2,59999
Truck Freight
Ships on Sep 16, 2026
Lowest Price GuaranteeGM
- Street/Strip Automatic Transmission
- 1984-Up GM TH700R4/4L60 (2WD) With 30-Tooth Spline Converter
- Except Electronic Shift Model, 60-Degree Angled V6 & Corvette
Suitable for use behind engines producing up to 450 lb/ft of torque which covers most small blocks and mild big blocks. A low first gear ratio and overdrive 4th make these very desirable units. Won't replace 4L60E applications (post 1993). - 3.06:1 first gear ratio
- 1.63:1 second gear ratio
- Corvette 2-4 servo assembly
- Recalibrated valve body
- New overdrive sprag assembly
- new external electric connector
- Rebuilt front pump and governor with new gear
- All new B&M high performance friction plates
- New thrust washer kit
- Races
- Thrust bearings, bushings and 2-4 band
- High performance reaction carrier assembly
- Heavy duty sunshell
- Improved lubrication on sun gear
- Forward Pattern
- Re-calibrated High Performance Valve Body
- All New Performance Friction Materials
- Performance Automatic Transmission
- Forward Shift Pattern
B&M Street/Strip Automatic Transmission - Chevrolet 700R4/4L60.
Part TypeAutomatic Transmission
BrandB&M
Package Height23.8
Package Width24.5
Package Length31.0
Weight146.0 PG
Part CategoryPerformance Parts
Automotive Item GradeHigh Performance
Flexplate Shield Built InNo
Transmission Drive TypeRWD
Pan TypeStock
First Gear Ratio (Automatic Transmissions)3.06
QuantitySold individually
Yoke StyleSlip On
Dipstick IncludedNo
Valve Body StyleAutomatic
Trans-Brake IncludedNo
Tailshaft Length7.25 in (184.2 mm)
Input Spline Quantity30 in (762 mm)
Trans ModelGM- TH700 R4 (Auto)4 Speed
Fluid Fill LocationCase
Part FitmentSemi Universal
Case MaterialAluminum
Transmission Shield Built InNo
Safety RatingNot SFI Approved
LockupYes
Vendor Part Number117101
Package Qty1
Package TypeEA
