Vehicle Info NeededBD DIESELPART NUMBER: 151-1030348

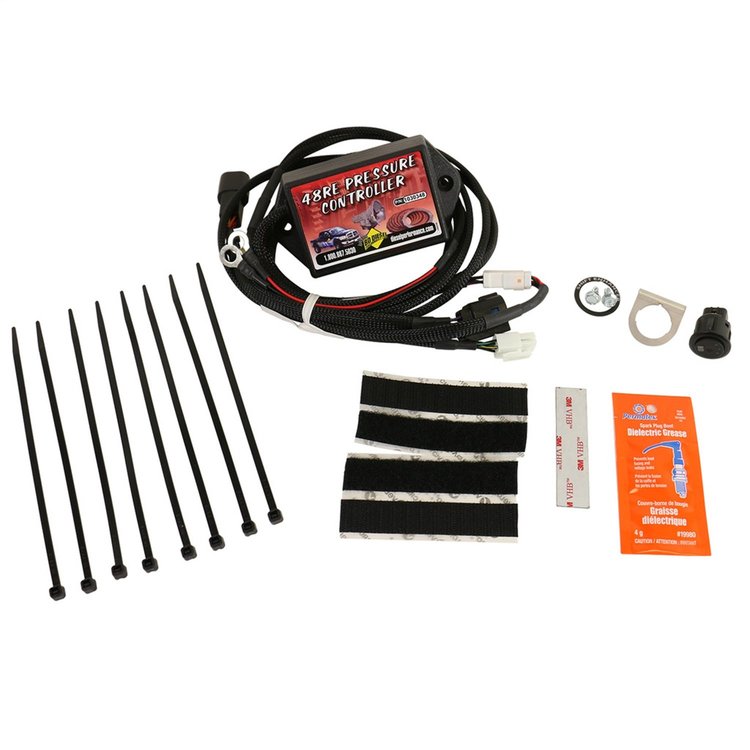

1030348 Pressure Controller 2004.5-2007 Dodge for Cummins Diesel 5.9L
$45995
Ships on 09/09/2026
Lowest Price Guarantee48RE Pressure Controller
- Pressure Controller
- 2004.5-2007 Dodge for Cummins Diesel 5.9L
- 48RE Transmission
- Prevent torque converter shudder and clutch slippage on the 2004.5-2007 Dodge 5.9L with 48RE transmissions by installing the BD 48RE Pressure Controller. Easily plugs inline with factory sealed connectors to the 48RE TTVA motor on the driver's side of the transmission making for a clean installation.
- Like its predecessors (47RH/47RE), the 48RE transmission's low mainline pressure at lighter throttle pedal position can cause shudder and slippage. When coupled behind the Common Rail 5.9L Diesel engine with its peak torque at mid-range RPM's, this potential shudder and slippage can be amplified.
- When engaged with the rotary switch mounted on the dash, the Pressure Controller has three different levels that can be selected to increase mainline pressure by mimicking higher throttle positions, preventing mid-range convertor shutter and clutch/band slippage.
- The Pressure Controller is designed to almost eliminate all shuttle shifting with light throttle and as an added feature, this unit slightly holds or delays shifting to prevent lugging and improve transmission function - reduces shift flare and gear hunting.
- The Pressure Controller increase is at its greatest during light throttle positions and ramps towards stock pressures as the pedal gets closer to full throttle when the extra pressure is no longer needed.
- With performance modules for the 5.9L Diesel engine, the increase in horsepower tends to make the driver apply less throttle to obtain desired vehicle speeds. In turn, the less APPS Accelerator Pedal Position Sensorapplied causes lower mainline transmission pressures to be developed causing potential shudder and slippage. The Pressure Controller compensates for lower APPS Accelerator Pedal Position Sensorand brings the pressure up to a level to protect the transmission and converter.
- Compared to some of the competition on the market, the BD 48RE Pressure Controller has higher pressure, more elaborate control and easy factory plug-in installation. Another reason to think BD when looking for your Diesel transmission needs.
Part TypeAutomatic Transmission Pressure Control Solenoid
BrandBD DIESEL
Package Height2.3
Package Width6.6
Package Length8.8
Weight1.05 PG
Part CategoryPerformance Parts
Trans ModelDodge- 48RE (Auto)4 Speed
Trans Year2004
Part FitmentDirect Fit
Vendor Part Number1030348
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
