Dodge PressureLoc Kits 1994-2004 Dodge Ram
Product Discontinued
BD DIESELPART NUMBER: 151-1030377

Dodge PressureLoc Kits 1994-2004 Dodge Ram

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

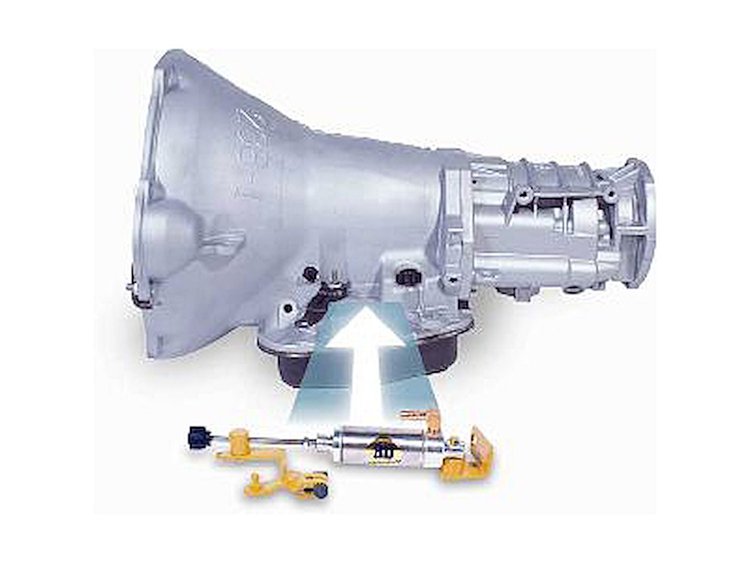

Dodge PressureLoc Kits
    Dodge PressureLoc Kits
  • 1994-2004 Dodge Ram
  • 47RH/RE

  • Increases Main Line Clutch Apply Pressure
  • Reduces Torque Converter Shuddering
    A BD Diesel Performance PressureLoc System increases converter lock-up clutch applied pressure on 1994-04 Dodge trucks by30% at light throttle pressure. The kit can easily be installed on the stock transmission and assists in preventing converter shuddering and transmission slippage. Torque converter clutch slippage results in high heat and eventual transmission failure. The higher the HP, the lower the transmission line pressure is because line pressure is controlled by the position of the throttle pedal. The diesel has so much torque at light throttle pedal moverment and thus low apply pressure at the lock-up clutch when the engine is at its peak torque.

    You can notice a shuddering torque converter under throttle at low speeds and also under heavy throttle with high power engines. The kit's function is to increase the transmission line pressure when the lock-up clutch is engaged. The PressureLoc cylinder rotates the transmission's throttle valve shaft to simulate 3/4 throttle travel to increase the line pressure to 90% of what the valve body design can attain at wide open throttle. The resulting pressure must be measured and set when the kit is installed. The PressureLoc is primarily designed for stock or mildly modified engine applications and owners who have installed an exhaust brake and want some extra protection. It is not a replacement for a modified valve body! High horsepower and heavy-loaded applications should also be equipped with a BD Valve Body with larger porting for pressures up to 180psi. The PressureLoc increases the clutch applied pressure to 90% of what the valve body is capable of achieving at full throttle when you are only at 1/4 to 3/4 throttle travel. This kit addresses the need for more clutch holding pressure.

Product LineBD Diesel Performance Torque Converter PressureLoc System
BrandBD DIESEL
Package Height3.0
Package Width8.0
Package Length10.0
Weight2.6 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
