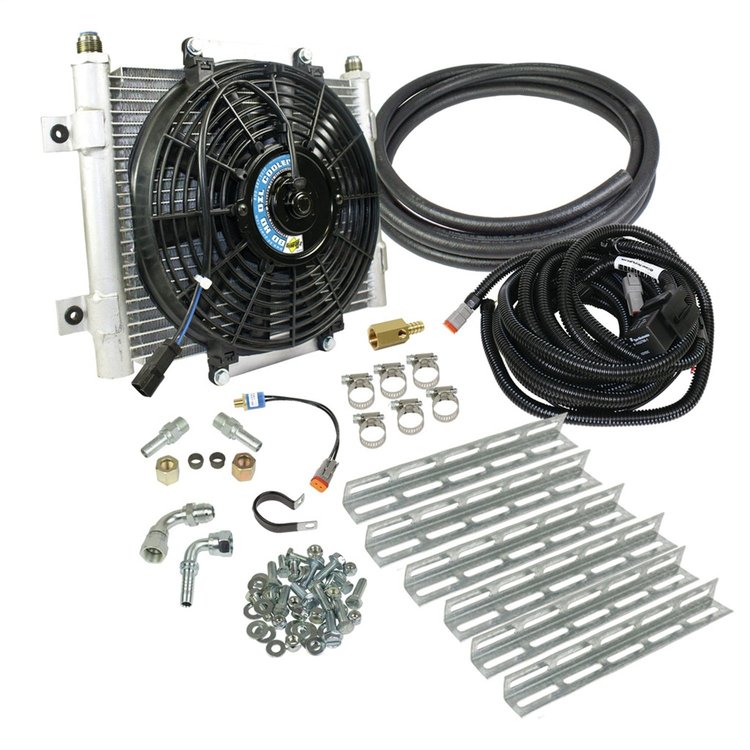

1030606-1/2 Xtruded Trans Oil Cooler 1993-2012 Dodge 47RH,47RE,48RE and 68RFE

Name: 1030606-1/2 Xtruded Trans Oil Cooler 1993-2012 Dodge 47RH,47RE,48RE and 68RFE
Brand: BD DIESEL
SKU: 151-1030606-1/2
Price: 746.95 USD
Availability: InStock

^$746⁹⁵

Ships on Sep 08, 2026

Lowest Price Guarantee

Transmission Coolers

1993-2012 Dodge 47RH,47RE,48RE and 68RFE
2003-2010 Ford 5R110
Transmission Oil Cooler

Heat can kill your Transmission whether pulling heavy loads up long steep grades, or just hauling more than you can handle. Overheated oil can reduce the life of your transmission and leave you broken down in the middle of nowhere. BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is in their air-to-air Charge Air Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Shared Features:

High efficiency Micro Extruded bar technology provides 22% more cooling over other designs
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails tested to 300psi of pressure
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW
Complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit
Pre-wired loomed harness with fuse and relay with OEM style sealed connectors

Part TypeAuto Trans Oil Cooler

Product LineBD Diesel Xtruded Transmission Oil Coolers

BrandBD DIESEL

Package Height7.7

Package Width14.6

Package Length17.4

Weight16.88 PG

Part CategoryPerformance Parts

Gross Vehicle Weight (Lbs.)N/A

Part FitmentDirect Fit

Vendor Part Number1030606-1/2

Package Qty1
