BD Diesel 1031315 Features:

Allison transmissions utilize variable line pressure that adjusts to different engine load to improve fuel economy. The problem with this is that it drops line pressure after a shift, causing clutch slippage and failure in higher powered trucks. The BD pressure controller module boosts line pressure up to 275psi when the engine is over 15psi boost and runs stock pressure under normal conditions prevent harsh shifting. The kit is fully plug-and-play. It plugs into factory connectors and requires no special setup.

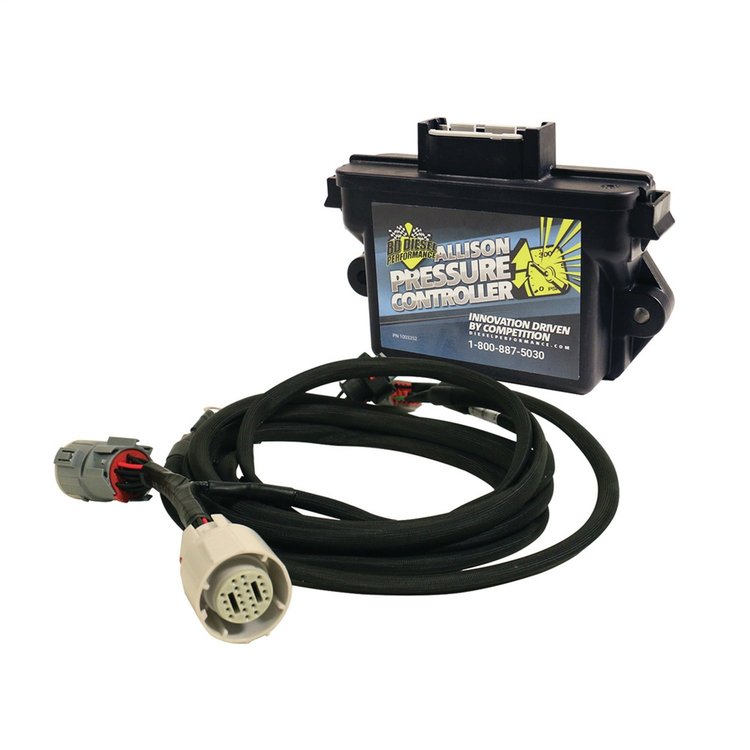

The Allison Pressure Controller for 2011-2016 Chevy Duramax pick-ups delivers up to 275psi line pressure inside the transmission, giving 25% to 115% more theoretical holding power and help prevent burned up clutches - a great way to increase the longevity of the Allison transmission for towing, street and race applications. Unlike simple solenoid foolers or plugs which are active all the time, the Allison Pressure Controller is only operational when turbo boost exceeds 15psi, and, does not create extra heat when inactive or cause clunky/unusual shifts. Installs quickly in under an hour.

• 136 Percent Better Temp. Drop Than XTRUDED Single Core Kit
• Build-It-Yourself Galvanized Bracket Kit For Quick Installation
• Double Stacked Cores Deliver 40000 BTU/HR of Cooling
• Furnace Brazed Rails Have Been Tested to 300psi of Pressure
• Large 5/8-inch Ports Prevents Inlet/Outlet Restriction
• Large Surface Area To Transfer Heat For External Air Flow Cooling
• Over 350 Percent Temperature Drop Versus The Factory System
• Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
• Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
• Turbulent Oil Flow Design Promotes a More Complete Cooling
• Engine: Motorhome Diesel Power
• Make: Ford
