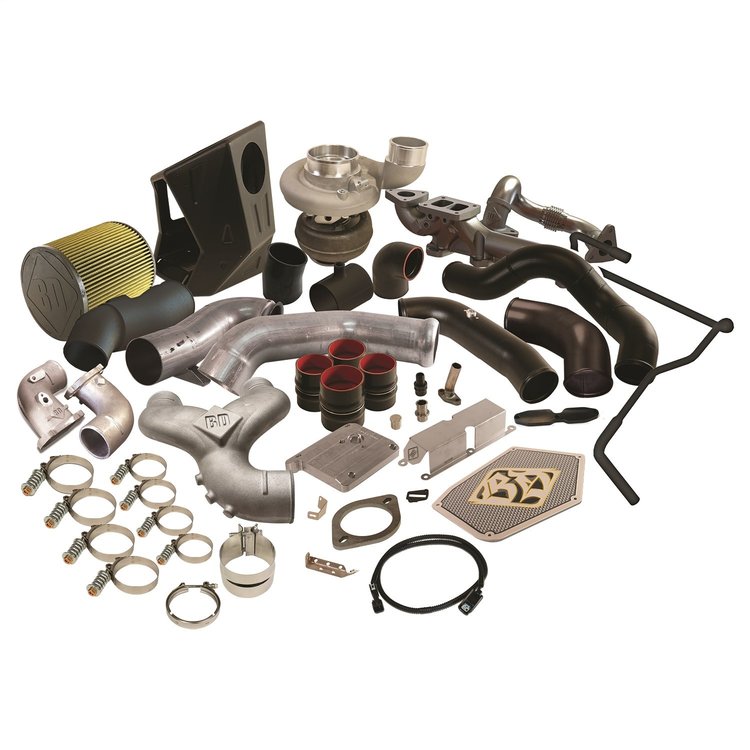

Scorpion S363SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350

BD DIESEL PERFORMANCE 1045804 Features:

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.

• Borg Warner S363SX-E series turbocharger with FMW
• Larger turbochargers available for even higher horsepower
• Race tune required (not included)
• 0.91 AR Ratio
• BD 90-deg compressor cover with 2.75in outlet
• BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
• BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
• BD high strength A356 aluminum intake horns
• BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
• BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
• BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
• BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
• Stainless heat shield keeps heat in and intake temperatures down
• Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
• BD Boot Lock ready with boss positions on intake and outlets
• Compatible with stock or aftermarket water-to-air intercooler

Emissions Note:

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
