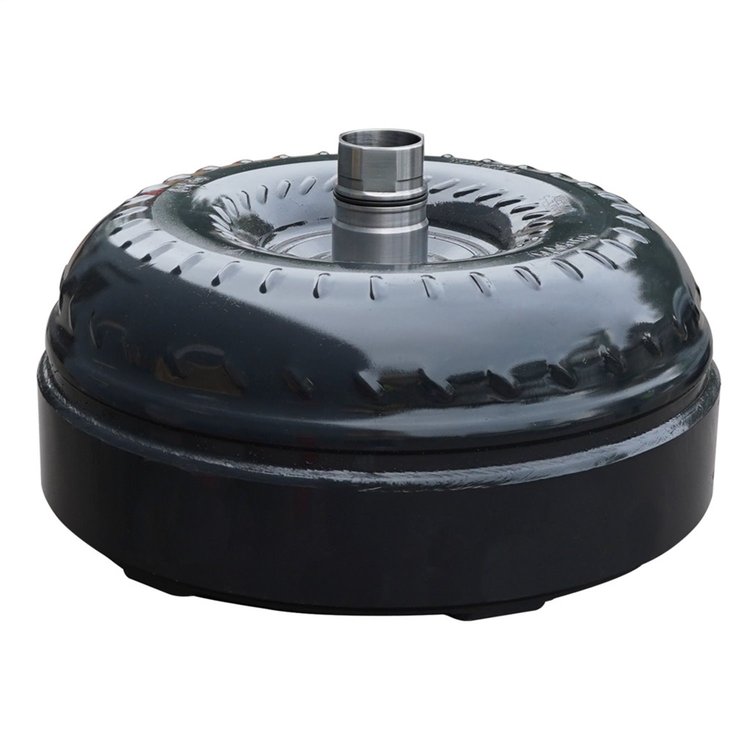

BD Diesel 1071220LX Features:

Machined pistons, HD springs absorb shock of engagement, stamp forged 1-piece cover. Eliminates warpage from clutch heat. Taller cover can be rebuilt more often, trapezoid teeth design. Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings - not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Reduced overall weight by 12lbs compared to competitors. Warranty- Parts: 36 Month/150,000 miles, Labor 12 Month/12,000 Miles.

Not all multi-disc converters are created equal and with BD's ProForce 3D, less is more. Our in-house CNC machined billet cover is designed to prevent warping and improper balancing. With our cover design, we were able to increase strength while maintaining the factory height. We have engineered the clutch piston and damper assembly for increased strength, while retaining smooth and reliable vibration damping. With self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment and less wear resulting a longer converter life cycle.

• Anti-Shuttle Technology With Higher Pressures
• Hand-lapped Surfaces Prevent Internal Leakage
• Improved Shift Quality
• Increased Clutch Holding Capacity
• Larger Oil Ports
• Modified Tuned and Tested To Provide Optimum Performance
• New Springs
• New Trim Valves Increase Mainline Pressure
• Proprietary Governor Piston Dimensions
• Reduced Friction and Extends Transmission Life
• Revised Valve Design
• UPS Shipping Label Included To Return Back Core For Free USA ONLY
• Engine: 5.9L Cummins 98.5-02 24-Valve
• Make: Dodge
