Vehicle Info NeededBD DIESELPART NUMBER: 151-1300601-DS

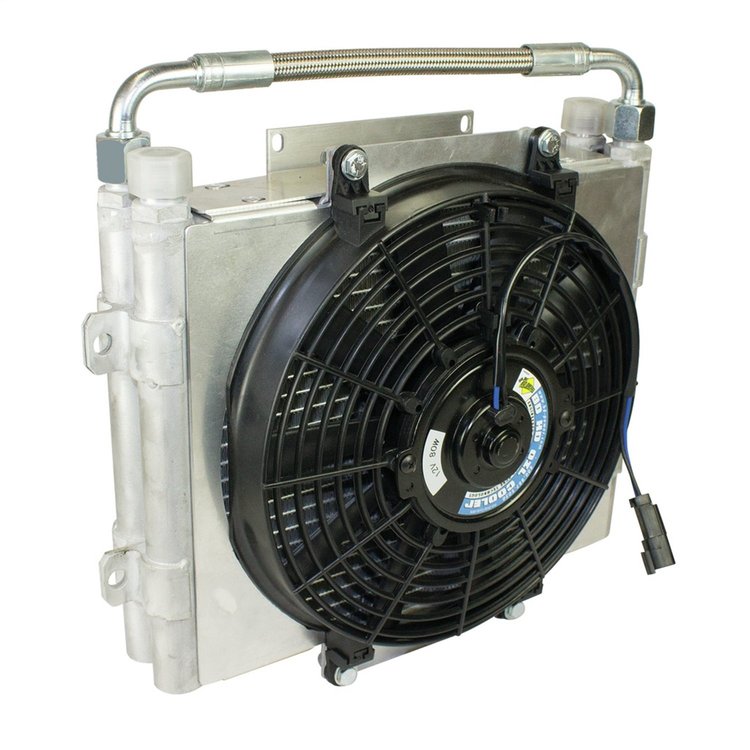

1300601-DS Xtruded Double Stack Transmission Cooler Cooler Only
$72395
4 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeDouble Stacked Transmission Coolers
Xtruded Double Stack Transmission CoolerCooler Only
BD DIESEL PERFORMANCE 1300601-DS Features:
HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.- Double stacked cores deliver over 40,000 BTU/HR of cooling
- Over 350% temperature drop versus the factory system
- 136% better temperature drop than XTRUDED single core kit
- Motor is IP54 with 65% duty cycle
Heat can kill your Transmission whether pulling heavy loads up long steep grades, or just hauling more than you can handle. Overheated oil can reduce the life of your transmission and leave you broken down in the middle of nowhere. BD's Xtruded Transmission Oil Coolers use the same high efficiency Micro Extruded bar technology that is in their air-to-air Charge Air Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.
Show More
Shared Features:
- High efficiency Micro Extruded bar technology provides 22% more cooling over other designs
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails tested to 300psi of pressure
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW
- Complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit
- Pre-wired loomed harness with fuse and relay with OEM style sealed connectors
Part TypeFluid Cooler
Product LineBD Diesel Xtruded Transmission Oil Coolers
BrandBD DIESEL
Package Height10.4
Package Width15.5
Package Length22.6
Weight13.03 PG
Part CategoryPerformance Parts
Gross Vehicle Weight (Lbs.)N/A
Part FitmentSemi Universal
Vendor Part Number1300601-DS
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
