Vehicle Info NeededBE COOL RADIATORSPART NUMBER: 134-22168

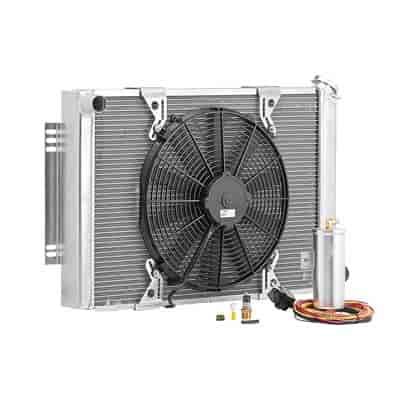

Aluminator Aluminum Radiator Module 1967-69 Camaro/Firebird
$1,01999
Ships on 11/17/2026
Lowest Price GuaranteeItems You Need
![Workbench Utility Mat [24 in. x 16 in.]](https://www.jegs.com/images/mini_200/500/555/555-80170.jpg)
![16705 Service Pro Antifreeze Concentrate [1 gallon]](https://www.jegs.com/images/mini_200/700/708/708-16705.jpg)
![No Spill Coolant Filling Funnel Kit [15-Piece]](https://www.jegs.com/images/mini_200/500/555/555-51220.jpg)
![Racing Super Coolant Additive [16 oz.]](https://www.jegs.com/images/mini_200/500/555/555-72324.jpg)
![Racing Coolant and Antifreeze with LP-3 [1 Gallon]](https://www.jegs.com/images/mini_200/500/555/555-72316.jpg)
![Ice Water Racing Coolant [1 Gallon, Non-Glycol]](https://www.jegs.com/images/mini_200/500/555/555-72314.jpg)
![Funnel [8.5 in. Overall Length]](https://www.jegs.com/images/mini_200/500/555/555-w4064.jpg)
![Heavy-Duty Steel Workbench [59.5 in. x 27.5 in. Bench Top]](https://www.jegs.com/images/mini_200/500/555/555-81440.jpg)
Automatic Transmission Applications
- Aluminator Aluminum Radiator Module
- 1967-69 Camaro/Firebird
- Automatic Transmission
- Small & Big Block
- Overall Dimensions: 28.25' W x 19.75' H x 3' D
- Core Dimensions: 24.5' W x 18.5' H x 2' D
- Inlet Hose: 1-1/2' (Driver Side)
- Outlet Hose: 1-3/4' (Passenger Side)
- Equipped with automatic transmission cooler
- Voltage regulator relocation requiredIncludes:
- Radiator
- 16' electric puller fan
- Aluminum brackets (to mount fan)
- Wiring harness for fan
- Temperature sending unit
- 40 amp waterproof relay
- Aluminum vented recovery tank
- Round billet cap
Upgrade Your Radiators for High-Performance Cooling
The Aluminator's crossflow design incorporates a dual-core with 1" tubes and .080" thick aluminum tanks. Manufactured with OE-sized inlets and outlets in proper OE position, these direct-fit radiators replace stock units without modification. Every radiator is 100% pressure tested.
Show More
Features:
- Aluminum Construction with Natural Finish
- Dual 1" Tube Core
- Direct Replacement Fit
- Form-Folded Straight Tank
- Single-Pass Crossflow Design
- OE Inlet/Outlet Size and Location
- Billet Filler Neck with High-Capacity Overflow Tube
- Automatic Transmission Radiators Have Heavy-Duty Cooler
To further simplify your vehicle's cooling system, choose a radiator module with matched components for peak efficiency.
Modules include:
- Aluminator Aluminum Radiator
- Electric 16" Puller Fan with Aluminum Mounting Brackets
- Wiring Harness
- Temperature Sending Unit
- Waterproof 40 amp Relay
- Aluminum Vented Recovery Tank
- Round Billet Radiator Cap
Part TypeRadiator
Product LineBe Cool Aluminator-Series Factory-Fit Aluminum Radiators
BrandBE COOL RADIATORS
Package Height13.0
Package Width27.0
Package Length40.0
Weight34.1 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height19 in (482.6 mm)
Radiator Cap IncludedYes
Shroud MaterialPlastic
Inlet LocationLower passenger side
Inlet Size (In.)1 1/2
Core Width24.5 in (622.3 mm)
Row Quantity2
Overall Width30 in (762 mm)
Tube Size1 in (25.4 mm)
Radiator FinishNatural
Transmission CoolerYes
Maximum Fan Cfm1,610 cfm
Shroud ColorBlack
Radiator StyleCrossflow
Blade MaterialPlastic
Outlet Size1.75 in (44.5 mm)
Fan QuantitySingle
Radiator MaterialAluminum
QuantitySold as a kit
Core Height18.5 in (469.9 mm)
Core Thickness2 in (50.8 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
Outlet LocationUpper driver side
Fan IncludedYes
Vendor Part Number22168
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
