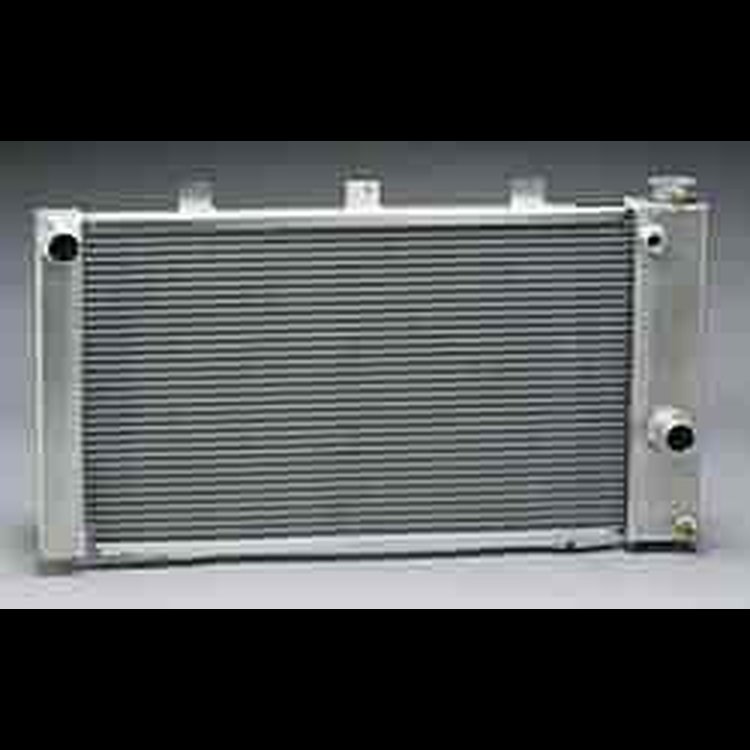

Vehicle Info NeededAluminum Radiator 1969-1982 Corvette
Ships on 09/16/2026
Lowest Price Guarantee- Aluminum Radiator
- 1969-1982 Corvette
- 32''W x 19''H
- Crossflow
- Manual Trans
- Polished Finish
Inlet Location & Size: Driver Side / 1-1/2' Outlet Location & Size: Passenger Side / 1-3/4' Core Type: Dual Radiator Height: 18-1/4' Radiator Width: 31-1/2' Radiator Thickness: 3' Radiator Core Height: 17' Radiator Core Width: 27' Radiator Core Thickness: 2' Notes: - With passenger side water pump outlet
- Use 1969-76 Corvette radiator hoses
- Direct-Fit Applications
- Aluminum with Natural or Polished Finish
- Dual 1" Cores and Hand-Fabricated Tanks
- Epoxy-Free Construction Dissipates Heat Better
- Billet Water Neck with High-Capacity Overflow Tube
- Internal Engine Oil Coolers
- OE-Style Petcock
- OE-Sized Inlets/Outlets
- OE-Compatible Fittings and Fan Brackets
- Provisions for Flange, Cradle, and Pin Foot Mounting
- Automatic Transmission Radiators Have Heavy-Duty Cooler
- Made in North America
Fitment Codes
A. Automatic transmission installation requires two Fittings #134-72001
B. No blower (300 horsepower maximum)
C. Modification of upper & lower hose and transmission line required for crossflow upgrade
D. With passenger-side water pump outlet
E. With driver-side water pump outlet
F. Bottom of core support requires modification
G. Replaces 28.5" core
H. Stock shroud installation requires four Brackets #134-72003
I. Some applications require Fitting #134-72011
J. Installation requires one Fitting #134-72000
K. Drilling required for flange or pin foot mount
L. Installation requires Spacers #134-72006 and #134-72007 (one each)
M. Shroud modification necessary
N. Uses 1966-67 big block radiator hoses
O. Replaces 34" core
P. 2001-02 automatic transmission applications require two Fittings #134-72002
Q. 1966-67 Oldsmobile may require top plate modification
R. Voltage regulator relocation necessary
S. Excludes diesel
T. Replaces 26" downflow
U. Use two Brackets #134-72030 to install 22" core support
V. Use 1969-76 upper hose
W. Must use short water pump
X. For standard shift 4+3 Corvette, use Radiator #134-62031
Y. Some applications require Fitting #134-72010
Z. 1992-99 Chevy/GMC radiator without raised filler neck requires GM Upper Brackets #15574275 and #15574276
AA. All Mopar with XL core: Transmission cooler is on same side as lower radiator hose (faces out toward fender)
Significantly Reduces Heat to Keep Cars on the Street!
Be Cool customers report coolant temperature drops of 20° to 40° after replacing their 4-core copper/brass/lead radiator with Be Cool's industry-leading dual 1" core aluminum radiator. In fact, Be Cool guarantees to lower coolant temperature a minimum of 20° or your money back. Be Cool has the most efficient fin design, and the all-aluminum construction is 25% more effective yet 50% lighter than copper/brass/lead radiators. These units also have the strongest tanks and mounting flanges. Their advanced vacuum braised core technology controls temperature better, while epoxy-free assembly improves heat dissipation. Every radiator is 100% pressure tested.
