Product Discontinued

Aluminum Radiator Module System 1967-69 Camaro/Firebird with LS1

Name: Aluminum Radiator Module System 1967-69 Camaro/Firebird with LS1
Brand: BE COOL RADIATORS
SKU: 134-80234
Price: 1399.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Manual Transmission Applications

Natural Finish

1967-69 Camaro/Firebird with LS1
Passenger Side Upper, Passenger Side Lower Hose
Rated up to 700 HP
29''W x 19''H
Crossflow
Manual Trans
Natural Finish

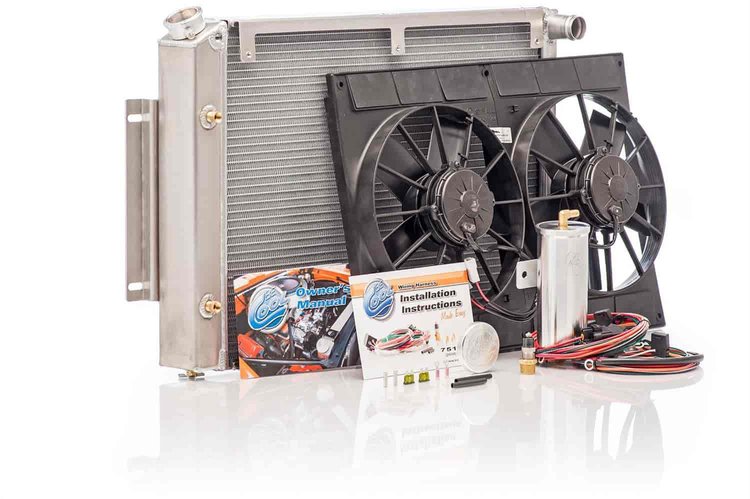

Radiator Module System Includes:
Direct-Fit Dual 1' Core Radiator
Qualifier Euro-Black Electric Fans
Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
Diamond-Cut Aluminum Coolant Recovery Tank

Billet Aluminum Round-Style Radiator Cap

Inlet Location & Size:	Passenger Side / 1-1/4'
Outlet Location & Size:	Passenger Side / 1-1/4'
Core Type:	Dual
Radiator Height:	18-1/2'
Radiator Width:	28-1/4'
Radiator Thickness:	3'
Radiator Core Height:	18'
Radiator Core Width:	24'
Radiator Core Thickness:	2'
Notes: With passenger side water pump outlet Voltage regulator relocation required.

Part TypeCooling Fan Kit

BrandBE COOL RADIATORS

Package Height13.0

Package Width28.0

Package Length40.0

Weight35.0 PG

Part CategoryPerformance Parts

Overall Thickness3 in (76.2 mm)

Overall Height19 in (482.6 mm)

Radiator Cap IncludedNo

Shroud MaterialPlastic

Inlet LocationUpper driver side

Inlet Size (In.)1 1/4

Core Width24 in (609.6 mm)

Row Quantity2

Overall Width29 in (736.6 mm)

Tube Size1 in (25.4 mm)

Radiator FinishNatural

Transmission CoolerNo

Maximum Fan Cfm2,780 cfm

Shroud ColorBlack

Radiator StyleCrossflow

Coating/FinishNatural

Blade MaterialPlastic

Outlet Size1.25 in (31.8 mm)

Fan QuantityDual

Radiator MaterialAluminum

QuantitySold as a kit

MaterialAluminum

Core Height18 in (457.2 mm)

Core Thickness2 in (50.8 mm)

Fan Diameter11 in (279.4 mm)

Blade ColorBlack

Outlet LocationLower passenger side

Fan IncludedYes

Vendor Part Number80234

Package Qty1

Package TypeEA
