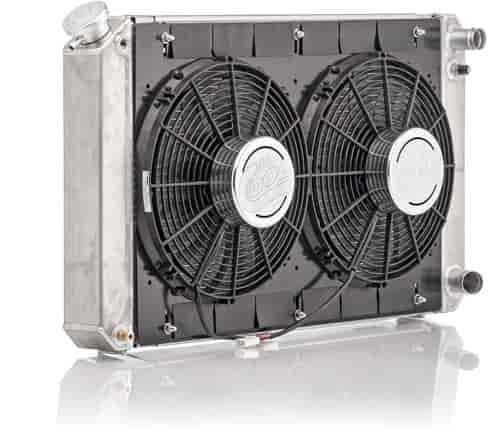

Aluminum Radiator Module System 1967-72 Chevy C10 Pickup/Blazer with LS2/LS3/LS7

Vehicle Info Needed

Aluminum Radiator Module System 1967-72 Chevy C10 Pickup/Blazer with LS2/LS3/LS7

Name: Aluminum Radiator Module System 1967-72 Chevy C10 Pickup/Blazer with LS2/LS3/LS7
Brand: BE COOL RADIATORS
SKU: 134-80311
Price: 1399.99 USD
Availability: InStock

^$1,399⁹⁹

Ships on 09/17/2026

Lowest Price Guarantee

Manual Transmission Applications

Natural Finish

1967-72 Chevy C10 Pickup/Blazer with LS2/LS3/LS7
Passenger Side Upper, Passenger Side Lower Hose
Rated up to 700 HP
34''W x 19''H
Crossflow
Manual Trans
Natural Finish

Radiator Module System Includes:
Direct-Fit Dual 1' Core Radiator
Qualifier Euro-Black Electric Fans
Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
Diamond-Cut Aluminum Coolant Recovery Tank

Billet Aluminum Round-Style Radiator Cap

Inlet Location & Size:	Passenger Side / 1-3/8'
Outlet Location & Size:	Passenger Side / 1-1/2'
Core Type:	Dual
Radiator Height:	18-1/2'
Radiator Width:	33-3/4'
Radiator Thickness:	3'
Radiator Core Height:	N/A
Radiator Core Width:	N/A
Radiator Core Thickness:	2'
Notes: Modification to upper and lower hoses (and transmission lines, if equipped) required for crossflow upgrade. With passenger side water pump outlet

Part TypeCooling Fan Kit

BrandBE COOL RADIATORS

Package Height13.0

Package Width27.0

Package Length40.0

Weight60.0 PG

Part CategoryPerformance Parts

Overall Thickness6.5 in (165.1 mm)

Overall Height18.5 in (469.9 mm)

Radiator Cap IncludedNo

Shroud MaterialSteel

Inlet LocationUpper passenger side

Inlet Size (In.)1 3/8

Core Width27.5 in (698.5 mm)

Row Quantity2

Overall Width33.75 in (857.3 mm)

Tube Size1 in (25.4 mm)

Radiator FinishNatural

Transmission CoolerNo

Maximum Fan Cfm3,560 cfm

Shroud ColorBlack

Radiator StyleCrossflow

Coating/FinishNatural

Blade MaterialPlastic

Outlet Size1.5 in (38.1 mm)

Fan QuantityDual

Radiator MaterialAluminum

QuantitySold as a kit

MaterialAluminum

Core Height18.5 in (469.9 mm)

Core Thickness2 in (50.8 mm)

Fan Diameter13 in (330.2 mm)

Blade ColorBlack

Outlet LocationLower passenger side

Fan IncludedYes

Vendor Part Number80311

Package Qty1

Package TypeEA
