Product Discontinued
BE COOL RADIATORSPART NUMBER: 134-81233

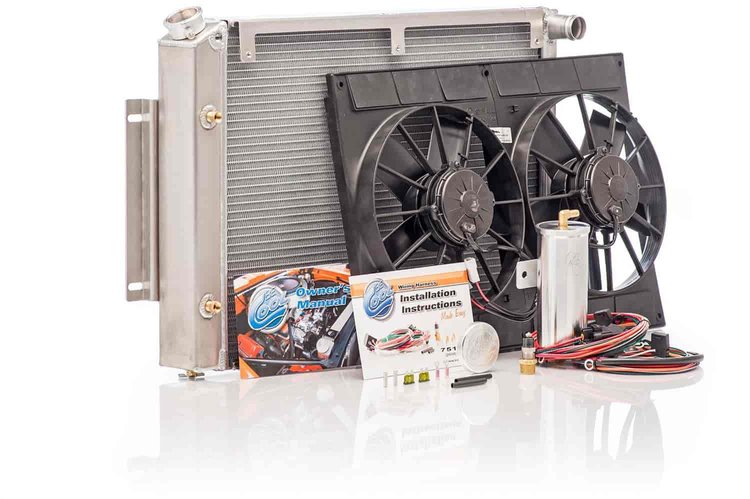

Aluminum Radiator Module System 1953-60 Corvette with LT1/LS1
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Manual Transmission ApplicationsPolished Finish
- Aluminum Radiator Module System
- 1953-60 Corvette with LT1/LS1
- Driver Side (Mid) Upper, Passenger Side Lower Hose
- Rated up to 400 HP
- 24''W x 18''H
- Crossflow Conversion
- Manual Trans
- Polished Finish
Radiator Module System Includes: - Direct-Fit Dual 1' Core Radiator
- Qualifier Euro-Black Electric Fans
- Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
- Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
- Diamond-Cut Aluminum Coolant Recovery Tank
- Billet Aluminum Round-Style Radiator Cap
Inlet Location & Size: Driver Side / 1-3/8' Outlet Location & Size: Passenger Side / 1-1/2' Core Type: Dual Radiator Height: 18-1/2' Radiator Width: 23-3/4' Radiator Thickness: 3' Radiator Core Height: 18' Radiator Core Width: 18' Radiator Core Thickness: 2' Notes: - 300 horsepower maximum
- Modification to upper and lower hoses required for crossflow upgrade
- With passenger side water pump outlet
Part TypeCooling Fan Kit
BrandBE COOL RADIATORS
Package Height13.0
Package Width27.0
Package Length40.0
Weight40.0 PG
Part CategoryPerformance Parts
Overall Thickness6.5 in (165.1 mm)
Overall Height18.5 in (469.9 mm)
Blade MaterialPlastic
Fan QuantitySingle
Shroud MaterialPlastic
QuantitySold as a kit
Inlet Size (In.)1 3/8
Core Height18 in (457.2 mm)
Core Thickness2 in (50.8 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
Row Quantity2
Outlet LocationLower passenger side
Overall Width23.75 in (603.3 mm)
Transmission CoolerNo
Maximum Fan Cfm2,360 cfm
Shroud ColorBlack
Radiator StyleCrossflow
Vendor Part Number81233
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
