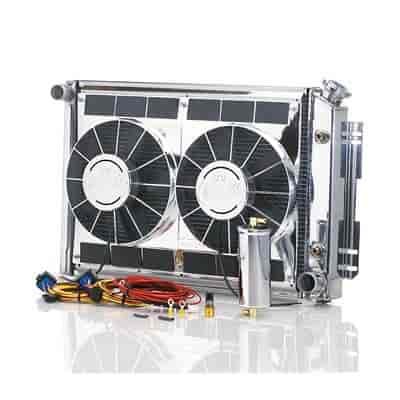

Radiator Module System Includes:

• Direct-Fit Dual 1' Core Radiator
• Qualifier Electric Fans
• Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
• Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
• Diamond-Cut Aluminum Coolant Recovery Tank
• Billet Aluminum Round-Style Radiator Cap



  Inlet Location & Size:	Passenger Side / 1-3/8'
  Outlet Location & Size:	Passenger Side / 1-1/2'
  Core Type:	Dual
  Radiator Height:	17'
  Radiator Width:	31-1/2'
  Radiator Thickness:	3'
  Radiator Core Height:	17'
  Radiator Core Width:	27'
  Radiator Core Thickness:	2'
  Notes: Modification to upper and lower hoses and transmission lines required for crossflow upgrade. With passenger side water pump outlet Drilling required for some pin, foot, or flange mounted radiators Short water pump required Built-in heavy duty transmission oil cooler
