Product Discontinued
BE COOL RADIATORSPART NUMBER: 134-82030

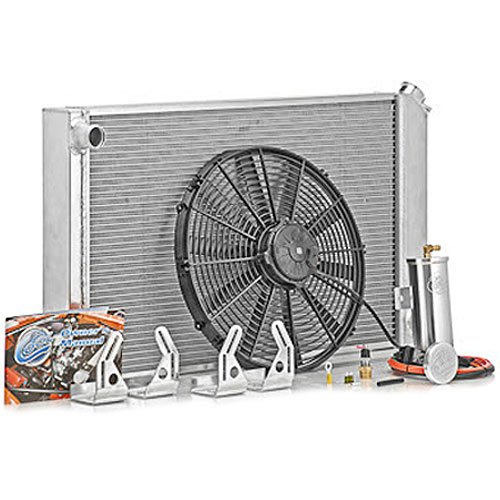

Aluminum Radiator Module System 1970-86 CJ/Scrambler w/Small Block Chevy
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Automatic Transmission ApplicationsNatural Finish
- Aluminum Radiator Module System
- 1970-86 CJ/Scrambler w/Small Block Chevy
- Rated up to 400 HP
- 24''W x 19''H
- Crossflow Conversion
- Auto Trans
- Natural Finish
Radiator Module System Includes: - Direct-Fit Dual 1' Core Radiator
- Qualifier Electric Fans
- Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
- Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
- Diamond-Cut Aluminum Coolant Recovery Tank
- Billet Aluminum Round-Style Radiator Cap
Inlet Location & Size: Driver Side / 1-1/2' Outlet Location & Size: Passenger Side / 1-3/4' Core Type: Dual Radiator Height: 18-1/2' Radiator Width: 24' Radiator Thickness: 3' Radiator Core Height: 18' Radiator Core Width: 18' Radiator Core Thickness: 2' Notes: - Small Block Chevy engine Swap applications with passenger side water pump outlet
- Modification to upper and lower hoses (and transmission lines, if equipped) required for crossflow upgrade
- Driver side upper hose location
- Passenger side lower hose location
Part TypeCooling Fan Kit
BrandBE COOL RADIATORS
Package Height10.0
Package Width25.0
Package Length39.0
Weight32.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18 in (457.2 mm)
Blade MaterialPlastic
Fan QuantitySingle
Shroud MaterialPlastic
QuantitySold as a kit
Inlet Size (In.)1 1/2
Core Height17 in (431.8 mm)
Core Thickness2 in (50.8 mm)
Fan Diameter16 in (406.4 mm)
Blade ColorBlack
Row Quantity2
Overall Width24 in (609.6 mm)
Transmission CoolerYes
Part FitmentDirect Fit
Shroud ColorBlack
Radiator StyleCrossflow
Vendor Part Number82030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
