Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Automatic Transmission ApplicationsNatural Finish

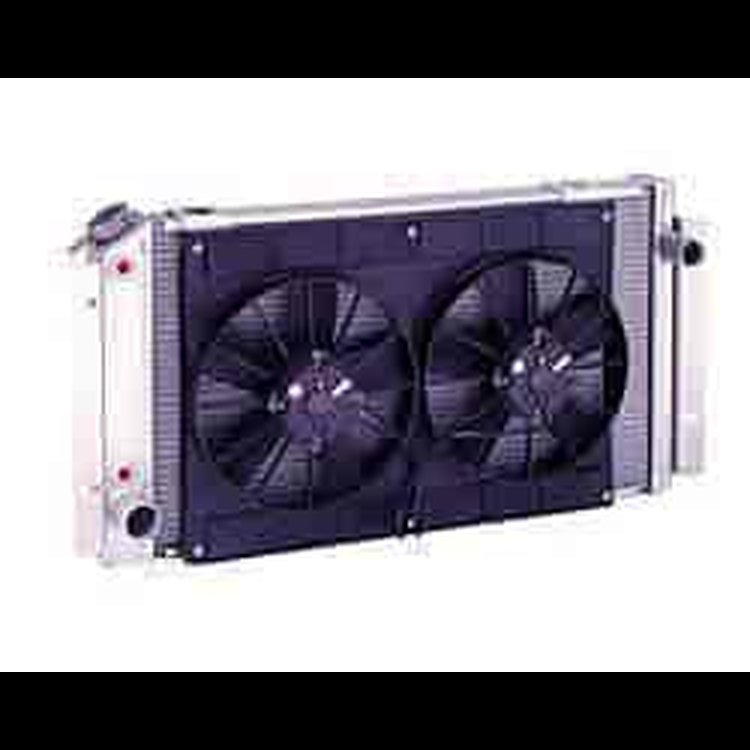

- Aluminum Radiator Module System
- 1970-74 Barracuda/Challenger
- Driver side upper hose location
- Rated up to 1000 HP
- 33''W x 19''H
- Crossflow Conversion
- Auto Trans
- Natural Finish
Radiator Module System Includes: - Direct-Fit Dual 1' Core Radiator
- Qualifier Electric Fans
- Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
- Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
- Diamond-Cut Aluminum Coolant Recovery Tank
- Billet Aluminum Round-Style Radiator Cap
Inlet Location & Size: Driver Side / 1-1/2' Outlet Location & Size: Passenger Side / 1-3/4' Core Type: Dual Radiator Height: 18-1/2' Radiator Width: 32-1/2' Radiator Thickness: 3' Radiator Core Height: 18' Radiator Core Width: 27' Radiator Core Thickness: 2' Notes: - Modification of top mounting plate for crossflow conversion may be required
- Modification to upper and lower hoses (and transmission lines, if equipped) required for crossflow upgrade
- With passenger side water pump outlet
- Drilling required for some pin, foot, or flange mounted radiators
- Battery relocation required
Part TypeCooling Fan Kit
BrandBE COOL RADIATORS
Package Height13.0
Package Width27.0
Package Length41.0
Weight50.0 PG
Part CategoryPerformance Parts
Overall Height19 in (482.6 mm)
Blade MaterialPlastic
Fan QuantitySingle
Shroud MaterialPlastic
QuantitySold as a kit
Inlet Size (In.)1 1/2
Core Height18 in (457.2 mm)
Core Thickness2 in (50.8 mm)
Fan Diameter13 in (330.2 mm)
Blade ColorBlack
Row Quantity2
Overall Width30 in (762 mm)
Transmission CoolerYes
Part FitmentDirect Fit
Shroud ColorBlack
Radiator StyleCrossflow
Vendor Part Number82177
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
