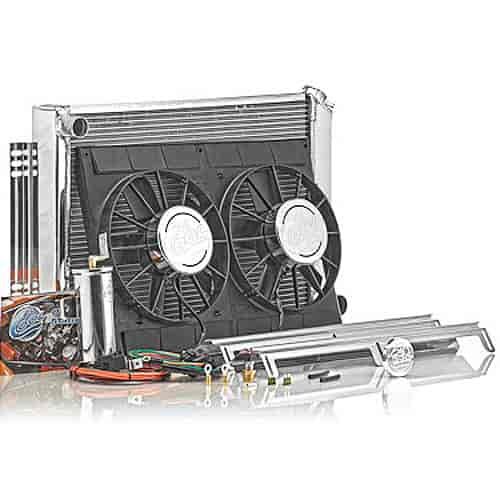

Aluminum Radiator Module System 1955-57 Bel Air with LS2/LS3/LS7

Vehicle Info Needed

Aluminum Radiator Module System 1955-57 Bel Air with LS2/LS3/LS7

Name: Aluminum Radiator Module System 1955-57 Bel Air with LS2/LS3/LS7
Brand: BE COOL RADIATORS
SKU: 134-83121
Price: 1699.99 USD
Availability: InStock

^$1,699⁹⁹

Ships on 09/16/2026

Lowest Price Guarantee

Automatic Transmission Applications

Polished Finish

1955-57 Bel Air with LS2/LS3/LS7
Passenger Side Upper, Passenger Side Lower Hose
Rated up to 700 HP
32''W x 17''H
Crossflow Conversion
Automatic Trans
Polished Finish

Radiator Module System Includes:
Direct-Fit Dual 1' Core Radiator
Qualifier Euro-Black Electric Fans
Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
Diamond-Cut Aluminum Coolant Recovery Tank

Billet Aluminum Round-Style Radiator Cap

Inlet Location & Size:	Passenger Side / 1-3/8'
Outlet Location & Size:	Passenger Side / 1-1/2'
Core Type:	Dual
Radiator Height:	17'
Radiator Width:	31-1/2'
Radiator Thickness:	3'
Radiator Core Height:	17'
Radiator Core Width:	18'
Radiator Core Thickness:	2'
Notes: Includes built-in heavy duty transmission oil cooler Modification to upper and lower hoses (and transmission lines, if equipped) required for crossflow upgrade With passenger side water pump outlet Drilling required for some pin, foot, or flange mounted radiators

Part TypeCooling Fan Kit

BrandBE COOL RADIATORS

Package Height12.0

Package Width27.0

Package Length40.0

Weight49.0 PG

Part CategoryPerformance Parts

Overall Thickness7.25 in (184.2 mm)

Overall Height17 in (431.8 mm)

Radiator Cap IncludedNo

Shroud MaterialPlastic

Inlet LocationUpper passenger side

Inlet Size (In.)1 3/8

Core Width27.5 in (698.5 mm)

Row Quantity2

Overall Width31.5 in (800.1 mm)

Tube Size1 in (25.4 mm)

Radiator FinishPolished

Transmission CoolerYes

Maximum Fan Cfm2,725 cfm

Shroud ColorChrome

Radiator StyleCrossflow

Coating/FinishPolished

Blade MaterialPlastic

Outlet Size1.5 in (38.1 mm)

Fan QuantityDual

Radiator MaterialAluminum

QuantitySold as a kit

MaterialAluminum

Core Height17 in (431.8 mm)

Core Thickness2 in (50.8 mm)

Fan Diameter11 in (279.4 mm)

Blade ColorBlack

Outlet LocationLower passenger side

Fan IncludedYes

Vendor Part Number83121

Package Qty1

Package TypeEA
