Vehicle Info NeededBE COOL RADIATORSPART NUMBER: 134-83721

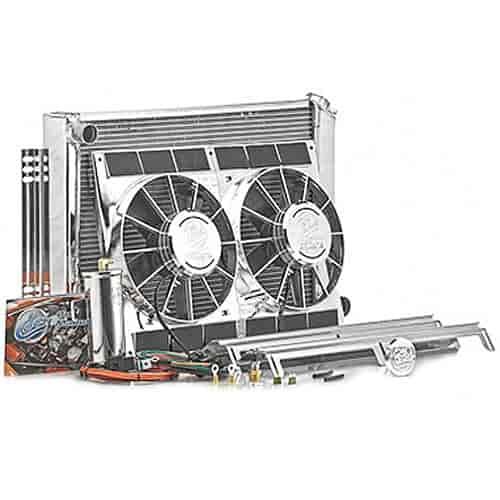

Aluminum Radiator Module System 1955-1957 Bel Air
$2,39999
Ships on 09/16/2026
Lowest Price GuaranteeAutomatic Transmission ApplicationsPolished Finish
Aluminum Radiator Module System1955-1957 Bel Air with LS2/LS3/LS7 Passenger Side Upper, Passenger Side Lower Hose Rated up to 700 HP 32''W x 17''H Crossflow Conversion Automatic Trans Show & Go Polished Finish
Radiator Module System Includes:
- Direct-Fit Dual 1' Core Radiator
- Qualifier Electric Fans
- Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
- Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
- Diamond-Cut Aluminum Coolant Recovery Tank
- Billet Aluminum Round-Style Radiator Cap
Radiator Module System Includes: - Direct-Fit Dual 1' Core Radiator
- Qualifier Electric Fans
- Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
- Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
- Diamond-Cut Aluminum Coolant Recovery Tank
- Billet Aluminum Round-Style Radiator Cap
Inlet Location & Size: Passenger Side / 1-3/8' Outlet Location & Size: Passenger Side / 1-1/2' Core Type: Dual Radiator Height: 17' Radiator Width: 31-1/2' Radiator Thickness: 3' Radiator Core Height: 17' Radiator Core Width: 27' Radiator Core Thickness: 2' Notes: - Includes built-in heavy duty transmission oil cooler
- Modification to upper and lower hoses and transmission lines required for crossflow upgrade.
- With passenger side water pump outlet
- Drilling required for some pin, foot, or flange mounted radiators
- Short water pump required
- Built-in heavy duty transmission oil cooler
Aluminum Radiators Perfect for Performance Cars
Original equipment radiators are designed to cool stock applications so why risk overheating a hot rod or muscle car? Be Cool builds radiators in the same down or cross flow configuration as OE to avoid installation issues yet incorporates upgrades to increase cooling capacity. Downflow radiator tanks are on the top and bottom of the core; crossflow radiator tanks are on the sides. Both cool equally as long as the core surface is the same in square inches. Plus, epoxy-free assembly improves heat dissipation. Be Cool guarantees coolant temperature will drop at least 20° or your money back!
Show More
Features
- Aluminum Construction with Natural or Polished Finish
- 40% Lighter than Conventional OE Radiators but More Cooling Power
- Dual 1" Tube Core
- Single-Pass Design
- 100% Pressure Tested
- Form-Folded Straight Tank
- Compatible with All Coolants
- Direct Replacement Mounting
- OE Inlet/Outlet Size and Location
- Billet Filler Neck with High-Capacity Overflow Tube
- Automatic Transmission Radiators Have Heavy-Duty Cooler
Part TypeCooling Fan Kit
Product LineBe Cool Chevrolet Car Factory-Fit Aluminum Radiators
BrandBE COOL RADIATORS
Package Height12.75
Package Width27.0
Package Length40.0
Weight49.0 PG
Part CategoryPerformance Parts
Blade MaterialPlastic
Fan Diameter11 in (279.4 mm)
Blade ColorBlack
Fan QuantityDual
Shroud MaterialPlastic
QuantitySold as a kit
Transmission CoolerYes
Maximum Fan Cfm2,780 cfm
Shroud ColorChrome
Radiator StyleCrossflow
Vendor Part Number83721
Package Qty1
Package TypeEA
