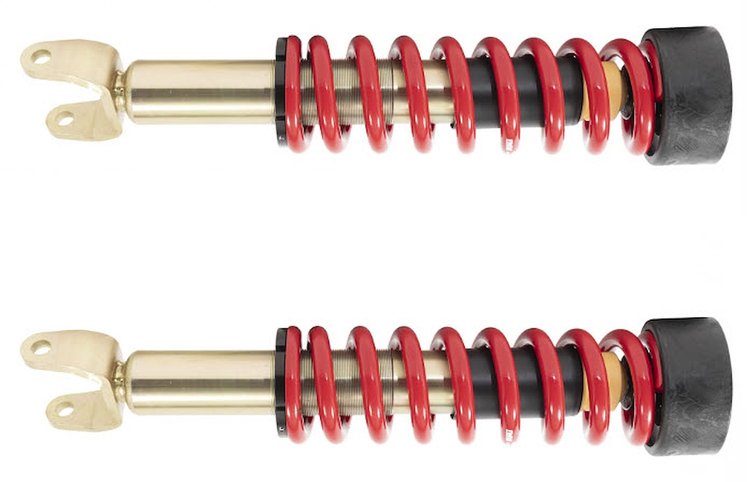

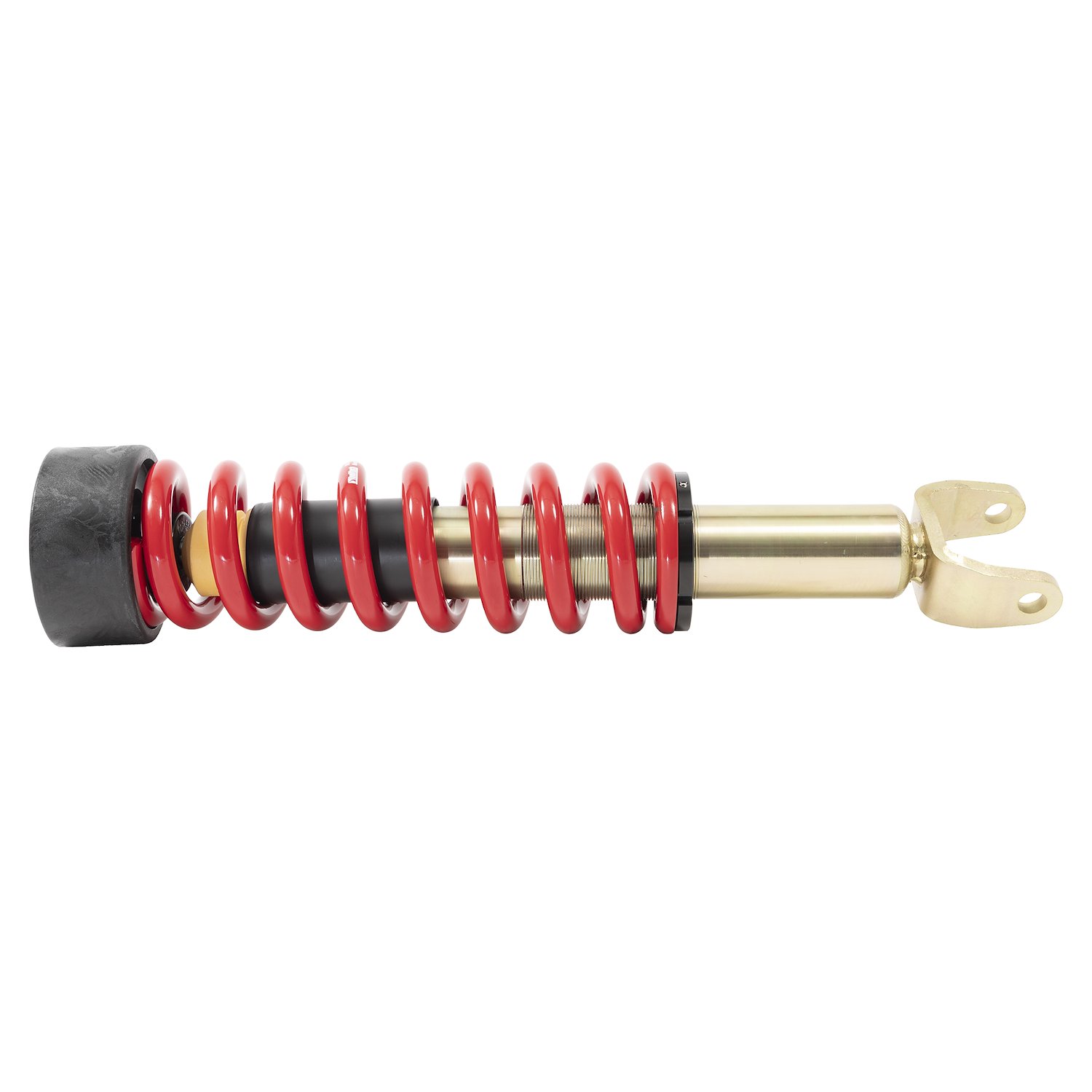

15305 Front 6-8 in. Adjustable Coil-Over Lift Kit for Select Ram 1500 Trucks 2WD/4WD
InfoVehicle Info Needed
BELLTECHPART NUMBER: 146-15305

15305 Front 6-8 in. Adjustable Coil-Over Lift Kit for Select Ram 1500 Trucks 2WD/4WD

$92500
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ram 1500
Adjustable Front Coil-Over Lift Kit
  • Fits Select Ram 1500 Trucks 2WD/4WD
  • 60 mm Threaded Body Trail Performance Shocks
  • High-Tensile Springs
  • Height Adjustable from 6-8 in.
  • Preset Shock Damping
  • Increased Clearance
  • Zinc Plated
  • Pair

    Breakdown of Included Items

    Belltech 15305 Adjustable Front Coil-Over Lift Kit Features:

    • 60 mm Threaded Body Trail Performance Shocks (dampers) feature 2.400 in. threaded bodies with 20 mm hardened chrome piston rods and 35 mm independent rebound & compression valves
    • Shock damping preset for the Ram 1500 truck
    • Springs are cold-formed, powder-coated high tensile steel
    • Progressive rate polymer open-cell bump stops
    • Packers perfect bump stop engagement
    • Improved drive quality
    • Allows room for larger tires & wheel combinations

    Belltech 15305 Adjustable Front Coil-Over Lift Kit Note:

    • Does Not Fit "Classic" Body Style Trucks
    • Part TypeSuspension Lift Kit
    BrandBELLTECH
    Package Height8.0
    Package Width17.0
    Package Length36.0
    Weight53.0 PG
    Part CategoryPerformance Parts
    Lift StyleSuspension Lift Kit
    PositionFront
    QuantitySold as a pair
    Amount Of Lift Front6-8 in.
    Front Shocks/Struts IncludedYes
    Part FitmentDirect Fit
    Vendor Part Number15305
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
