Tri-Level Four-Post Parking Lift [HD-973P, 9,000 lb. Lower and 7,000 lb. Upper Platform, Galvanized]
InfoVehicle Info Needed
BENDPAKPART NUMBER: 372-5175266

Tri-Level Four-Post Parking Lift [HD-973P, 9,000 lb. Lower and 7,000 lb. Upper Platform, Galvanized]

$27,49500
ShippingShips on 11/02/2026
Lowest PriceLowest Price Guarantee

HD-973P Tri-Level Parking Lift
  • 9,000 lb. Lower Platform, 7,000 lb. Upper Platform
  • 70 in. Max Rise
  • Air-Powered Lock Release
  • 208-240V, 1-Phase
  • Galvanized Finish

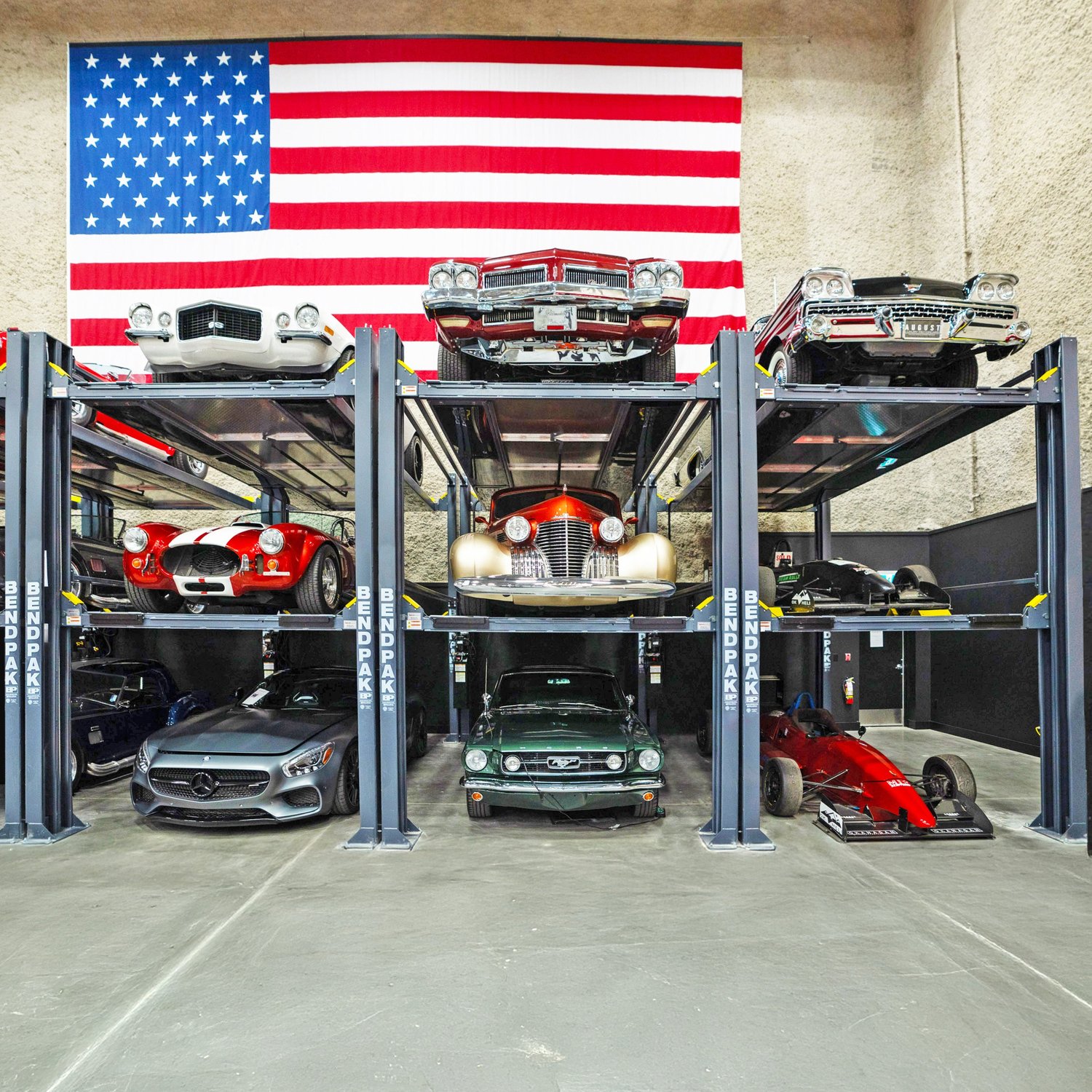

    When floor space is the limit, go up. The HD-973P tri-level parking lift stacks three vehicles in one footprint, with a 9,000 lb. lower platform and a 7,000 lb. upper platform that move independently.

    BendPak 5175266 Tri-Level Parking Lift Features:

    • Tri-level four-post parking lift with two independent platforms
    • 9,000 lb. lower platform capacity, 7,000 lb. upper platform capacity
    • 70 in. maximum rise, 72.250 in. maximum lifting height
    • 13 locking positions spaced every 4 in. with air-powered release
    • 165.500 in. runway length, 19 in. runway width
    • Full-length aluminum platform decking
    • Heavy-duty 3/8 in. lifting cables
    • 86.500 in. drive-thru clearance, 100 in. inside columns
    • 208-240V, 50/60 Hz, 1-phase, 22 amps
    • Galvanized finish
  • Part TypeVehicle Lift
    BrandBENDPAK
    Package Height157.750 in
    Package Width110.500 in
    Package Length241.750 in
    Part CategoryAccessories
    TypeTri-Level Parking Lift
    Safety Lock EquippedYes
    Voltage208-240V, 50/60 Hz, 1-Phase
    QuantitySold Individually
    Lift Capacity9,000 lb lower / 7,000 lb upper
    Maximum Lift Height72.250 in
    Part FitmentUniversal
    FinishGalvanized
    Vendor Part Number5175266
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
