![High-Rise Four-Post Boat and Vehicle Storage Lift [HD-7500PBX, 7,500 lb. Capacity, 144.500 in. Rise]](https://www.jegs.com/images/mini_750/300/372/372-5175320.jpg)
Vehicle Info NeededBENDPAKPART NUMBER: 372-5175320

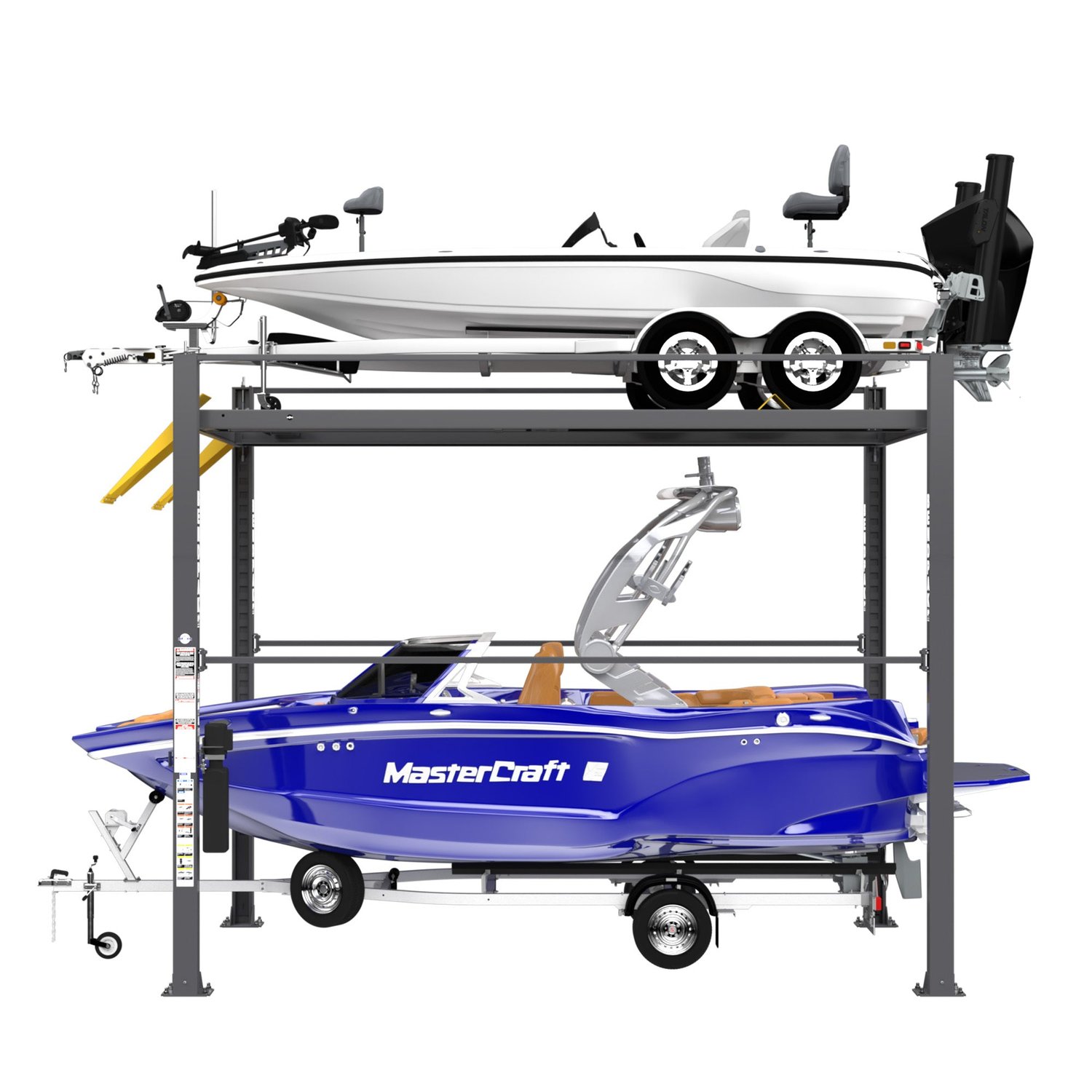

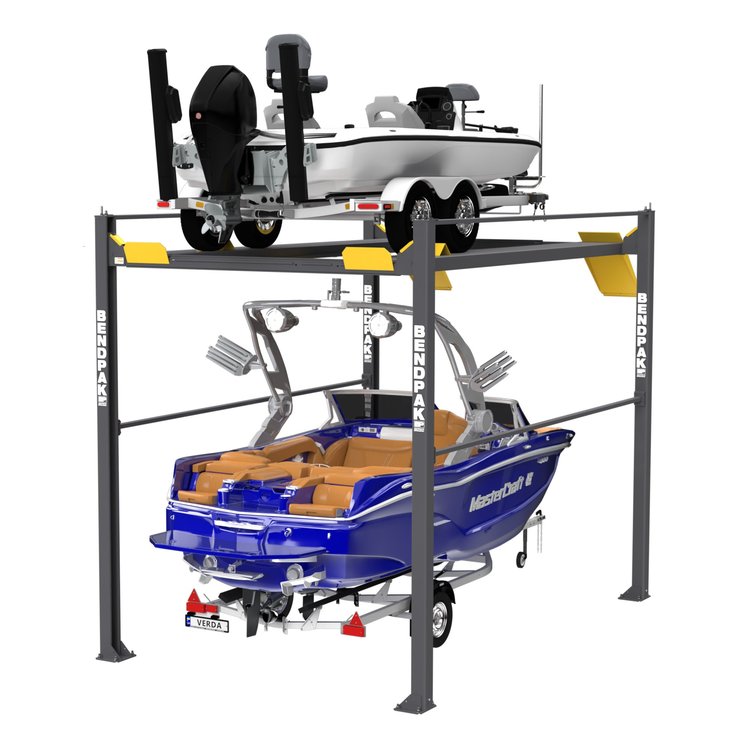

High-Rise Four-Post Boat and Vehicle Storage Lift [HD-7500PBX, 7,500 lb. Capacity, 144.500 in. Rise]
$10,09500
Truck Freight
Ships on 11/02/2026
Lowest Price GuaranteeHD-7500PBX High-Rise Four-Post Storage Lift7,500 lb. Capacity 144.500 in. Max Rise Adjustable Runway Width for Boat Trailers 30 Locking Positions 208-230V, 60 Hz, 1-Phase
Tall boats on trailers and lifted trucks need more height than a standard storage lift offers. The HD-7500PBX raises 7,500 lb. as high as 144.500 in., with runways that set wide for boat trailers or narrow for cars and trucks.
BendPak 5175320 High-Rise Storage Lift Features:
- 7,500 lb. lifting capacity
- 144.500 in. maximum rise
- 188.500 in. runway length, 19 in. runway width
- Width between runways adjusts from 49.500 to 69.500 in
- 108.500 in. drive-thru clearance, 122 in. inside columns
- 30 locking positions spaced every 4 in
- Single hydraulic cylinder under the runway, stainless steel wire ropes
- 208-230V, 60 Hz, 1-phase power
Part TypeVehicle Lift
BrandBENDPAK
Package Height157.500 in
Package Width132 in
Package Length224.500 in
Weight999.0 PG
Part CategoryAccessories
TypeFour-Post Lift
Safety Lock EquippedYes
Voltage208-230V, 60 Hz, 1-Phase
ColorGray
QuantitySold Individually
Lift Capacity7,500 lb
Maximum Lift Height144.500 in
Part FitmentUniversal
Minimum Height5 in
Vendor Part Number5175320
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
