Made in USA

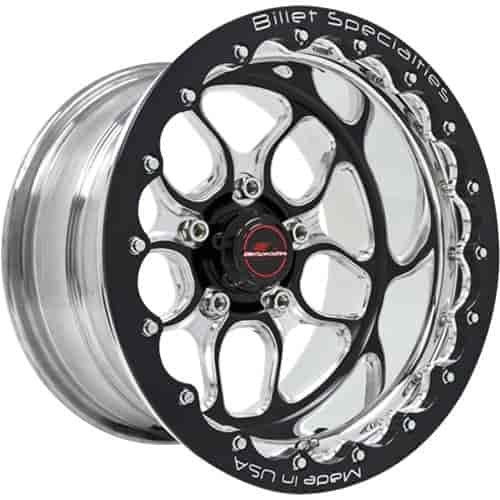

Win Lite Single Beadlock Wheel
InfoVehicle Info Needed
BILLET SPECIALTIESPART NUMBER: 135-BRSB25106540

Win Lite Single Beadlock Wheel

Color:

Black
$1,20000
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

15" x 10"
Win Lite Single Beadlock Wheel
  • Size: 15" x 10"
  • Rear Spacing: 4.00"
  • Bolt Circle: 5 x 4.50"

    JEGS How to Measure Wheel Fitment click here

    Features

    • Spun Aluminum Rim for superior Strength and Trueness
    • Black Hard Coat Anodized & Machined Center Hub Finish
    • Street or Strip Use
    • SFI 15.1 Approved (15 in. Wheel)
    • SAE J-2530 Approved (17 in. Wheel)
    • Outstanding Strength to Weight Ratio
    • Forged Alloy Center & Aluminum Alloy Rim for Strength and Superior Run-Out
    • Bolt-On Center Cap Included
    • Lug Nuts NOT Included, Use Billet Specialties Street Lite Lug Nuts
    • Single and Double Beadlock wheels come with one or two black anodized beadlock rings respectively
    • Win Lite Series Racing Wheels

      Billet Specialties ultra-lightweight Win Lite Single & Double Beadlock wheels provide rugged looks with exceptional street and strip performance, thanks to the 6061 T-6 forged center structure. Carrying SAE J-2530 (17 in. wheel) and SFI 15.1 certification (15 in. wheel), Win Lites are a sign that you are serious about performance and uncompromising on style.

      Show More

      The Billet Specialties Win Lite Single & Double Beadlock Polished Wheels are engineered for racers and high-performance enthusiasts who demand maximum traction, lightweight strength, and show-quality finish. Designed specifically for drag racing and aggressive street/strip builds, these polished beadlock wheels provide the security needed to keep tires firmly mounted under hard launches. Whether you’re running a high-torque small block or a boosted big block combination, Billet Specialties Win Lite Single & Double Beadlock Polished Wheels deliver race-ready durability with standout style.

      Beadlock wheels are critical in high-horsepower applications where extreme torque can cause tire slippage on the rim. By mechanically clamping the tire bead, these performance wheels ensure consistent traction and improved launch stability—especially when running lower tire pressures for maximum grip.

      Performance Benefits & Key Features

      Billet Specialties Win Lite Single & Double Beadlock Polished Wheels are precision-machined from high-quality forged aluminum to achieve a superior strength-to-weight ratio. Lightweight construction reduces unsprung weight, which can enhance acceleration and suspension response—an important factor in competitive drag racing applications.

      Performance enthusiasts often evaluate beadlock wheels based on construction material, beadlock ring design, load rating, sizing options, and finish quality. The single beadlock design provides secure outer bead retention, while the double beadlock configuration offers additional security for extreme racing environments. The polished finish delivers a premium appearance that complements show-quality builds.

      These wheels are ideal for drag racing cars, pro-street builds, and high-horsepower street machines seeking maximum traction. By preventing tire rotation on the rim under hard acceleration, they help maintain consistent 60-foot times and improved overall performance.

      Fitment, Compatibility & Applications

      Billet Specialties Win Lite Single & Double Beadlock Polished Wheels are compatible with a wide range of GM, Ford, and Mopar rear-wheel-drive platforms configured for performance tire setups. Popular applications include Chevrolet Camaro, Chevelle, Ford Mustang, Dodge Challenger, and other muscle cars built for street/strip competition.

      Available in multiple diameter and width combinations, these wheels accommodate drag radial and slick tire fitment for staggered rear setups. Proper backspacing and bolt pattern selection ensure seamless compatibility with upgraded suspension and brake systems.

      If you’re ready to maximize traction and elevate your race-ready stance, explore the Billet Specialties Win Lite Single & Double Beadlock Polished Wheels at JEGS and equip your build with lightweight strength engineered for serious performance enthusiasts.

    Part TypeWheel
    Product LineBillet Specialties Win Lite Single & Double Beadlock Wheels
    BrandBILLET SPECIALTIES
    Package Height12.0
    Package Width23.0
    Package Length23.0
    Weight23.42 PG
    Part CategoryPerformance Parts
    Center Cap FinishBlack
    Wheel Size15 x 10 in.
    Lug Nut Seat TypeShank
    ColorBlack
    Quantity1
    Primary Wheel ColorBlack
    BeadlockSingle Beadlock
    Back Spacing4 in (101.6 mm)
    Wheel MaterialBillet Aluminum
    Functional BeadlockYes
    Bolt Pattern5 x 4.5 in.
    Beadlock FunctionalYes
    Lug Nut Shank Diameter0.74 In.
    Beadlock IncludedYes
    Backspacing4 In.
    Lug Nut Shank Length0.75 In.
    Lug Nut Shank Length (In.)0.75
    Center Bore Diameter3.189 in.
    Manufacturers Wheel SeriesWin Lite
    Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
    Center Cap IncludedYes
    Lug Nut Seat StyleShank
    Wheel Diameter15 in.
    Lug Nut Shank Diameter (In.)0.74
    Wheel TypeDrag Race Wheels
    Part FitmentSemi Universal
    Wheel Width10 in.
    Vendor Part NumberBRSB25106540N
    Package Qty1
    Package TypeEA
