Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

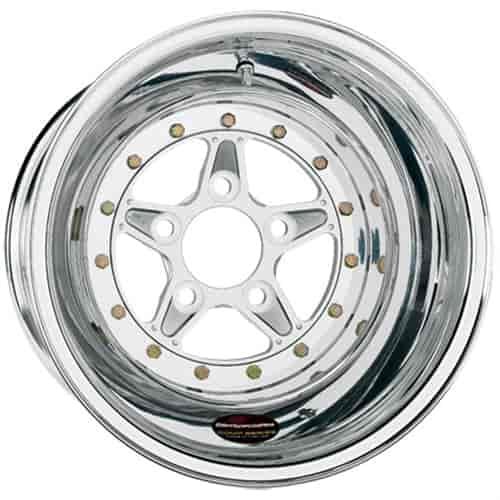

15'' x 12'' Double Beadlock
- Comp 5 Double Beadlock Polished Wheel
- Size: 15'' x 12''
- Bolt Pattern: 5 x 4.75
- Back Spacing: 6"
Comp Series
| Required Lug Nuts |
 |
| .500" Mag Shank |
The Comp 5 is more than an amazing looking wheel. It is designed to be the ultimate drag wheel. Carrying SFI 15.1 or 15.2 certification, Comp wheels are a sign that you are serious about performance and uncompromising on style. This ultra-lightweight wheel handles the drag race duty with ease thanks to its 6061 T-6 forged center structure.
Show More
Front 1-Piece Wheels
- 1-piece forged design
- Rotary forged & machined: 6061-T6 aluminum
- Superior lateral & radial run out
- Includes bearings and seals (spindle mount)
- Includes screw-on center cap (spindle mount)
- All 15 in. wheels allow for direct mounting of brake rotor (spindle mount)
- Uses a motorcycle type valve stem
- Bolt-on style 5 x 4.5 & 5 x 4.75 bolt patterns only
- Bolt-on style for use with mag shank lug nuts
- SFI 15.2 certified - Drag Race Front Wheels
Front Bolt-on Wheels - For use with mag shank lugs
- Spun aluminum rim
- Superior lateral & radial run out
- 6061-T6 forged aluminum centers
- Grade 8 hardware
- 5 x 4.5 & 5 x 4.75 bolt patterns only
- SFI 15.2 certified - Drag Race Front Wheels
Rear Wheels - For use with mag shank lugs & 5/8 in. race studs
- Spun aluminum rim halves
- Superior lateral & radial run out
- 6061-T6 forged aluminum centers
- Grade 8 hardware
- 5 x 4.5, 5 x 4.75 & 5 x 5 bolt patterns only
- SFI 15.1 certified - Drag Race Drive Wheel
Double Bead Lock Wheels - Includes two black anodized bead lock rings and hardware
Bead Lock Inner Diameters: Check your brake caliper clearance on wheels with minimum backspace!
- 15 in. diameter is 13-1/4 in. diameter
- 16 in. diameter is 14-1/4 in. diameter
Part TypeWheel
Product LineBillet Specialties Comp 5 Polished SFI Drag Wheels
BrandBILLET SPECIALTIES
Package Height15.0
Package Width24.0
Package Length24.0
Weight25.0 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,200
Quantity1
Wheel MaterialBillet Aluminum
Back Spacing6 in (152.4 mm)
Bolt Pattern5 X 4.75 in.
Offset-0.5 in.
Hub Centric Ring CompatibleNo
Lug Nut Shank Diameter0.685 in.
Backspacing6 in.
Lug Nut Shank Length (In.)0.75
Lug Nut Shank Length0.75 In.
Small Diameter Lug Nuts RequiredNo
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Center Bore Diameter3.189 in.
Load Rating1200 lbs.
Wheel Offset-12.7 mm (-.500 in)
Lug Nut Shank Diameter (In.)0.685
Wheel Diameter15 in.
Wheel TypeDrag Race Wheels
Part FitmentSemi Universal
Wheel Width12 in.
Vendor Part NumberCDB035126160
Package Qty1
Package TypeEA
