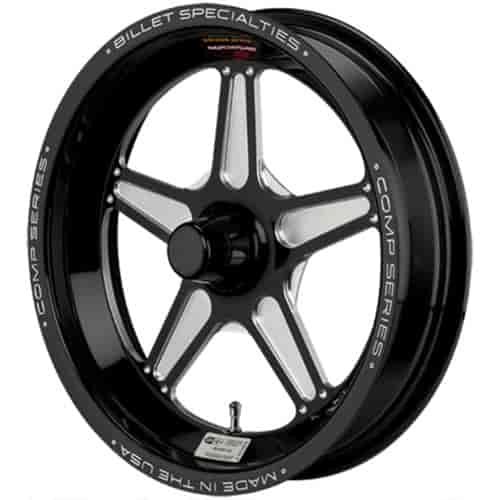

Front 1-Piece Wheels

• 1-piece forged design
• Rotary forged & machined: 6061-T6 aluminum
• Superior lateral & radial run out
• Includes bearings and seals (spindle mount)
• Includes screw-on center cap (spindle mount)
• All 15 in. wheels allow for direct mounting of brake rotor (spindle mount)
• Uses a motorcycle type valve stem
• Bolt-on style 5 x 4.5 & 5 x 4.75 bolt patterns only
• Bolt-on style for use with mag shank lug nuts
• SFI 15.2 certified - Drag Race Front Wheels


  Front Bolt-On Wheels
• For use with mag shank lugs
• Spun aluminum rim
• Superior lateral & radial run out
• 6061-T6 forged aluminum centers
• Grade 8 hardware
• 5 x 4.5 & 5 x 4.75 bolt patterns only
• SFI 15.2 certified - Drag Race Front Wheels


  Rear Wheels
• For use with mag shank lugs & 5/8 in. race studs
• Spun aluminum rim halves
• Superior lateral & radial run out
• 6061-T6 forged aluminum centers
• Grade 8 hardware
• 5 x 4.5, 5 x 4.75 & 5 x 5 bolt patterns only
• SFI 15.1 certified - Drag Race Drive Wheel


  Double Bead Lock Wheels
• Includes two black anodized bead lock rings and hardware.

  Bead Lock Inner Diameters: Check your brake caliper clearance on wheels with minimum backspace!

• 15 in. diameter is 13-1/4 in. diameter
• 16 in. diameter is 14-1/4 in. diameter

Spindle Mount Identification Chart
