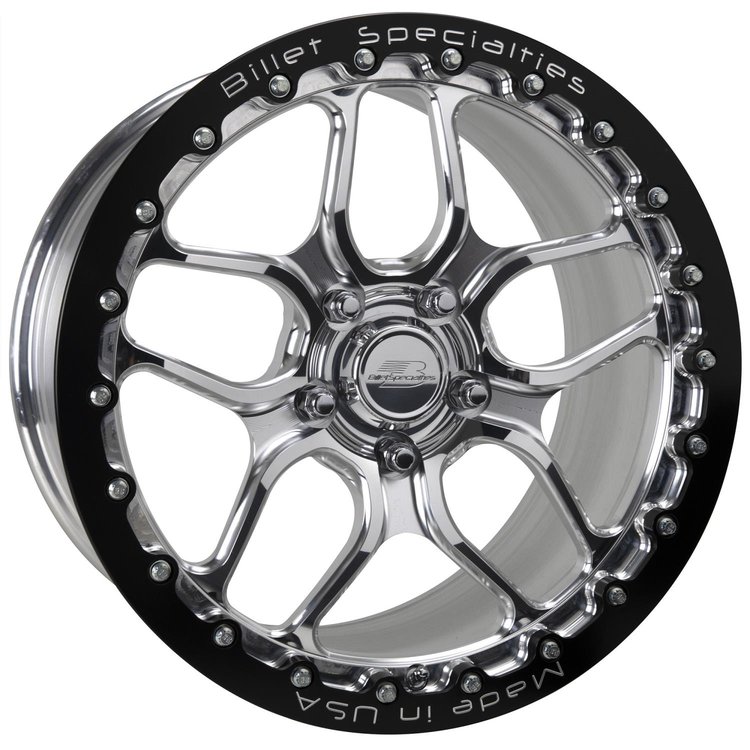

Win Lite Monoblock Drag Pack Single Bead Lock Rear Wheel [17" x 10"] Polished
InfoVehicle Info Needed
BILLET SPECIALTIESPART NUMBER: 135-DS2710BV6169

Win Lite Monoblock Drag Pack Single Bead Lock Rear Wheel [17" x 10"] Polished

$1,29300
ShippingShips on 11/16/2026
Lowest PriceLowest Price Guarantee

Items You Need

Bulge Acorn Lug Nuts, Long Closed-End [14mm x 1.5 RH, Chrome]

JEGS

Bulge Acorn Lug Nuts, Long Closed-End [14mm x 1.5 RH, Chrome]

Part Number : 555-65216
$499$6.99
You Save$2.00
Valve Stems Chrome TR48E Mount 1.89 in. Extended Length

JEGS

Valve Stems Chrome TR48E Mount 1.89 in. Extended Length

Part Number : 555-80869
$1832$21.99
You Save$3.67
Standard Lead-Free Stick-On Wheel Weights 1/4 oz each (9 oz total)

JEGS

Standard Lead-Free Stick-On Wheel Weights 1/4 oz each (9 oz total)

Part Number : 555-65080
$489$5.99
You Save$1.10
Standard Lead-Free Stick-On Wheel Weights 1/2 oz each (12 oz total)

JEGS

Standard Lead-Free Stick-On Wheel Weights 1/2 oz each (12 oz total)

Part Number : 555-65082
$799$8.99
You Save$1.00

17" x 10"
Win Lite Drag Pack Single Bead Lock Wheel
  • Size: 17" x 10"
  • Bolt Pattern: 5 x 4.75"
  • Back Spacing: 6.95"
  • Center Bore: 3.08"
  • Finish: Polished

    Brake Caliper Clearance Measurements

    JEGS How to Measure Wheel Fitment click here

    DPS2710BV6169 [DS2710BV6169] Features:

    • Includes: Win Lite Polished Wheel, Center Cap, and Bead Lock
    • Forged from 6061 T-6 Aluminum for high strength and reduced weight
    • One-piece design has a polished open-spoke face and outer rim with machined accents
    • Tire bead seat is knurled to lessen tire slip
    • Black Anodized Bead Lock has heavy machining for a strong bead grip
    • Uses conical shaped lug nuts

    Notes:

    • Suggested wheel for:
      • 2006-2013 Chevy C6 Z06 Corvette
      • 2014-2018 Chevy C7 Z06/Gran Sport Corvette (C7 Requires Aftermarket Spindles)
    • These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment and Brake Caliper Clearance Measurement Links Above)

      • Lightweight Polished Bead Lock Wheels for Today’s Muscle Cars

      Billet Specialties Polished Win Lite Monoblock Drag Pack Single Bead-Lock Rear Wheels have a one-piece 6061-T6 forging and a concave bolt pad section, making them one pound lighter than their predecessor; and capable of handling more horsepower and torque! This lightweight polished open-spoke aluminum wheel with machined accents features a single black-anodized Beadlock and aggressive knurling to lessen tire spin. JEGS also offers Billet Specialties Street Lite Monoblock Drag Pack Single Beadlock Rear Wheels in a Black Powder-Coated Finish

    Part TypeWheel
    Product LineBillet Specialties Win Lite Polished Monoblock Drag Pack Single Bead Lock Rear Wheels
    BrandBILLET SPECIALTIES
    Package Height12.0
    Package Width23.0
    Package Length23.0
    Weight24.0 PG
    Part CategoryPerformance Parts
    Valve Stems IncludedNo
    Wheel Size17 x 10 in.
    Lug Nut Seat TypeConical seat - 60 degree
    Quantity1
    Tpms Sensor CompatibleYes
    Tpms CompatibleYes
    Primary Wheel ColorPolished
    Wheel MaterialBillet Aluminum
    Wheel FinishPolished
    Wheel Construction1-piece
    Functional BeadlockYes
    Back Spacing6.95 in (176.53 mm)
    Bolt Pattern5 X 4.75 in.
    Beadlock IncludedYes
    Backspacing6.95 in.
    Beadlock FunctionalYes
    Valve Stem IncludedNo
    Center Bore Diameter3.08 In.
    Primary Wheel FinishPolished
    Center Cap IncludedYes
    Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
    Lug Nut Seat StyleConical seat - 60 degree
    Wheel Diameter17 in.
    Center Cap InstallationO-Ring
    Wheel TypeDrag Race Wheels
    Part FitmentSemi Universal
    Wheel Width10 in.
    Vendor Part NumberDPS2710BV6169
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
