Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

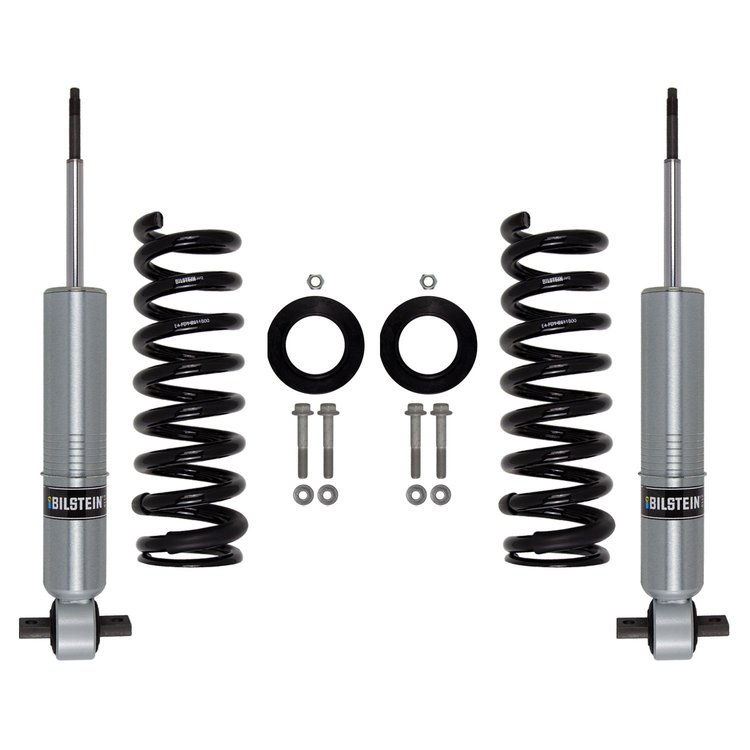

- B8 6112 - Suspension Kit
- Front Suspension Kit
- Ford Ranger
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Dampers: Zinc Plated/Springs: Black
- Reservoir: No
- Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
- Spring Seat Included: Yes
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter (ID): 60mm
47-294301 Suspension Kit Features:
Part TypeSuspension Kit
BrandBILSTEIN
Package Height4.62
Package Width12.75
Package Length28.0
Weight45.0 PG
Part CategoryPerformance Parts
SeriesB8 6112
Boot IncludedNo
Travel Length4.79 in.
Shaft Diameter18mm
Piston Diameter60mm
Extended Length19.38 in.
Collapsed Length (In)14.59 in.
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc/Black
Vendor Part NumberB547-294301
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
