Vehicle Info NeededBILSTEINPART NUMBER: 132-47-310780
47-310780 B8 6112 Suspension Kit; 2004-2008 Ford F-150, 2006-2008 Lincoln Mark LT
$88500
10 left in stock
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 6112 - Suspension Kit
- Front Suspension Kit
- Ford F-150 2008-2004
- Lincoln Mark LT 2008-2006
- Boot Included: No
- Internal Design: Monotube
- Finish: Dampers: Zinc Plated/Springs: Black
- Reservoir: No

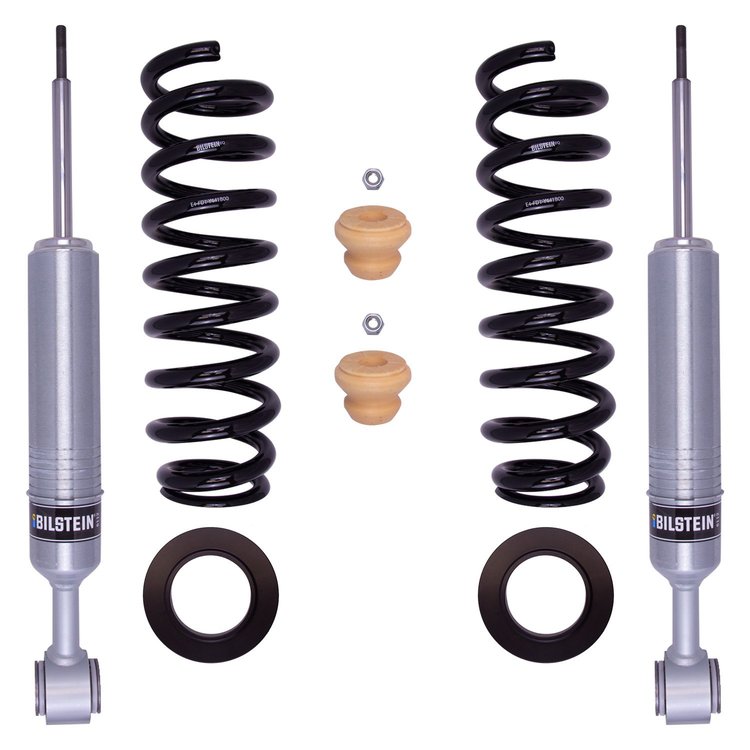

- Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
- Spring Seat Included: Yes
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter (ID): 60mm
47-310780 Suspension Kit Features:
Part TypeSuspension Kit
BrandBILSTEIN
Package Height5.31
Package Width13.63
Package Length32.56
Weight45.0 PG
Part CategoryPerformance Parts
SeriesB8 6112
Boot IncludedNo
Travel Length5.75 in.
Shaft Diameter18mm
Piston Diameter60mm
Extended Length22.36 in.
Collapsed Length (In)16.61 in.
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc/Black
Vendor Part NumberB547-310780
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
