The Elite Relay Board is capable of handling a 100 amp load with the supplied 6 gauge wire that connects from the high current connector on the Board to the master cut off switch. It also includes dedicated relays for each switch, with each relay including its own status indicator light to let you know which circuit is on, and a dedicated fuse assigned to it. The Elite Relay Board can handle up to 40 amps on any output or two outputs can be connected together for up to 80 amps. It also features an unswitched fused +12V output that can handle up to 40 amps. This output is also shut down when the panic button is pressed. The Elite Relay Power Board also features a Shift Output Controller. This can be selected to shift on time or RPM using a remotely mounted select switch.

Features:

• Dimensions: 8" x 4-3/8" x 1-3/4"
• Available black or chrome
• Easily fits in a dragster's dash or mount with optional roll bar mount p/n 376-1055-RBM.

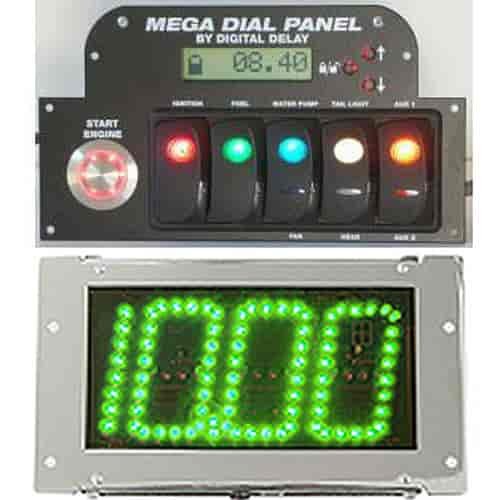

• Built-in dial controller powers a single or multiple V2 Dial Display Boards (sold separately)
• Switches: starter, ignition, fuel pump, fan/water pump, lights, Aux
• Ignition and fuel pump switches are 2-position
• Fan/water pump, lights, and Aux switches are 3-position
• Dual Select feature enables customization of 3-position switches
• Panel plugs into remote mount relay board with supplied cable
• Relay board capable of handling 100 amp load
• Dedicated relay, fuse, and status light for each switch
• Panic Button feature enables quick disconnect of car's power
• Wiring Kit included (color-coded wire, connectors, ties & diagram)
