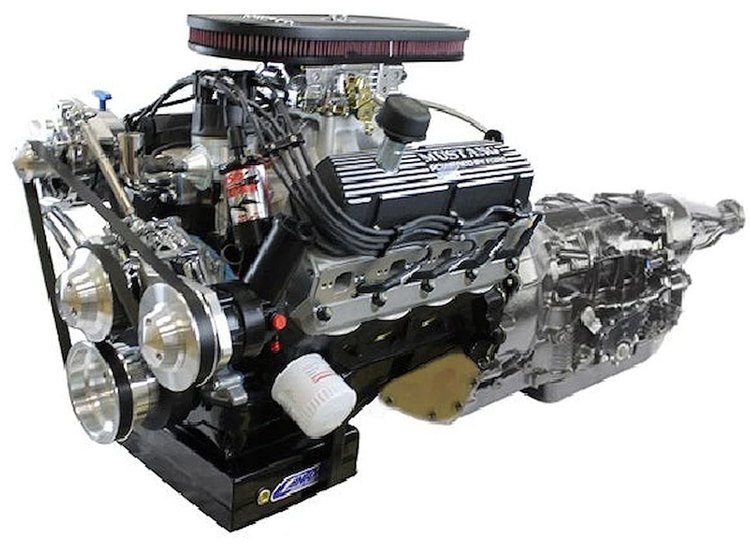

B347FKB4R7M Mustang Edition Ford Compatible, EFI, Black Kit
InfoVehicle Info Needed
BLUEPRINT ENGINESPART NUMBER: 138-B347FKB4R7M

B347FKB4R7M Mustang Edition Ford Compatible, EFI, Black Kit

$21,99900
Truck Freight
ShippingShips on 03/08/2027
Lowest PriceLowest Price Guarantee

Fuel Injected Engine and Transmission Package
  • 347 c.i. Ford Compatible
  • 415 HP / 415 lb-ft Torque
  • 10.0:1 Compression
  • 4R70W Automatic Transmission
  • BluePrint Engines HP9009 cylinder heads
  • Polished Pulley Kit Included
  • Dyno Tested

    This 347 c.i. Ford Compatible Builder Series engine and transmission package is rated at 415 horsepower and 415 lb-ft of torque. It is topped with BluePrint Engines HP9009 cylinder heads. The package pairs the engine with a 4R70W automatic transmission. Induction is a BluePrint Engines Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT with Holley Sniper 2 EFI System fuel injection.

    BluePrint Engines B347FKB4R7M Engine and Transmission Package Features:

    • 415 hp and 415 lb-ft of torque
    • 10.0:1 compression ratio
    • Camshaft: .543 Intake / .554 Exhaust Lift - 218 Intake / 226 Exhaust Duration [email protected] LSA
    • Forged pistons
    • Cylinder heads: BluePrint Engines HP9009 cylinder heads
    • Intake: BluePrint Engines Dual Plane Aluminum Intake Manifold - Square Bore - BPP302INT, Holley Sniper 2 EFI System
    • Transmission: 4R70W automatic
    • Pulley kit: Polished - BPP302FDACPS4BK

    BluePrint Engines B347FKB4R7M Installation Notes:

    • Recommended fuel: 91+ Octane
    • Timing: Initial Timing 10-16 - Total Timing 32-34
    • Firing order: 1,3,7,2,6,5,4,8
    • Recommended torque converter stall speed: 2000-2400 RPM
    • Recommended flexplate/flywheel: BPPF28164
    • Recommended harmonic balancer: BPP28
    • Engine balance: Externally Balanced - 28oz
    • Recommended spark plug: BPP7938 NGK 7938 BKR5E, gapped at .035
  • Part TypeEngine and Transmission Package
    BrandBLUEPRINT ENGINES
    Package Height30.0
    Package Width30.0
    Package Length60.0
    Weight750.0 PG
    Part CategoryPerformance Parts
    Spark Plug Wires IncludedYes
    Fuel Pump IncludedYes
    Air Cleaner IncludedYes
    Cylinder Heads IncludedYes
    Water Pump IncludedYes
    Harmonic Balancer IncludedYes
    QuantityEA
    Intake Manifold IncludedYes
    Transmission TypeManual
    Engine BalanceExternally Balanced - 28oz
    Compression Ratio10.0:1
    Oil Pump IncludedYes
    Transmission ModelTKX
    Rear Main Seal Style1 Piece
    Fuel Delivery TypeSniper II EFI - Fuel Injected
    Horsepower415
    Distributor IncludedYes
    Oil Pan IncludedYes-Front Sump
    Part FitmentSemi Universal
    Timing Cover IncludedYes
    Spark Plugs IncludedYes
    Intake Manifold TypeDual Plane, Satin Aluminum
    Vendor Part NumberB347FKB4R7M
    Package Qty1
    Package TypeEA
